Product Introduction

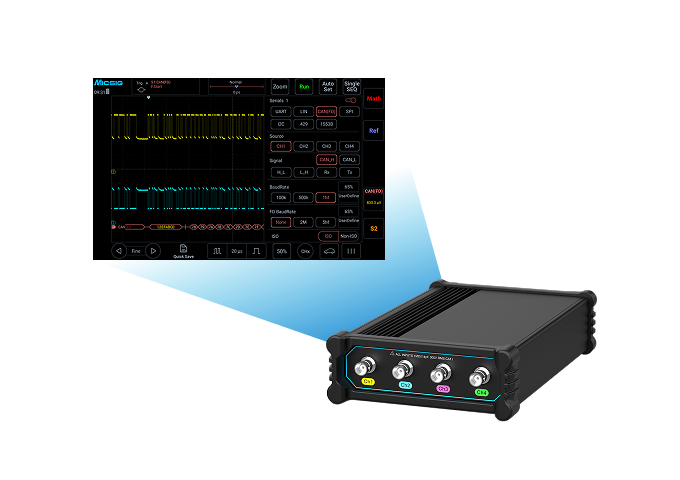

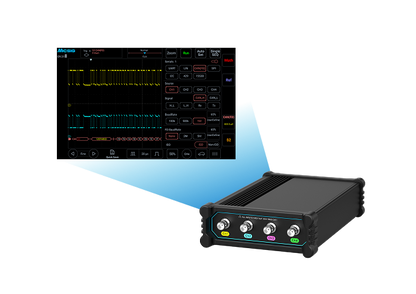

Ultimate Portability Install and run the oscilloscope Apk on any Android devices: smartphone, tablet, or Android PC, all signals on your fingertip. Intuitive Operation Equipped with a operating system designed for mobile devices, offering extremely simple and reliable performance. Large Battery Powered 7500mAh lithium battery (optional) enables up to 24-hour field testing, power-off lock make sure secured transport. Circuits Charging/Starting System Testing, including 12V / 24V charging/starting circuit, charging ripples, and other related tests. Sensor Various automotive sensor tests: ABS, throttle pedals, intake pressure, air flow meter, crankshaft, camshaft, knock, distributor, oxygen sensor... Actuators Support various actuator tests: fuel injector voltage and current, fan control signals, variable valve timing, carbon canister solenoid valve, EGR solenoid valve, etc.
Specifications
| Model | VATO2004 |
| Bandwidth | 200MHz |
| Analog Channels | 4 |
| Rise Time | ≤1.75ns |
| Real-time Sampling Rate | 1GSa/s |
| Memory Depth | 50Mpts |
| DC Gain Accuracy | ≤ 2% |
| Vertical Resolution | 8bit |
| Input Impedance | 1MΩ±1% || 15pF |
| Power Supply | DC 12V |
| Support Testing | Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, LIN, Flexray, K line), Combination Tests |
| Battery (Optional) | 7.4V, 7500mAh lithium-ion battery |
| Dimensions | 140*215*52mm |
| Net Weight | 640g |
