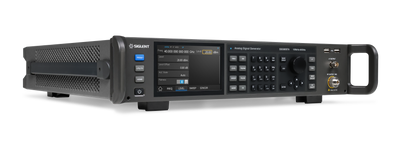

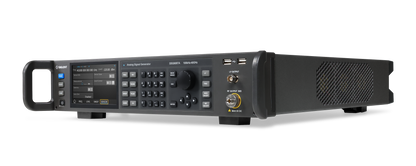

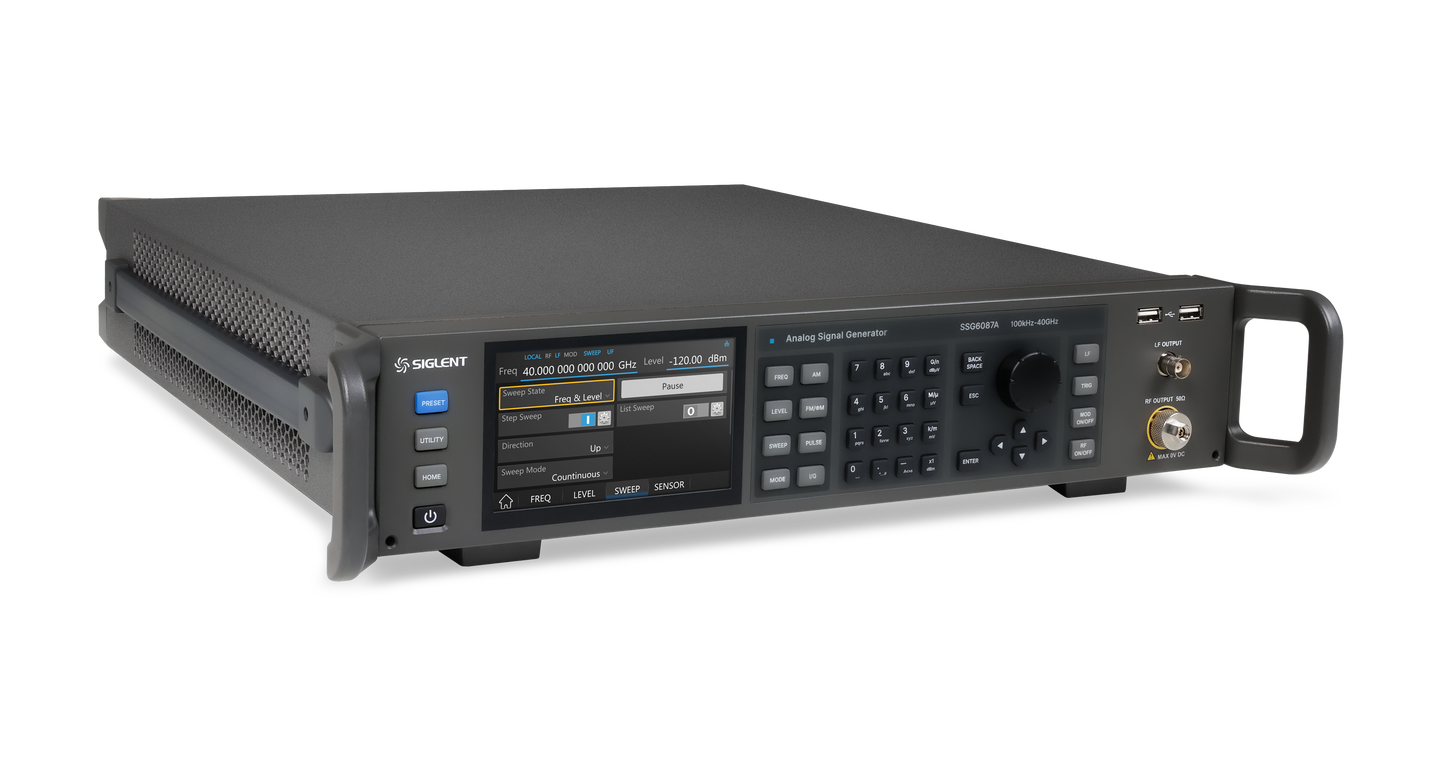

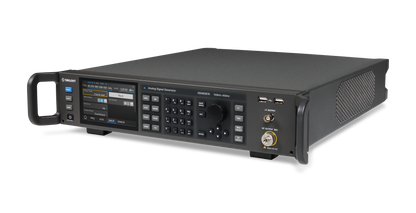

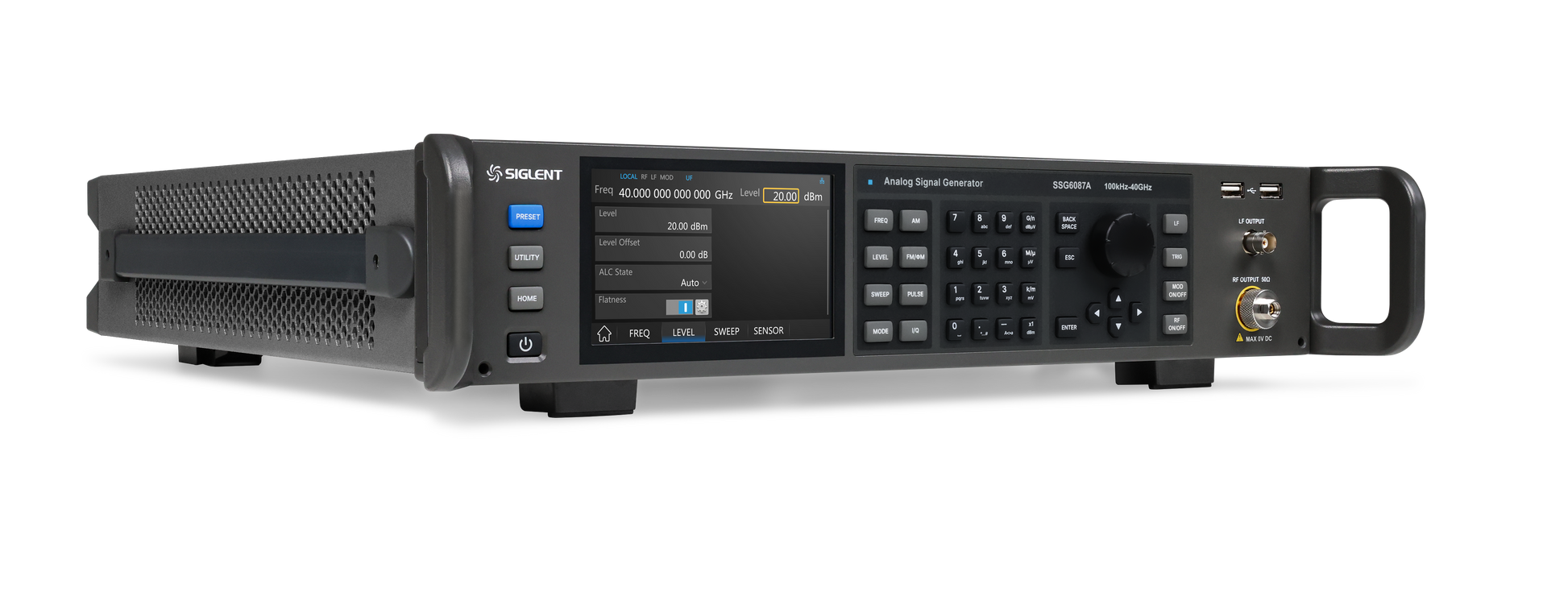

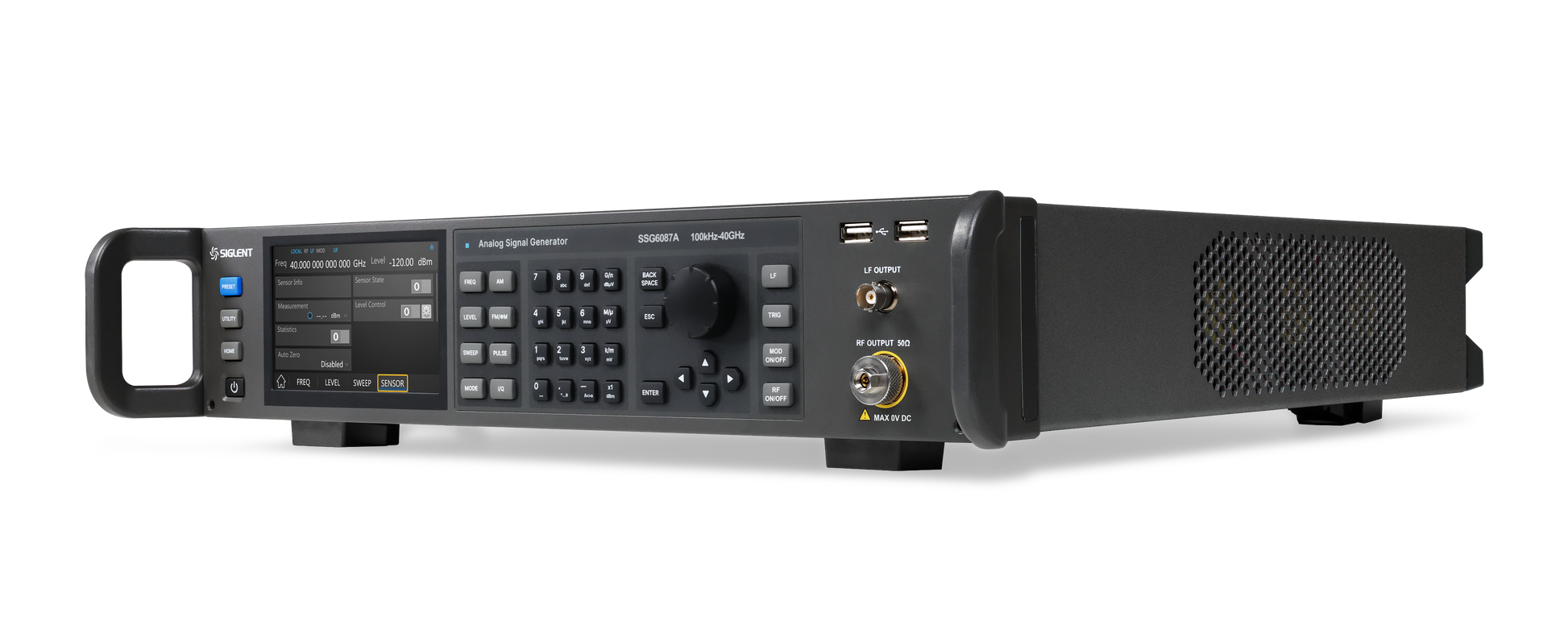

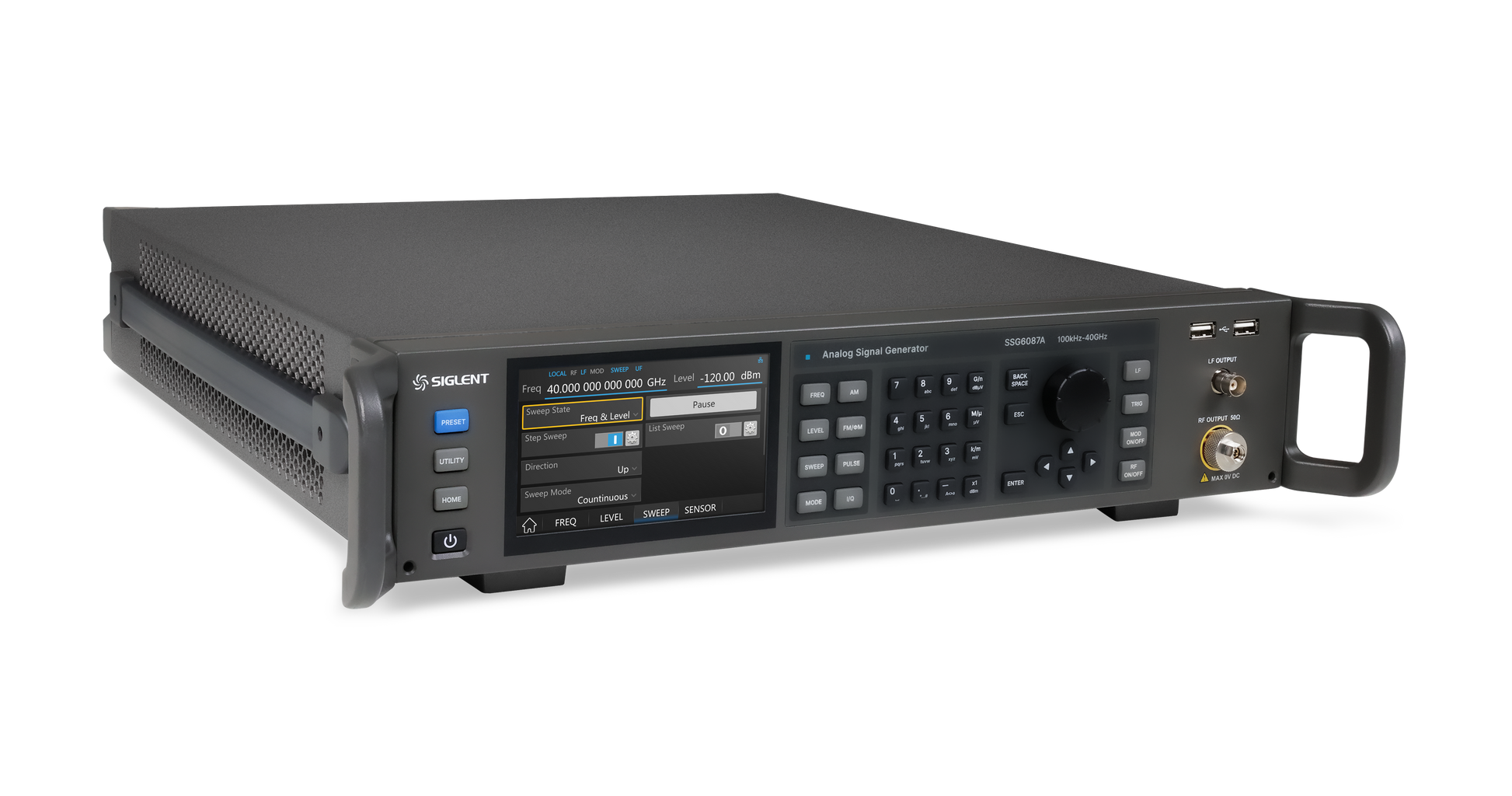

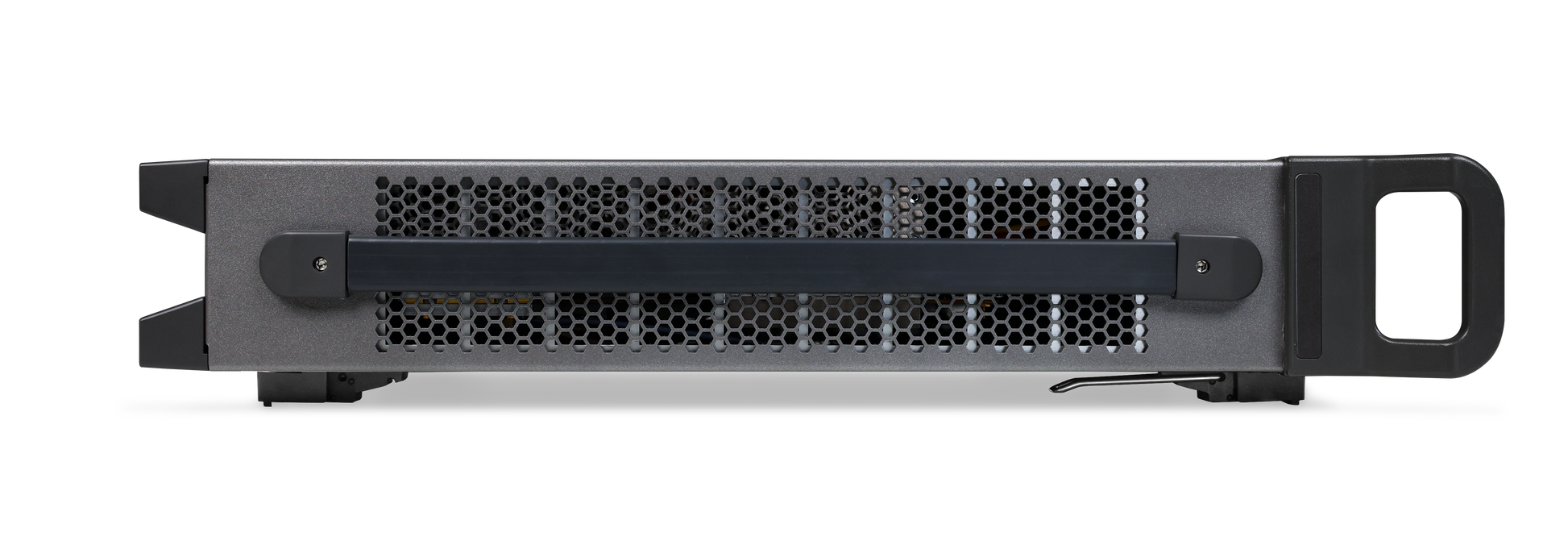

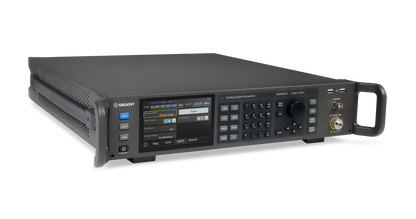

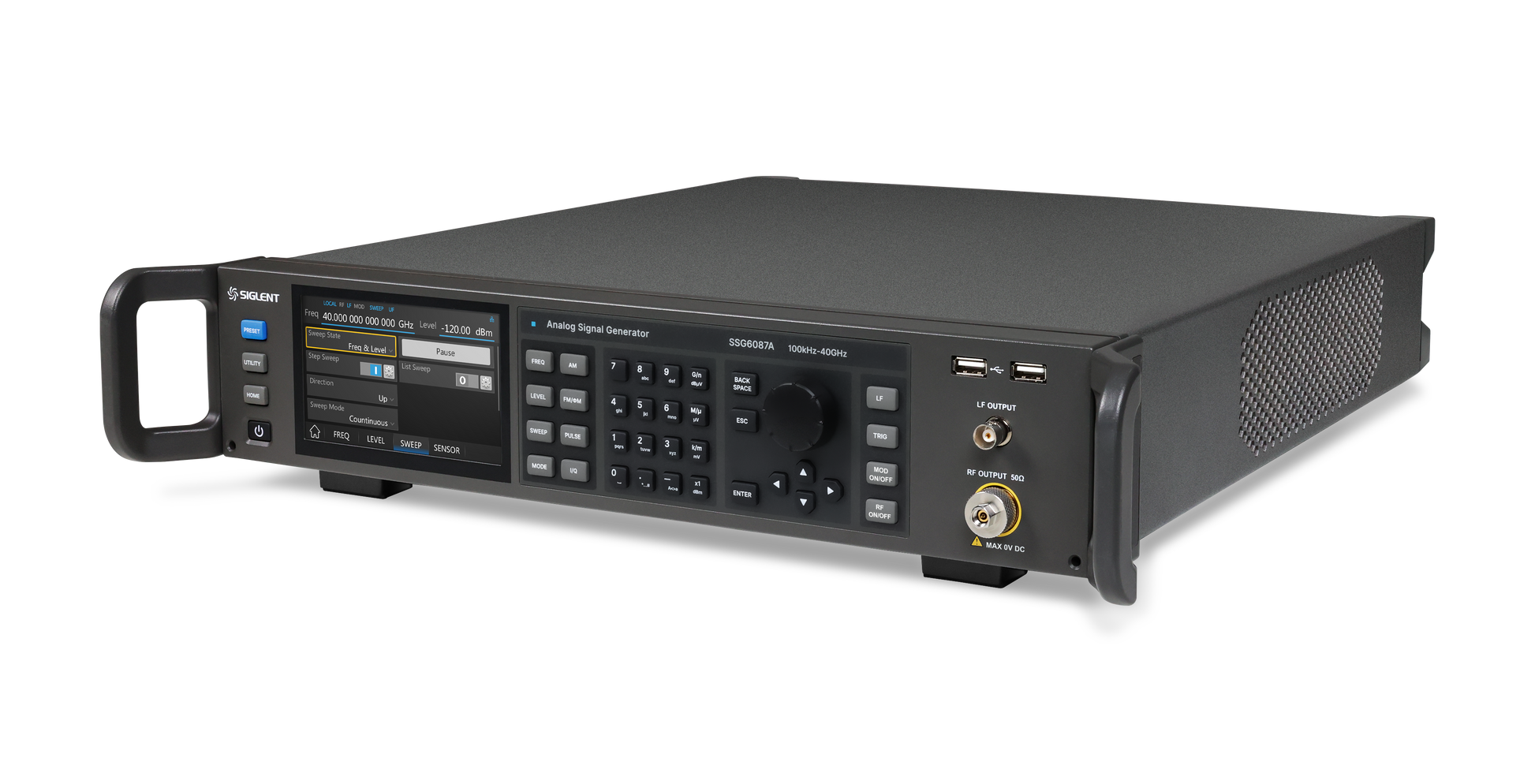

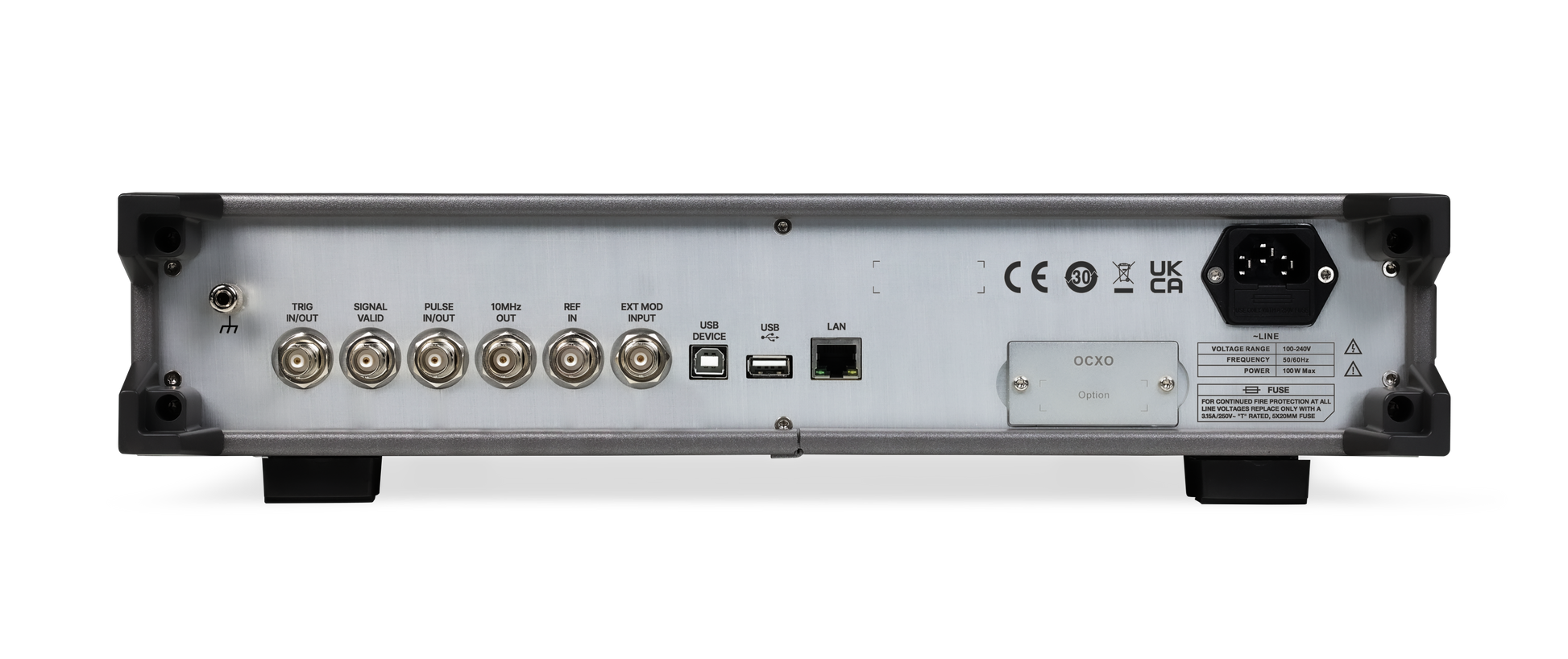

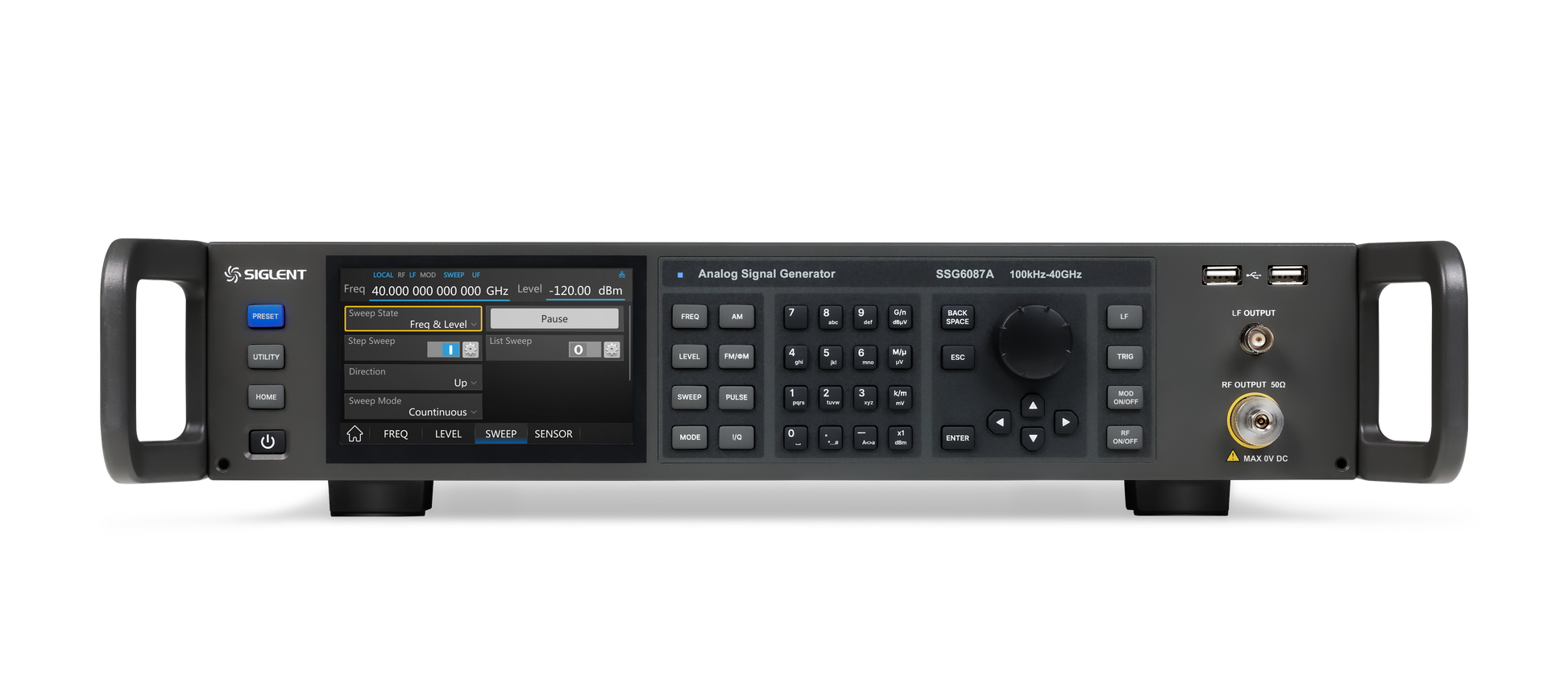

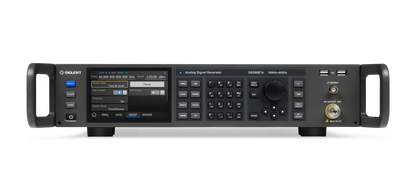

SSG6000A

The SSG6000A is designed to provide high performance signal quality that meets the stringent requirements of the latest microwave and millimeter wave testing while extending customer value in size, speed, and cost. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is not only an ideal local oscillator and clock source, but also a high-performance analog signal source suitable for applications in R&D and production. <

Typical applications include R&D, production test, and education where automated remote control (USB/LAN and SCPI) and a clear front-panel workflow matter. Optional software and accessories extend analysis for the roles listed on the official product page.

• Frequency up to 13.6 GHz/20 GHz/40 GHz
• Level setting range：-130 dBm ~ +24 dBm
• Output Frequency Resolution：0.001 Hz
• Level error ≤ 0.7 dB (typ.)
• Standard AM/FM/PM modulation
• <Phase Noise: -135 dBc / Hz @ 1 GHz, 10 kHz offset (typ.)
