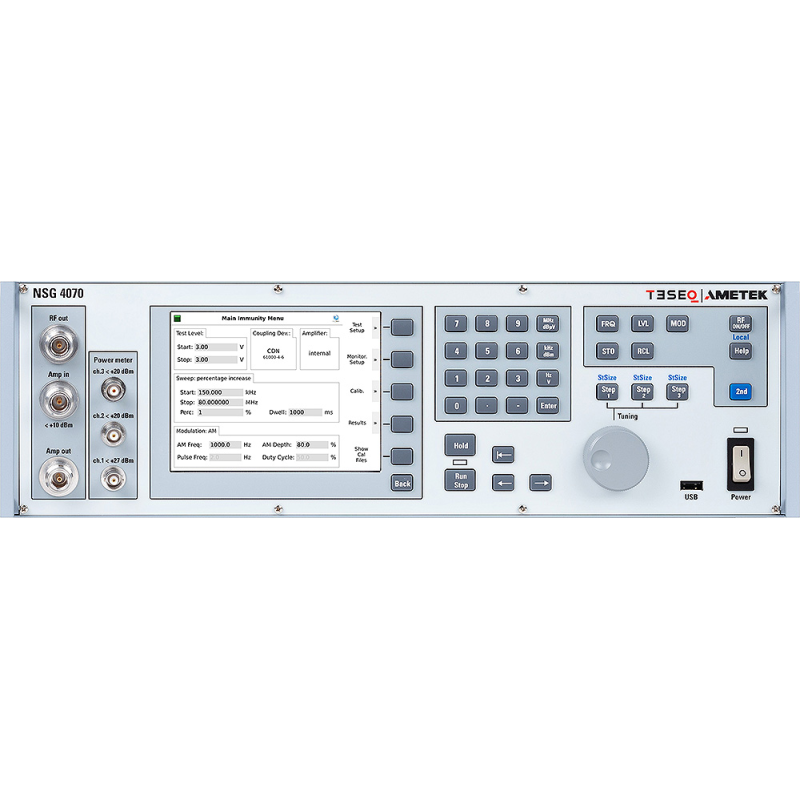

NSG 4070C2 Conducted and Radiated Immunity Test System
The NSG 4070 is a multi-functional device for carrying out EMC immunity tests to accompany development and conformity testing in accordance to IEC / EN 61000-4-6, Namur and several automotive BCI standards. Anyone who spends a considerable amount of time on test level setting, connecting EUT monitoring or writing test reports can now carry out immunity testing in a much more efficient manner with the 5th generation of NSG 4070.
Its modular set-up using internal or external amplifiers enables a large variety of applications. The powerful and easy to use firmware makes the NSG 4070 independent from an external PC and control software, however it can also be remote controlled for system operation. A state-of-the-art data transfer of test and measurement data for documentation is provided by USB stick to be plugged into the front panel. Select the required amplifier configuration using the Model option.
Key Features
- Integrated signal generator 4 kHz to 1 GHz
- 3 power meter inputs 4 kHz to 1 GHz
- Integrated class A power amplifier module: 35 W / 80 W (150 kHz – 230 MHz), 45 W (9 kHz – 1 GHz), 60 W / 110 W (10 kHz – 400 MHz)
- Multiple EUT monitoring options
- 5.7” TFT color display
- Internal, menu-based control software
- Basic remote control software and report generator included
- Optically decoupled remote control
- Whisper mode
Models
| Model | Description | Amplifier Frequency Range |
|---|---|---|
| NSG 4070C2-0 | Generator and power meter, without power amplifier | 4 kHz – 1 GHz |
| NSG 4070C2-35 | With 35 W amplifier module | 150 kHz – 230 MHz |
| NSG 4070C2-45 | With 45 W amplifier module | 9 kHz – 1 GHz |
| NSG 4070C2-60 | With 60 W amplifier module | 10 kHz – 400 MHz (>10 W at 4 kHz) |
| NSG 4070C2-80 | With 80 W amplifier module | 150 kHz – 230 MHz |
| NSG 4070C2-110 | With 110 W amplifier module | 10 kHz – 400 MHz (>10 W at 4 kHz) |
Standards: IEC 61000-4-3, IEC 61000-4-6, IEC 61000-4-20, IEC 61000-4-21, IEC 62132, IEC 61326-3-2, ISO 7637-4, ISO 11452-4, MIL-STD-461, RTCA DO-160
Frequency range: 4 kHz – 1 GHz
