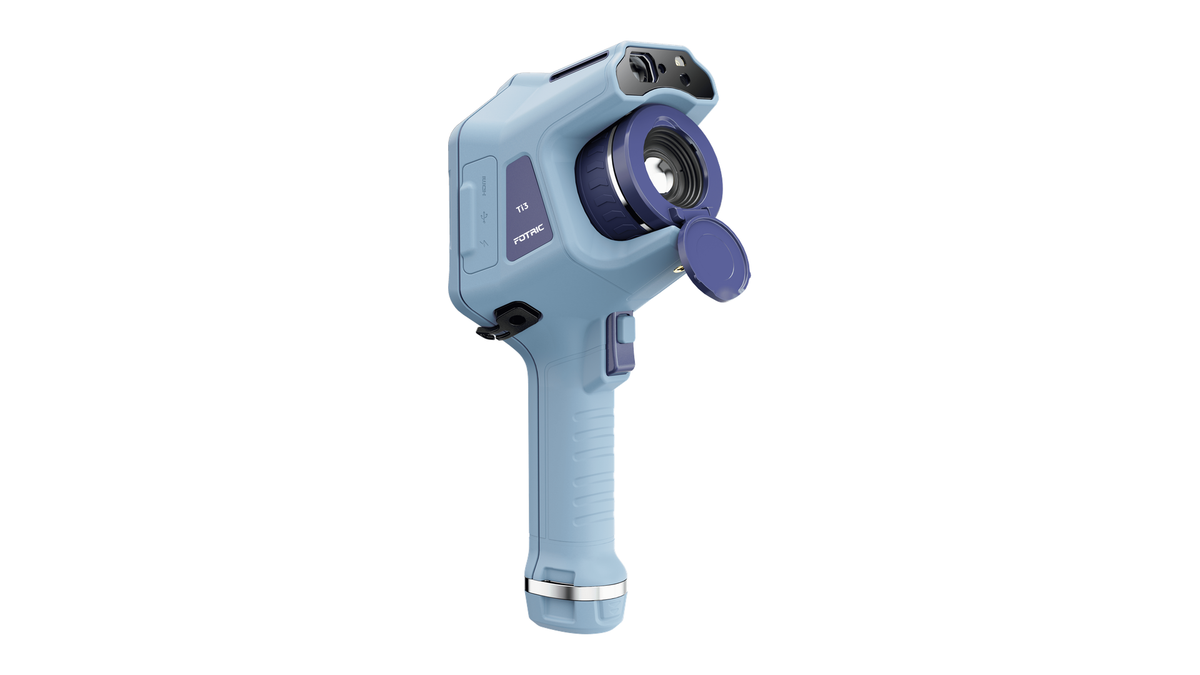

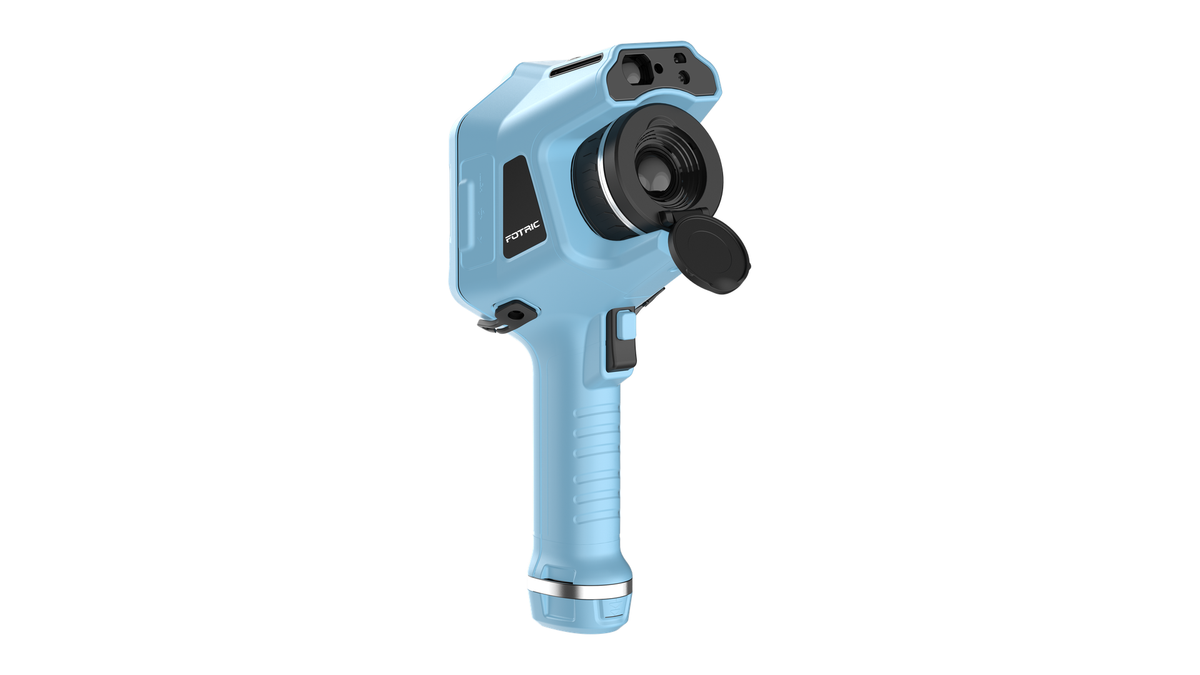

Ti Series Advanced SharpView Thermal Camera
Scaling excellence: top-tier thermal imaging at a ground-level price. The FOTRIC Ti series Advanced SharpView thermal cameras combine up to 640 × 480 IR resolution with the TurboFocus® intelligent focus system – thermal-contrast AF, laser-assisted AF, continuous AF, touch AF and manual focus – for fast, accurate and quiet focusing, with thermal and digital images seamlessly aligned for precise analysis.
A high-precision laser rangefinder measures distances up to 50 m and automatically calculates areas and lengths within the thermal image, ideal for building inspections and heat-loss assessment of large equipment. With 2 m drop resistance, IP54 protection, a 5-inch touchscreen and AnalyzIR® reporting software, the Ti series is built for professional electrical, mechanical, HVAC, building and industrial inspections.
Key Features
- IR resolution up to 640 × 480 (Super Resolution up to 1280 × 960 on Ti7)
- Thermal sensitivity down to <30 mK (Ti7)
- Temperature range -20 ~ 650 ℃ with intelligent range; accuracy ±2 ℃ or ±2 %
- TurboFocus® system: thermal-contrast, laser-assisted, continuous and touch AF, plus manual focus
- Laser-assisted distance, area and length measurement (0.1–50 m)
- T-TWB® histogram temperature representation and IREdge® contour enhancement
- 5-inch 1280 × 720 touchscreen; 8 MP industrial digital camera; LED torch / flash
- On-device analysis with bookmarks; AnalyzIR® batch processing and instant reports
- Micro SD 64 GB, expandable up to 1 TB; Wi-Fi, Bluetooth, USB-C, Micro HDMI
- 7.4 V 3500 mAh battery (≥4 h); IP54, 2 m drop resistant, 1.0 kg
Models
| Model | IR Resolution | Thermal Sensitivity (NETD) | FOV / IFOV | Temperature Range | Accuracy |
|---|---|---|---|---|---|

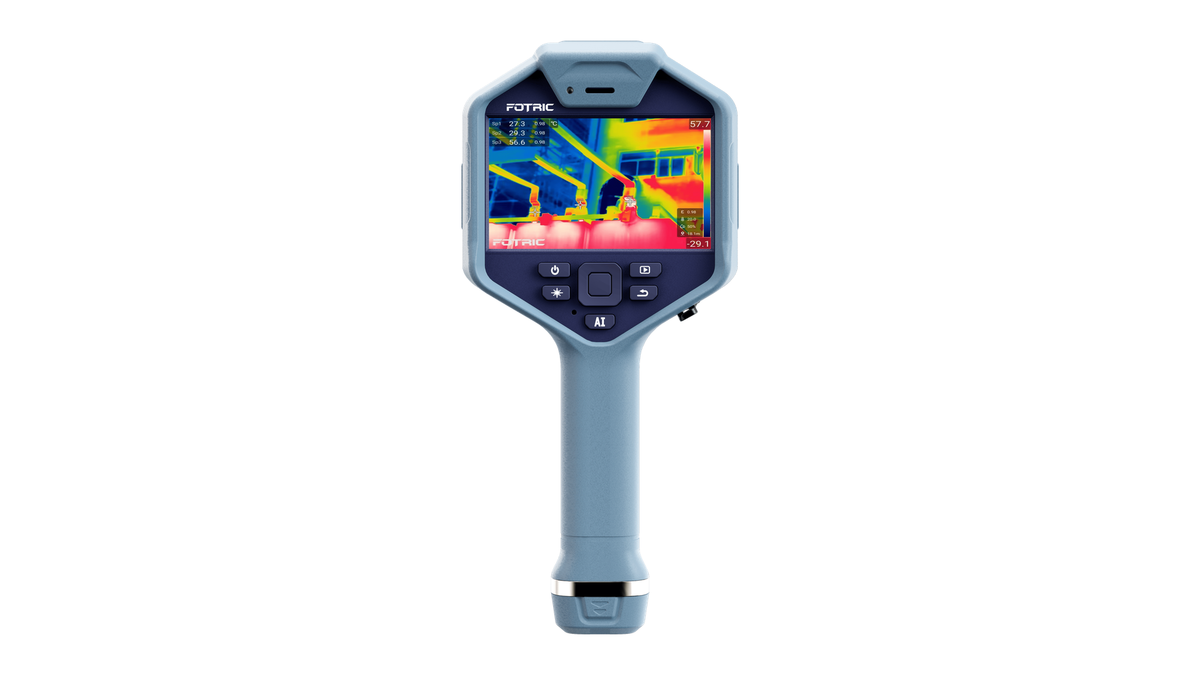

| Ti3 | 160 × 120 | <50 mK @30 ℃ | 25° × 19° | -20 ~ 650 ℃ | ±2 ℃ or ±2 % |
| Ti4 | 320 × 240 | <40 mK @30 ℃ | 44° × 33° | -20 ~ 650 ℃ | ±2 ℃ or ±2 % |

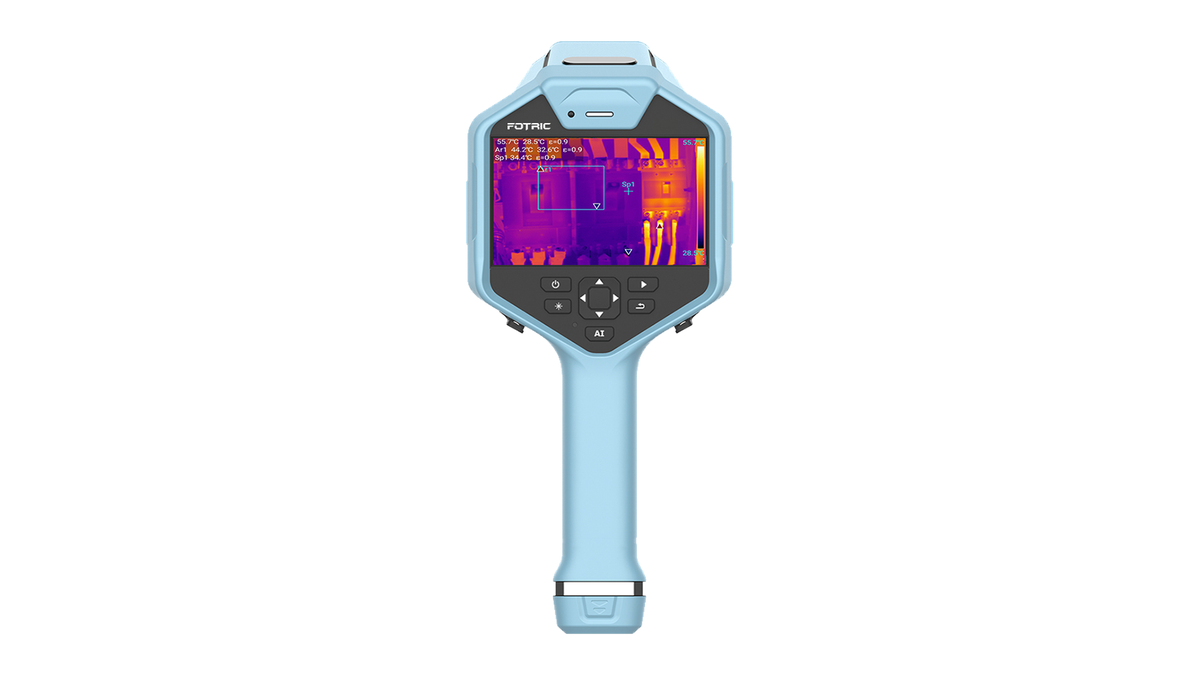

| Ti5 | 384 × 288 (SR 768 × 576) | <40 mK @30 ℃ | 2.0 mrad | -20 ~ 650 ℃ | ±2 ℃ or ±2 % |

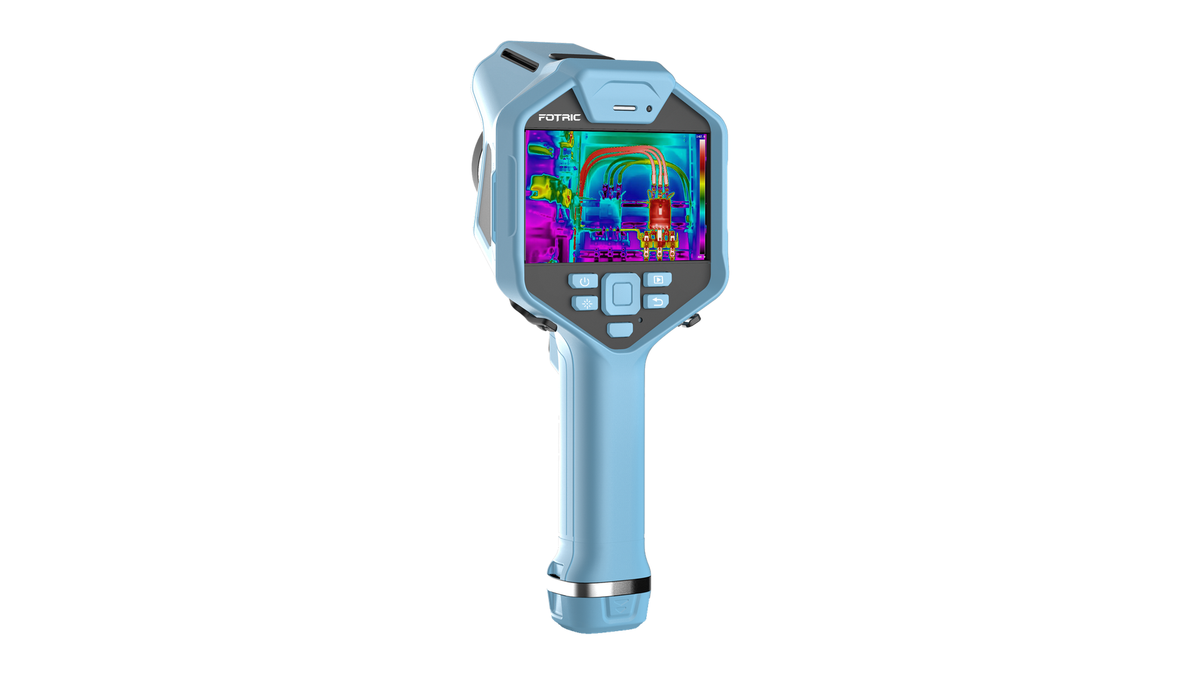

| Ti7 | 640 × 480 (SR 1280 × 960) | <30 mK @30 ℃ | 44° × 33° / 1.2 mrad | -20 ~ 650 ℃ | ±2 ℃ or ±2 % |
The attached datasheet is the official FOTRIC Ti Series catalog (Ti7 / Ti5). Ti3 and Ti4 datasheets are available on request.
