220Pro Series R&D Thermal Camera
FOTRIC R&D thermal cameras are the preferred choice of professors and scientists from 500+ universities and research institutes worldwide, utilized in research experiments and featured in publications in top SCI journals.

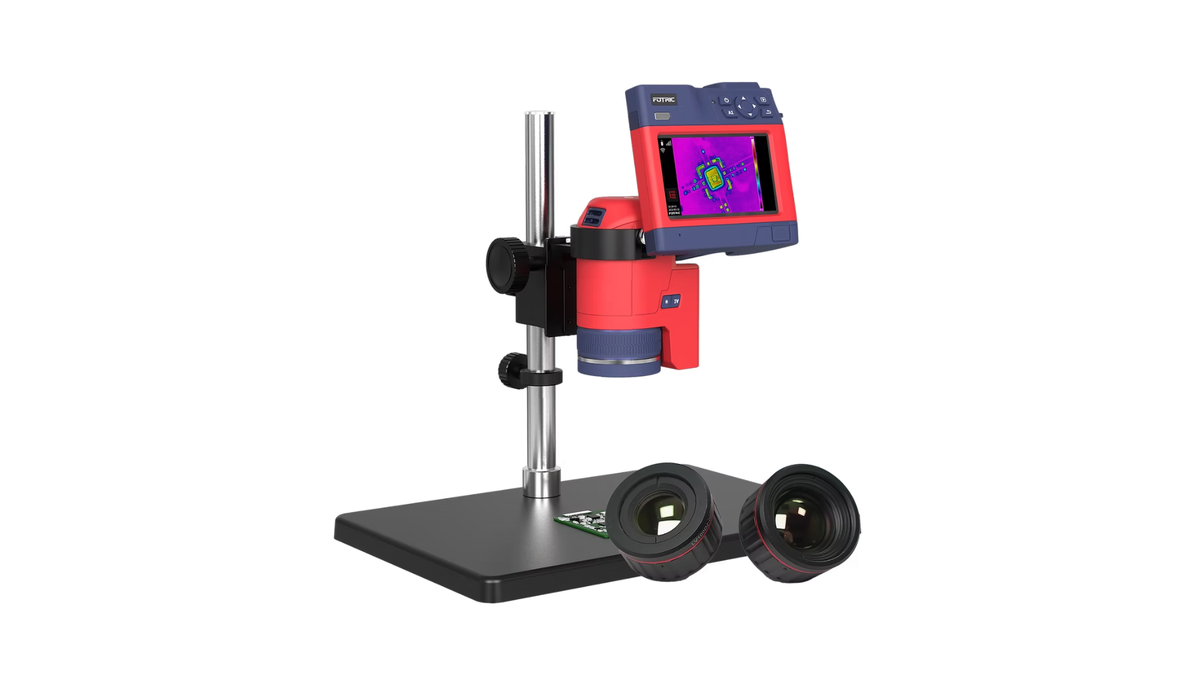

The FOTRIC 220Pro series of high-performance R&D thermal cameras is designed for precision in research and development. Offering IR resolution up to 1280 × 1024, measurement accuracy of ±1 ℃ or ±1 % and thermal sensitivity down to 30 mK, it captures even the smallest thermal variations. Ideal for detailed microscopic imaging with 20 μm, 50 μm and 100 μm macro lenses, the 220Pro excels in fields such as electronics, medical research and materials science, while its user-friendly interface, comprehensive on-device analysis and versatile test bench make it an essential asset for any research lab.
Key Features
- IR resolution up to 1280 × 1024, with Super Resolution support
- Thermal sensitivity down to <0.03 ℃ @30 ℃ (30 mK)
- Measurement accuracy up to ±1 ℃ or ±1 % (0–100 ℃ range)
- Interchangeable 20 μm / 50 μm / 100 μm macro lenses and 46° wide-angle lens with automatic lens recognition
- TurboFocus™ system: continuous, laser-assisted, thermal-contrast and touch AF, plus manual focus
- Temperature range -20 ~ 650 ℃ with intelligent range
- State-of-the-art imaging algorithm, high EMC compatibility
- 5-inch 1280 × 720 display, 5 MP + 13 MP digital cameras
- 30 Hz radiometric stream; AnalyzIR professional analysis software and IRExplorer remote control
- 3.6 V 10000 mAh Li-ion battery, over 4 hours per battery
Models
| Model | IR Resolution | Thermal Sensitivity (NETD) | Standard Lens FOV / IFOV | Optional Lenses | Frame Rate | Temperature Range | Accuracy |
|---|---|---|---|---|---|---|---|
| 226Pro | 384 × 288 | 40 mK @30 ℃ | 25° × 19° / 1.14 mrad | 46° wide-angle; 50 μm & 100 μm macro | 30 Hz | -20 ~ 650 ℃ | ±2 ℃ or ±2 % |
| 228Pro | 640 × 480 | 30 mK @30 ℃ | 25° × 19° / 0.68 mrad | 46° wide-angle; 20 μm & 50 μm macro | 30 Hz | -20 ~ 650 ℃ | ±1 ℃ or ±1 % (0–100 ℃) |
| 229Pro | 1280 × 1024 | 30 mK @30 ℃ | 25° × 20° / 0.34 mrad | 46° wide-angle; 50 μm macro | 30 Hz | -20 ~ 650 ℃ | ±1 ℃ or ±1 % (0–100 ℃) |
Datasheets for the 226Pro, 228Pro and 229Pro are available on request.
