Product Features

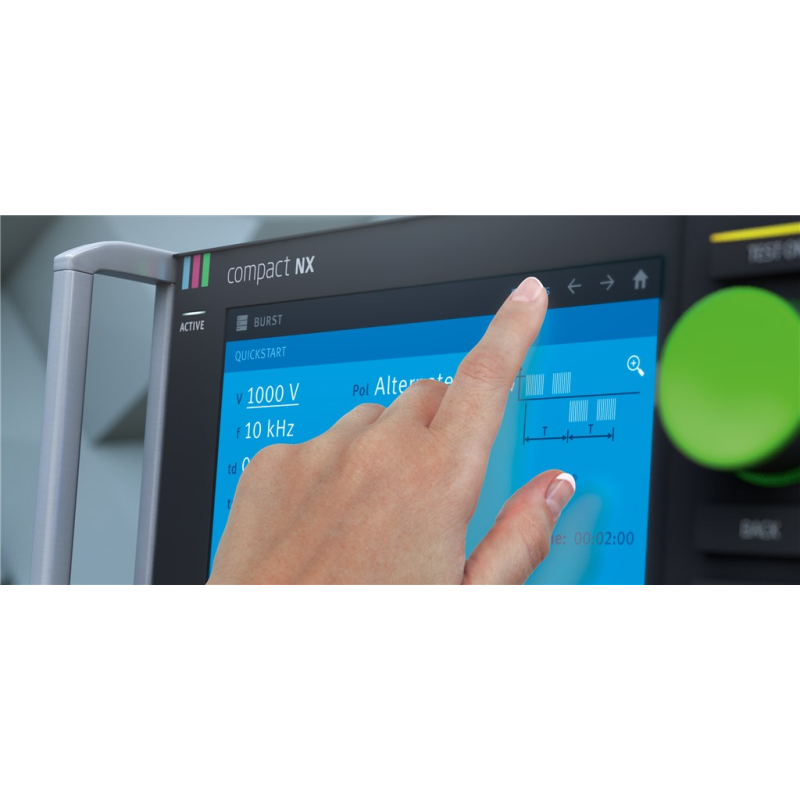

Smallest compact generator with 7" touch screen
Burst 5.5 kV, Surge 5.0 kV and Power Fail
Built-in single phase CDN 400 V/32 A
Manual front panel operation with setup pictures
Separate key for START/STOP operation with LED
Monitor outputs for peak voltage and current
Opto-Link and Ethernet for remote control
Control of external three-phase couplers

Standards: IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-11, IEC 61000-4-29

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

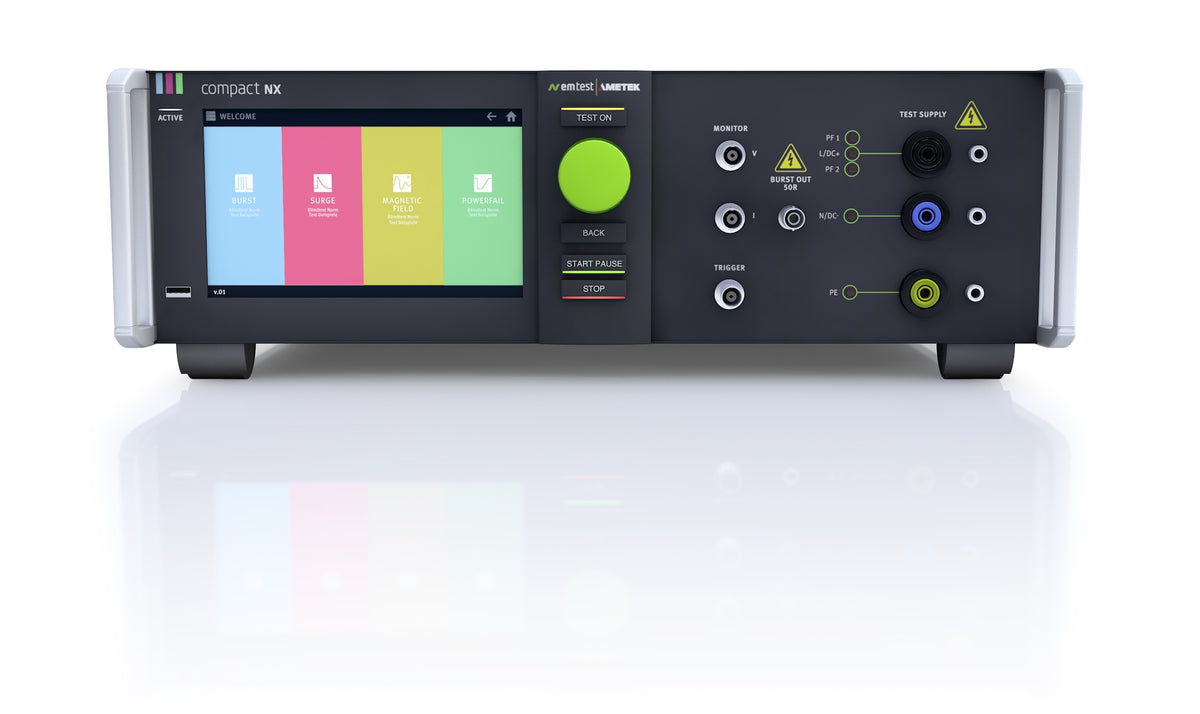

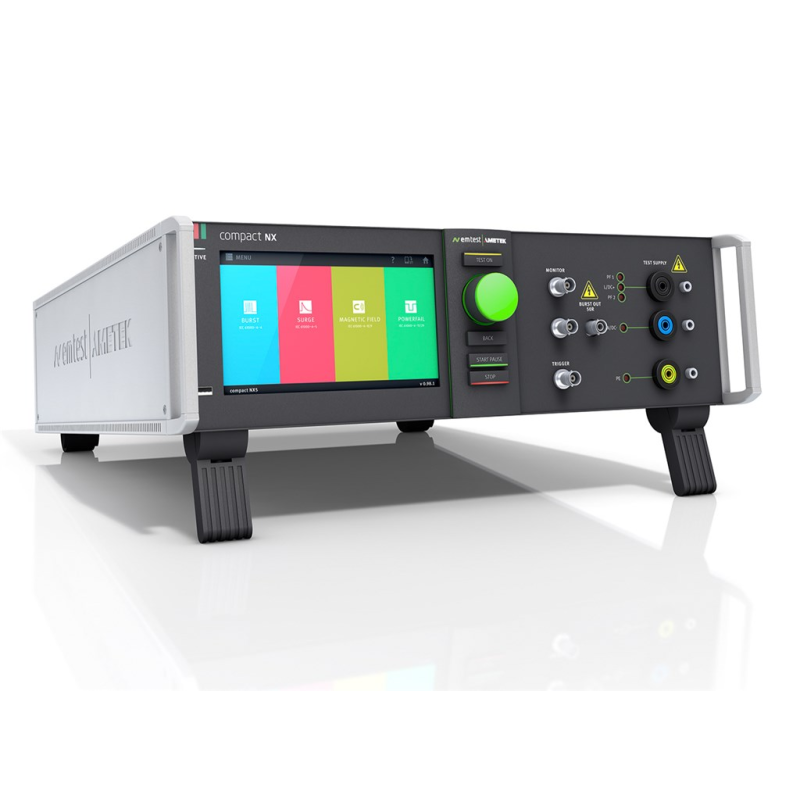

AMETEK CTS / EM TEST compact NX5

Name: AMETEK CTS compact NX5
Brand: AMETEK CTS
Availability: InStock

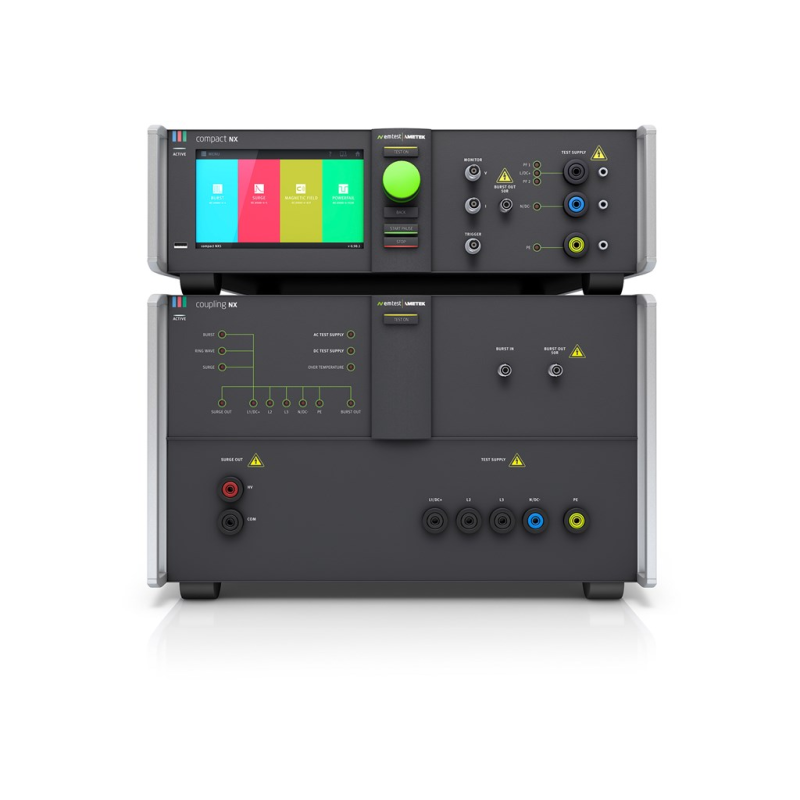

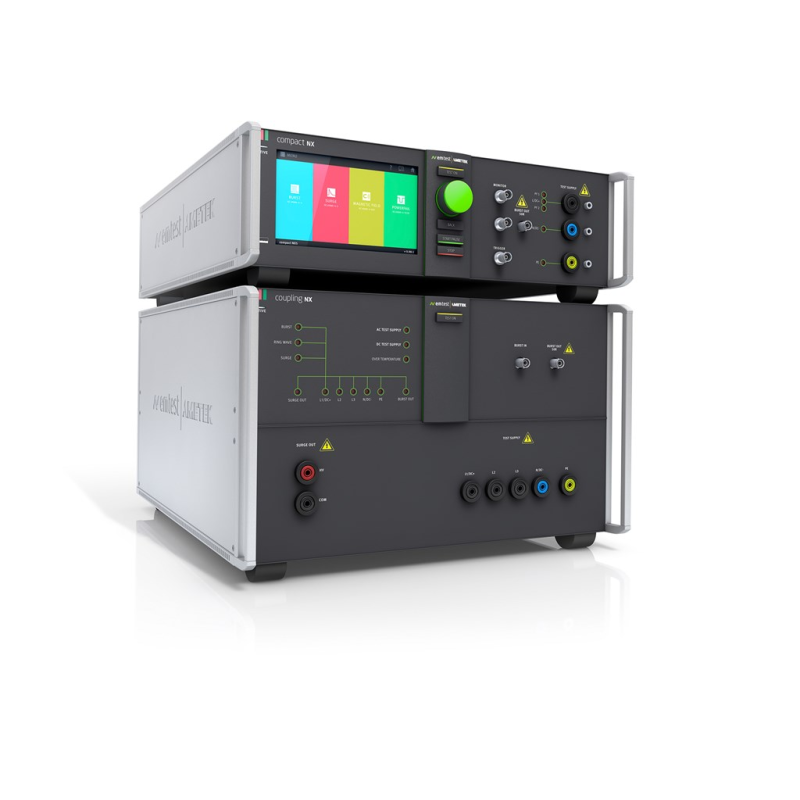

The compact Next Generation NX5 is the most versatile tester to address transient and power fail requirements for both international and commercial standards. Featuring an easy-to-use color touch screen, the NX5 provides an economical solution for pre-compliance immunity testing as well as full-compliance testing and CE Marking. Its internal single-phase Coupling/Decoupling Network (CDN) can be extended for testing three-phase EUTs by means of an automatically controlled external CDN up to 200 A per phase. EM TEST supplies a large range of accessories for various applications such as magnetic field tests and more.
