APx555B Audio Analyzer
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

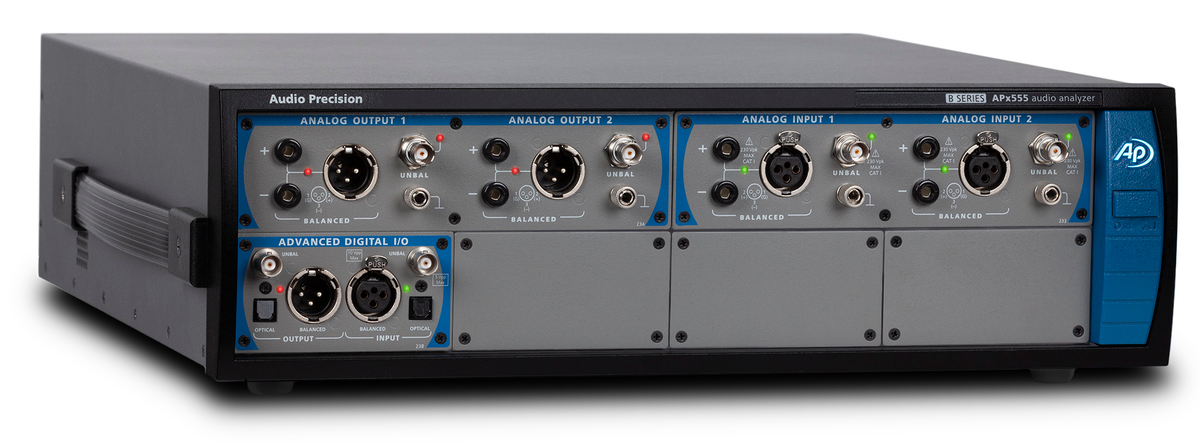

APx555B Audio Analyzer
Developed for R&D engineers and production technicians who need the highest possible performance, a broad range of digital I/O options and fast, intuitive software, the Audio Precision APx555B is the standard for audio analyzers. With a typical residual THD+N of −120 dB and over 1 MHz bandwidth, the APx555B surpasses the analog performance of all other audio analyzers, including a 5 dB improvement compared to the legacy 2700 Series analyzer.
APx555B has two balanced and two unbalanced analog inputs and outputs plus digital inputs and outputs via AES/EBU, TOSLINK and S/PDIF. I/O may be expanded with optional Programmable Serial, HDMI2 + eARC, PDM and Bluetooth modules. The Advanced Master Clock (AMC) module comes standard, synchronizing the analyzer with external equipment and enabling jitter generation and analysis.
Key Features
- Typical residual THD+N < −120 dB (1 kHz, 2.0 V)
- Analog bandwidth > 1 MHz
- FFTs up to 1.2 M points (1248K) with full 24-bit resolution
- 2 balanced + 2 unbalanced analog inputs and outputs; AES/EBU, TOSLINK and S/PDIF digital I/O
- Advanced Master Clock (AMC) standard: clock sync, jitter generation and analysis

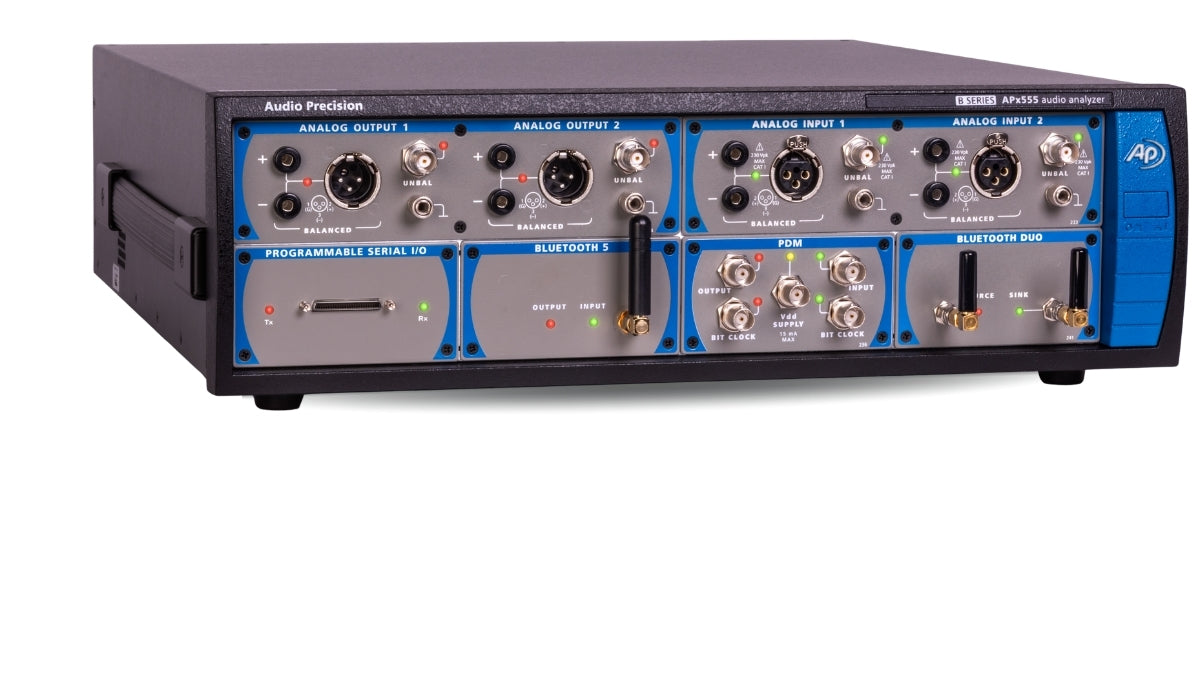

- Optional modules: Bluetooth 5 / LE Audio, Bluetooth Duo, PDM, PDM 16, Programmable Serial I/O, HDMI2 + eARC
- Optional ADC Test Mode (SW-555ADCTEST), electro-acoustic, POLQA, ABC-MRT and STI software options
- APx500 software: code-free automation and complete API (VB.NET, C#, MATLAB, LabVIEW, Python)
Key Specifications
| Sine frequency range | 0.001 Hz to 80 kHz (DAC); 5 Hz to 204 kHz (analog) |
| Frequency accuracy | 3 ppm (DAC); 30 ppm (analog, Precision Tune) |
| Maximum amplitude (balanced) | 26.66 Vrms |
| Amplitude accuracy | ±0.03 dB |
| Generator flatness (5 Hz–20 kHz) | ±0.008 dB |
| Residual THD+N (22 kHz BW) | −117 dB + 1.0 µV; typically < −120 dB (1 kHz, 2.0 V) |
| Analog output configurations | Unbalanced, balanced (differential & single-ended), CMTST |
| Digital output sampling rate | 27 kS/s to 200 kS/s (27 kS/s to 108 kS/s optical) |
| ADC test VBias range | −0.4 to +4.2 VDC |
| Maximum rated input voltage | 230 Vpk |
| Maximum bandwidth | > 1 MHz |
| IMD measurement | SMPTE, MOD, DFD, DIM |
| Analyzer flatness (10 Hz–20 kHz) | ±0.008 dB |
| Residual input noise (22 kHz BW) | 1.0 µV |
| Individual harmonic analyzer | H2–H10 |
| Max FFT length | 1248K points |
| DC voltage measurement | Yes |
Datasheet available on request.
