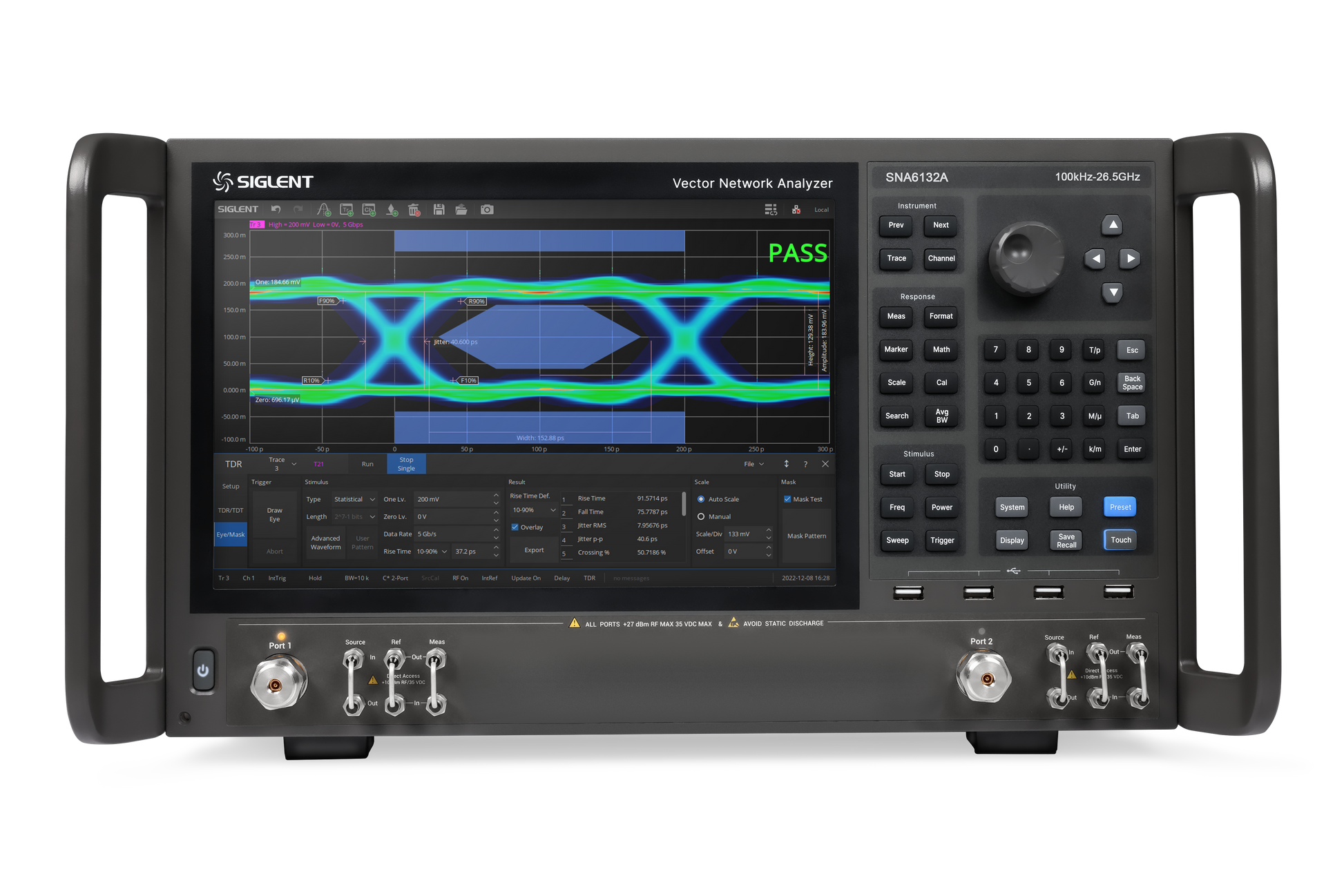

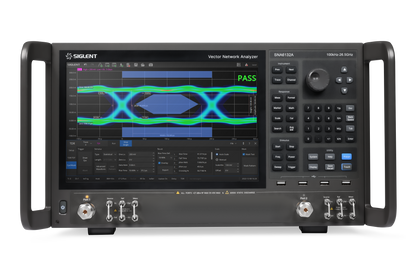

SNA6000A

SNA6000A series is a high-end vector network analyzer of Siglent Technology, which has a measuring frequency as high as 26.5 GHz and supports comprehensive measurement of 4-port S parameters. Its powerful differential measurement and time domain analysis capabilities make it stand out in the test of high frequency devices. Support a variety of calibration methods and limit test functions to ensure the accuracy and reliability of measurement results.

High dynamics enable more precise and reliable measurements, which is of great importance in research, development and production. The SNA6000A impresses with a dynamic range of over 135 dB, which makes it ideal for the detailed analysis of weak signals, even when they occur alongside stronger signals. This makes the analyzer ideal for measuring filters with low insertion loss and high stopband attenuation. In addition, high dynamics help to minimize signal distortion, which improves signal integrity.

• Frequency Range：100 kHz~26.5 GHz
• Dynamic Range：135 dB
• Range of IFBW：1 Hz~10 MHz
• Setting range of output level：-60 dBm ~ +20 dBm
• 4-port models include standard second source
• Jumpers / DRA (Source, Ref and Meas) standard on SNA61xxA models
