Product Introduction

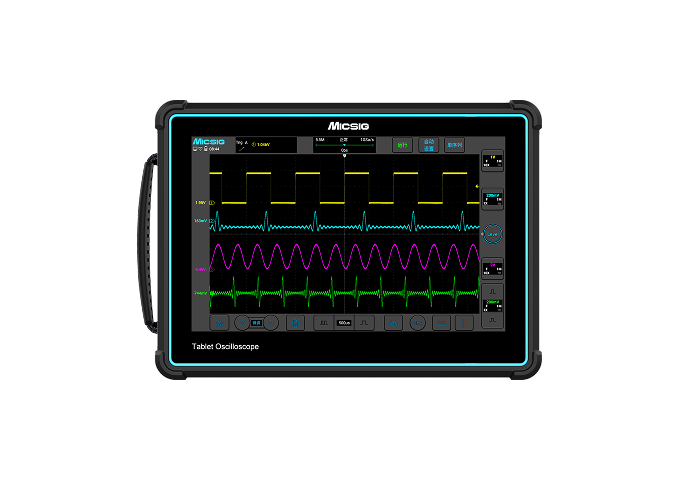

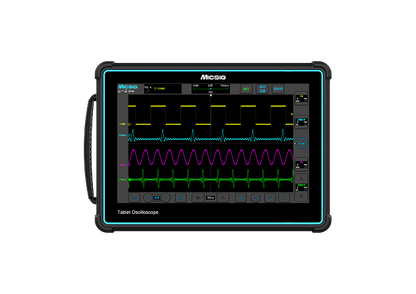

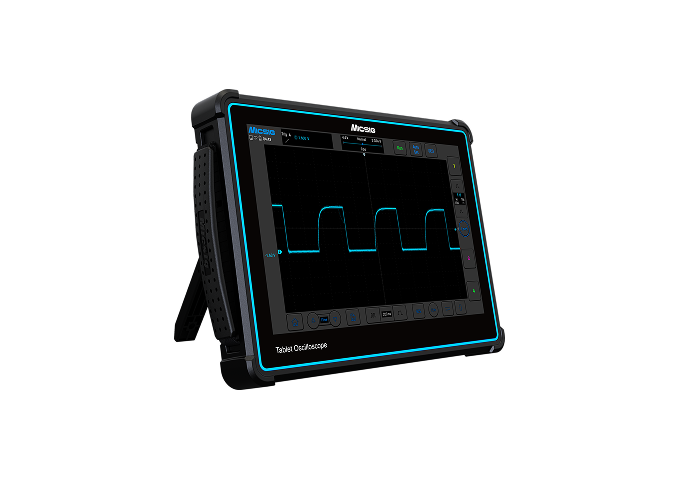

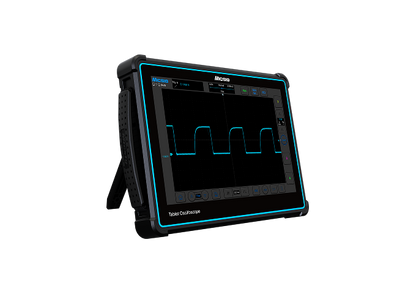

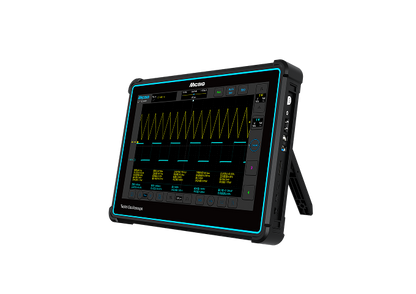

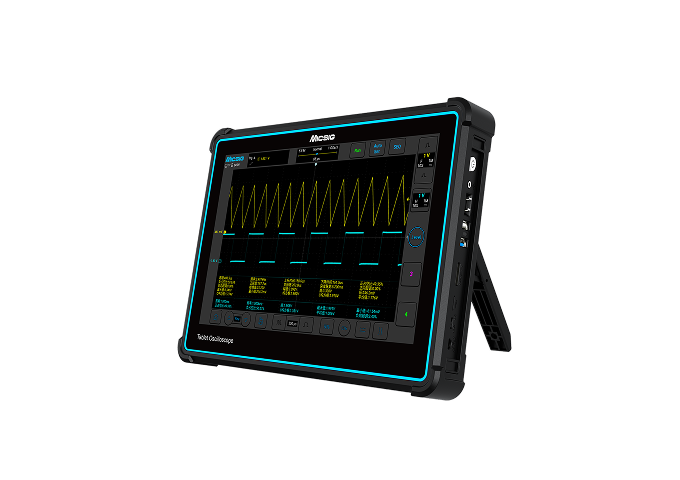

The TO series of tablet oscilloscopes is a professional-grade portable oscilloscope that features a 10.1-inch large high-definition screen, equipped with a built-in 7500mAh lithium battery, it supports long-lasting operation, 2/4 channel options, a maximum bandwidth of 300MHz, the highest sampling rate of 2GSa/s, and a maximum memory depth of 220Mpts. It is equipped with the SigtestUI™ multitasking system, a user-friendly interface specifically designed for test instruments, allowing you to operate the oscilloscope as easily as using a smartphone. This makes it convenient for you to solve problems anytime, whether in the lab or on-site. Ubiquitous Measurement, Unmatched Reliability Compact in size and easy to carry. With power lock support for added peace of mind during transportation. Equipped with a built-in 7500mAh lithium battery, it supports long-lasting operation.
Specifications
| Model | TO3004 | TO2004 | TO2002 |
| Bandwidth | 300MHz | 200MHz | 200MHz |
| Rise Time | ≤1.16ns | ≤1.75ns | ≤1.75ns |
| Analog Channels | 4 | 4 | 2 |
| Real-time Sampling Rate | 2GSa/s | 2GSa/s | 1GSa/s |
| Memory Depth | 220Mpts | 220Mpts | 110Mpts |
| Max. waveform Capture Rate | 300,000 wfms/s | 300,000 wfms/s | 78,000 wfms/s |
| Input Sensitivity Range | 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 1V/div (50Ω) | 1mV/div ~ 10V/div | |
| Bandwidth Filter | 20MHz, High Pass / Low Pass (to 30Hz) | 20MHz, High Pass / Low Pass (to 30kHz) | |
| Segmented Storage | Support，capture max 10,000 waveform events | Not Support | |
| Input Impedance | 1MΩ/50Ω | 1MΩ | |
| Timebase Range | 1ns/div ~ 1ks/div | 2ns/div ~ 1ks/div | |
| Vertical Resolution | 8bit | ||
| Trigger Types | Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video | ||
| Bus Decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C | ||
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out | ||
| Storage | 32G | ||
| Display | 10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids | ||
| Battery | 7.4V, 7500mAh Li-Ion battery | ||
| Dimension / Net Weight | 265*192*50mm / 1.9kg（with battery） | ||
