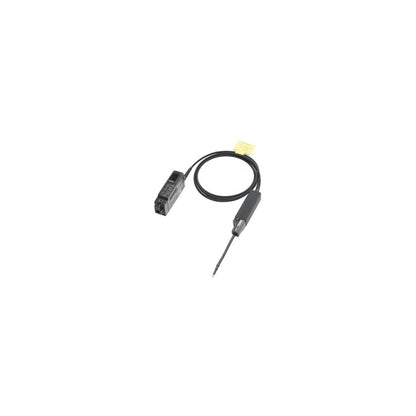

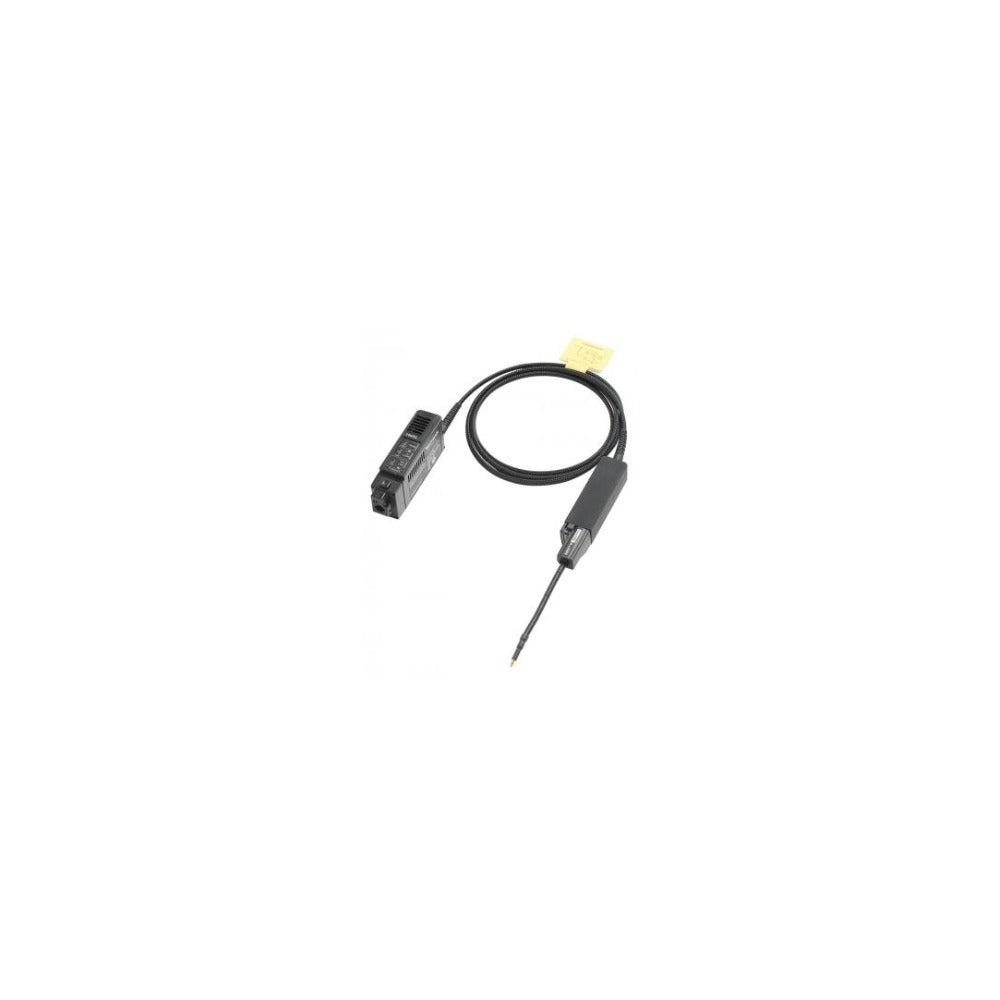

TIVP Series IsoVu Optically Isolated Voltage Probe ±2500 V, up to 1 GHz

Key Features

Galvanic isolation over optical fiber, with power-over-fiber (no batteries)
Bandwidths of 200 MHz, 500 MHz and 1 GHz
Differential range up to ±2500 V with the TIVPWS500X tip
Common-mode voltage up to ±60 kV
160 dB CMRR at DC, up to 120 dB at 100 MHz
2 m or 10 m fiber cable

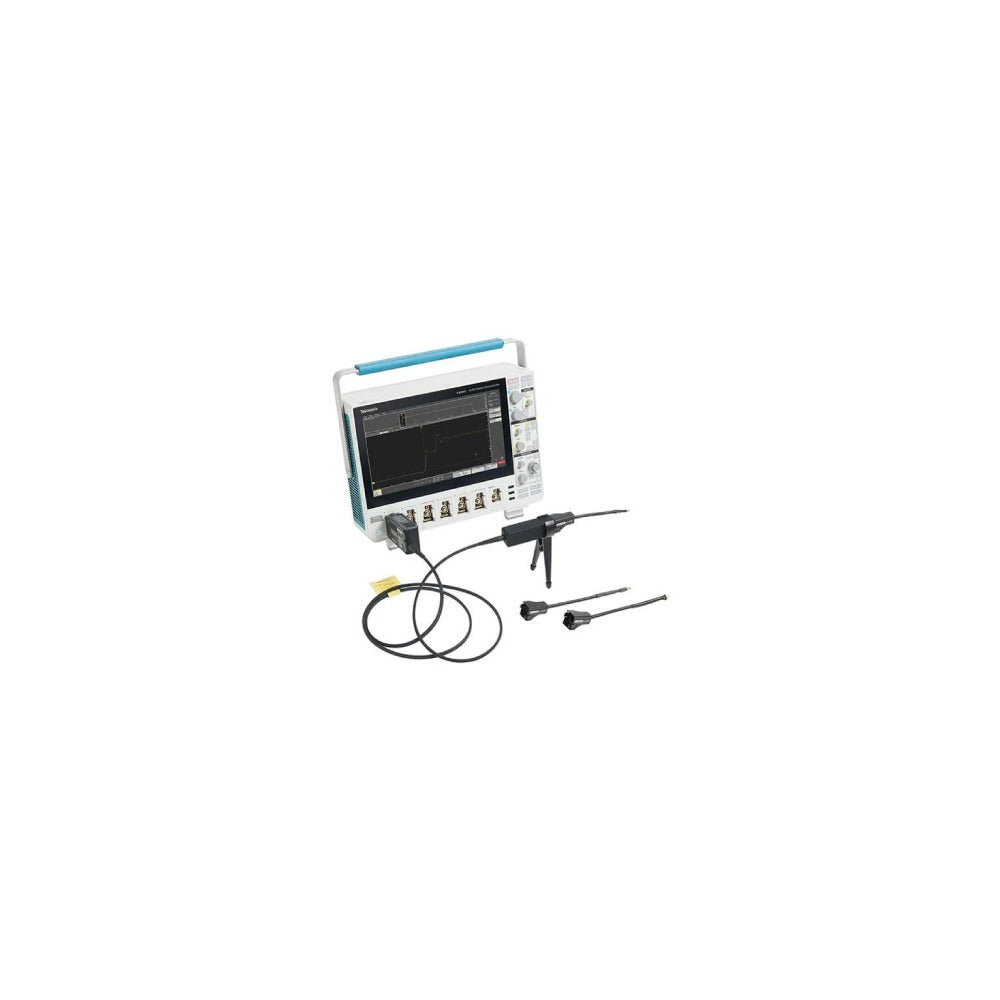

TekVPI interface for 4, 5 and 6 Series MSO oscilloscopes
MMCX and square-pin sensor tips; SMA input on the sensor head

Model TIVP02 TIVP05 TIVP1 TIVP02L TIVP05L TIVP1L

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

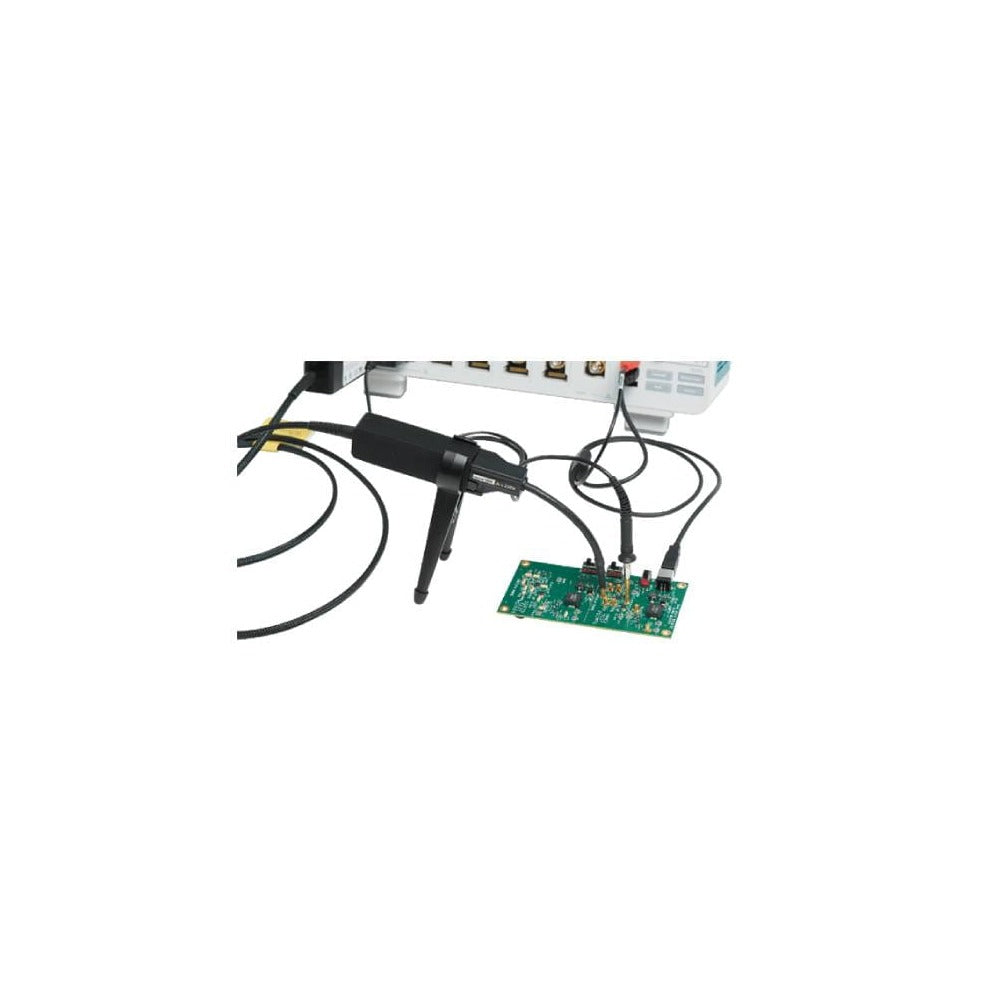

The TIVP series is the second-generation IsoVu optically isolated voltage probe. Power and the measured signal both travel over optical fiber, so the probe head is galvanically isolated from the oscilloscope and can float at the common-mode voltage of the device under test.

With the sensor head about one fifth the size of the first-generation IsoVu probes, the TIVP series measures differential signals up to ±2500 V in the presence of common-mode voltages up to ±60 kV, with 160 dB of common-mode rejection at DC. Bandwidths of 200 MHz, 500 MHz and 1 GHz are available with a 2 m or 10 m fiber cable.

Each probe includes the TIVPMX10X MMCX tip (±50 V). Higher ranges, up to ±2500 V, use the optional TIVPMX50X, TIVPSQ100X or TIVPWS500X tips. The probes connect through TekVPI and work only with 4, 5 and 6 Series MSO oscilloscopes.

Models & Specifications

Common Specifications

Specification	Value
Isolation	Galvanic, optical fiber (IsoVu Generation 2)
Common-mode Voltage	±60 kV peak
Common-mode Input Capacitance	<2 pF
CMRR at DC	160 dB
CMRR at 100 MHz	Up to 120 dB (tip dependent)
CMRR at 1 GHz	Up to 80 dB (tip dependent)
DC Gain Accuracy	<1.5% after self-calibration
Laser Classification	Class I
Oscilloscope Interface	TekVPI
Compatible Oscilloscopes	4, 5 and 6 Series MSO only
Included Tip	TIVPMX10X MMCX, 10X (±50 V)

2 m Cable

Specification	TIVP02	TIVP05	TIVP1
Bandwidth	200 MHz	500 MHz	1 GHz
Rise Time	2 ns	850 ps	450 ps
Propagation Delay	18.3 ns (19.3 ns with tip)	18.3 ns (19.3 ns with tip)	18.3 ns (19.3 ns with tip)

10 m Cable

Specification	TIVP02L	TIVP05L	TIVP1L
Bandwidth	200 MHz	500 MHz	1 GHz
Rise Time	2 ns	850 ps	450 ps
Propagation Delay	63.7 ns (64.7 ns with tip)	63.7 ns (64.7 ns with tip)	63.7 ns (64.7 ns with tip)

Sensor Tips

Differential range depends on the tip. Only the TIVPMX10X is included; the other tips are optional.

Tip	Differential Range	Offset Range	Input Impedance
SMA input, 50 Ω	±5 V	±25 V	50 Ω
SMA input, 1 MΩ	±5 V	±25 V	1 MΩ \|\| 11 pF
TIVPMX10X MMCX, 10X (included)	±50 V	±200 V	10 MΩ \|\| 2.8 pF
TIVPMX50X MMCX, 50X	±250 V	±250 V	9.75 MΩ \|\| 2.3 pF
TIVPSQ100X square pin, 100X	±500 V	±500 V	9.75 MΩ \|\| 3.5 pF
TIVPWS500X wide square pin, 500X	±2500 V	±2500 V	40 MΩ \|\| 2.4 pF
TIVPMX1X MMCX, 1X	±5 V	±25 V	50 Ω or 1 MΩ \|\| 28 pF

Specifications are typical, from the official Tektronix TIVP series datasheet (51W-61655-7, June 2026). CMRR is about 20 dB lower in the ±5 V range, except at DC. Use the Download Datasheet button for the full CMRR tables and derating curves.
