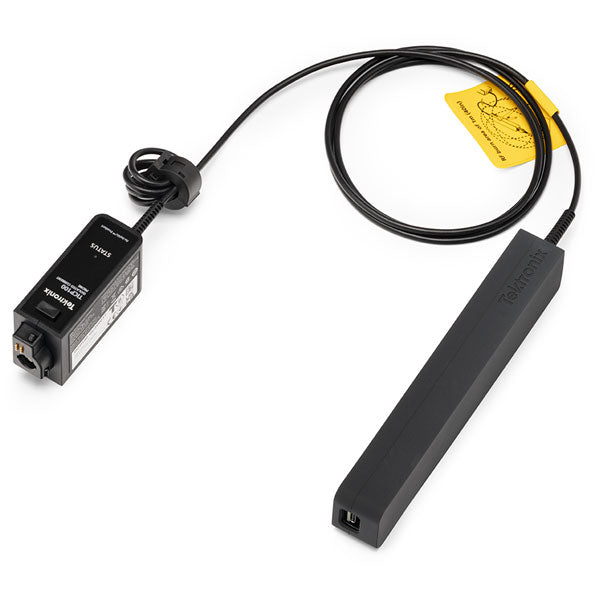

TICP050 1000V 500MHz

The IsoVu™ isolated current probes deliver exceptional bandwidth, noise rejection, accuracy, and ease of use for making current measurements.

Complete galvanic isolation eliminates ground loops and enables very high common mode rejection. In a 1X configuration, the probe's 50 Ω input offers extremely low noise of less than 4.7 nV/ √Hz, ideal for making accurate measurements on shunts. The probes offer a variety of attenuation tips to extend the differential voltage range. Depending upon the shunt used, the probes can perform current measurements from microamperes (μA) for lowpower mobile designs to hundreds of amperes for industrial and mobility systems.

Key performance specifications and features

• Galvanic isolation between probe tip and the oscilloscope
• Available in three bandwidths: 1 GHz, 500 MHz, and 250 MHz
• Wide current measurement range determined by the shunt used with 1X, 10X or 100X probe tips
• Noise <4.70 nV / √Hz (<21 μVRMS at 20 MHz)
• Up to 90 dB CMRR at 1 MHz
• Maximum common mode voltage: 1800 V; For use in a Pollution Degree 1 environment; transient level not to exceed 5 kVpk
• 1.5% DC gain accuracy
• Compatible with the 4, 5, and 6 Series MSO instruments, including the latest B models
• TekVPI™ interface enables control and probe configuration from the oscilloscope front panel or programming interface
• Optional tips to measure currents in environmental chambers from -40ºC to +125ºC
