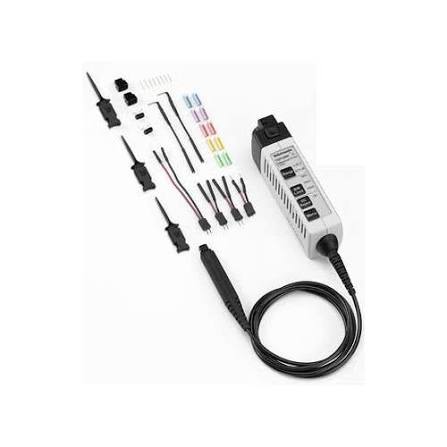

TDP0500 5X: ±4.2V/ 50X: ±42V 500MHz

Key performance specifications

• 1 GHz and 500 MHz probe bandwidth
• <1 pF differential input capacitance
• 1 MΩ differential input resistance
• ±42 v (DC + pk AC) differential input voltage
  • >18 dB CMRR (at 250 MHz 50X attenuation)

Key features

• Outstanding electrical performance
  • Selectable bandwidth-limiting filters
  • DC reject
• Versatile DUT connectivity
  • Small compact probe head for probing small geometry circuit elements
  • Straight pin, square pin, solder down, variable pitch standard accessories
  • Robust design for reliability
• Easy to use
• Provides automatic units scaling and readout on the oscilloscope display
• TDP1000, TDP0500
  • Connect directly to oscilloscopes with the TekVPI™ probe interface
  • Easy access to scope-displayed probe menu for probe setup control and operating status information
  • Remote GPIB/USB probe control through the oscilloscope
  • AutoZero – zeros out output offset
