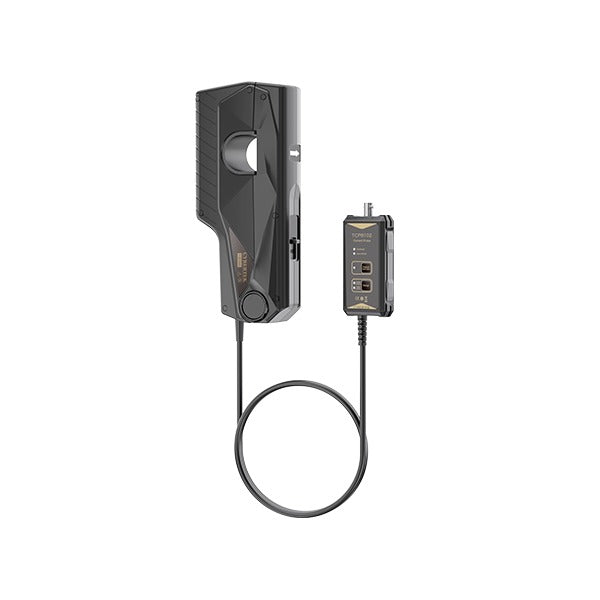

TCP8000 Series II High-Current AC/DC Current Probe 500–1000 A, up to 4 MHz

Key Features

Measures up to 1000 A RMS (TCP8102), 1400 A peak
Bandwidth up to DC–4 MHz (TCP8501D)
Two switchable ranges per model
Accuracy ±1%
Automatic degauss and zero; over-range LED and buzzer alarm
Low insertion loss, low noise and high EMI immunity
Standard BNC output for any oscilloscope

Model TCP8501D TCP8102

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The TCP8000 Series II are high-current, high-frequency AC/DC current probes for power electronics. The TCP8102 is the first high-frequency AC/DC current probe able to measure up to 1000 A RMS, while the TCP8501D measures 500 A RMS with up to 4 MHz bandwidth.

Both models offer two switchable ranges, automatic degauss and zero, over-range alarm with indicator and buzzer, very low waveform distortion and insertion loss, and strong immunity to electromagnetic interference. The standard BNC output connects to any oscilloscope.

Models & Specifications

Common Specifications

Specification	Value
Accuracy	±1%
Output Connector	BNC (1 MΩ oscilloscope input)
Power Supply	DC 12 V / 1 A adapter (supplied)

Model Comparison

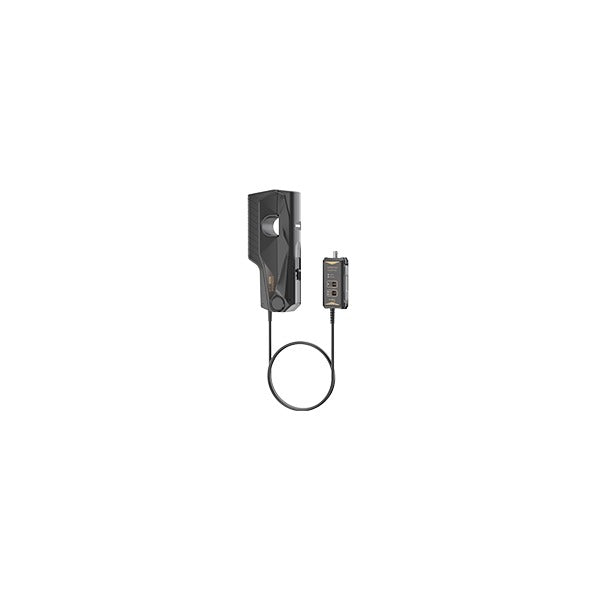

Model	TCP8501D	TCP8102
Rated Current (RMS)	500 A	1000 A
Peak Current	750 A	1400 A
Bandwidth	DC–4 MHz	DC–2 MHz
Ranges	75 A / 500 A	150 A / 1000 A
Current Transfer Ratio	100 mV/A / 10 mV/A	50 mV/A / 5 mV/A
Rise Time	≤88 ns	≤175 ns
