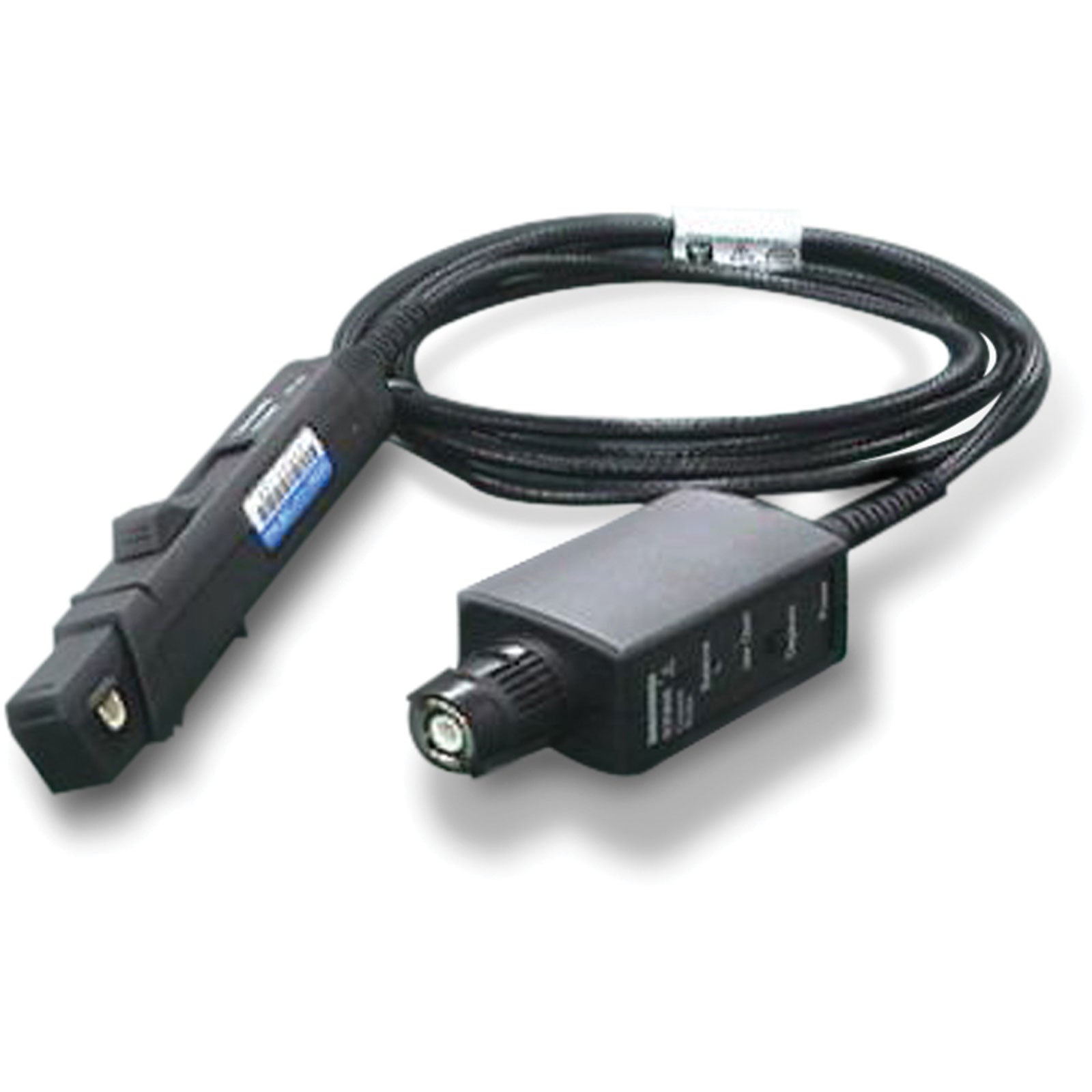

TCP2020 20Arms 50MHz

The TCP0020, TCP2020, and TCP202A are a family of high-performance,
easy-to-use AC/DC current probes designed for use with a variety of
oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.
These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range, while the TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.

Features and benefits

• 20 ARMS maximum current capability
• 100 A peak pulse current capability
• 10 mA/mV sensitivity
• BNC output connects to most oscilloscopes and other measurement equipment (>100 kΩ termination required)
• Degauss button and thumbwheel for DC offset adjustment
• Powered by an AC adapter
