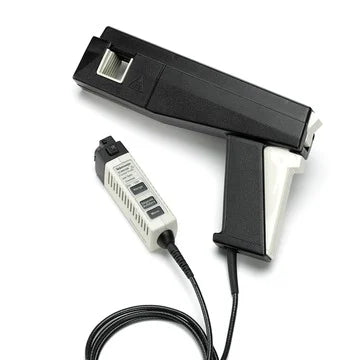

TCP0150 150Arms 20mHz

The TCP0150 is a high performance and easy-to-use 150 A AC/DC
current probe designed for use and direct connection to the TekVPI™
probe interface.

Key performance specifications

• DC to 20 MHz bandwidth
• 150 ARMS maximum current capability
• 500 a peak pulse current capability
• High accuracy with typically less than 1% DC gain error
• Accurately measures current levels as low as 5 mA

Key features

• Easy-to-Use and accurate AC/DC current measurements
• Connects directly to oscilloscopes with the TekVPI™ probe
  interface
• Low noise and DC drift
• Provides automatic units scaling and readout on the oscilloscope's display
• Remote GPIB/USB probe control through the oscilloscope
• Split-core probe head construction allows easy connection to
  conductors
• Easy to degauss and autozero
• Setup controls and probe status and diagnostic indicators are provided on both the probe hardware and through an Easy-to-
  Access scope UI display menu
