Standard Optical Breadboard
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

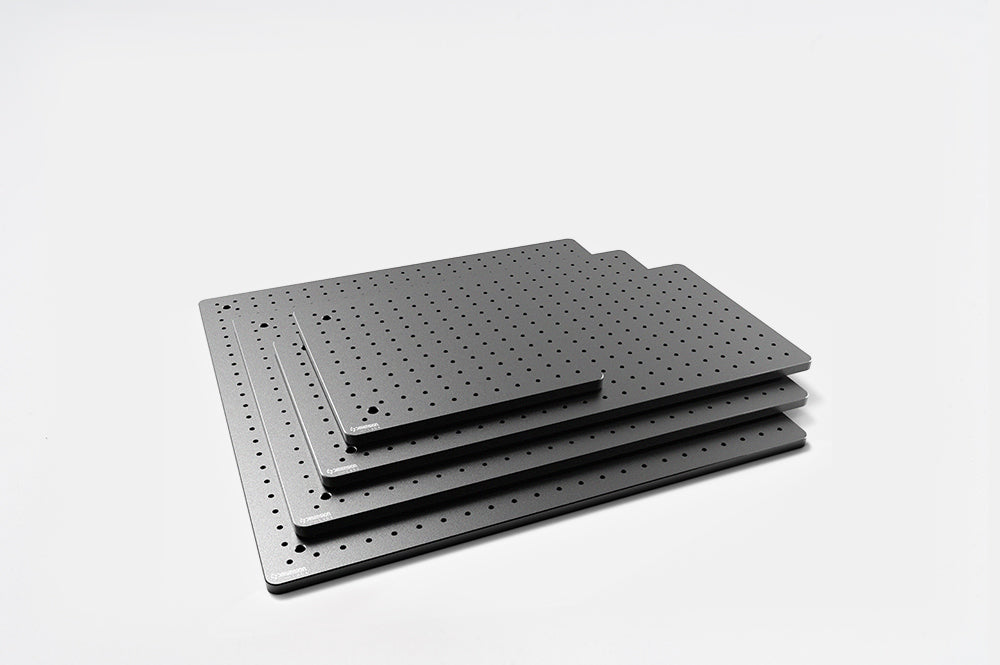

The DL-BZPB series are thin, light solid optical breadboards for bench-top setups, production-line stations and modules that need to be moved. Choose black-anodized aluminium alloy (L models, 13 mm thick) or 316L stainless steel (S models, 10 mm thick).
M6 tapped holes are arranged on a 25 mm × 25 mm grid; flatness is 0.1 mm/m² and surface roughness ≤ Ra 1.6 µm.
Models & Specifications
| Specification | Value |
|---|---|
| Flatness (mm/m²) | 0.1 |
| Surface Roughness (µm) | ≤Ra1.6 |
| Model | Table Size L×W×T (mm) | Material | Surface Treatment | Net Weight (kg) |
|---|---|---|---|---|
| DL-BZPB-L4545-13 | 450×450×13 | Aluminium alloy | Black anodized | 4.7 |

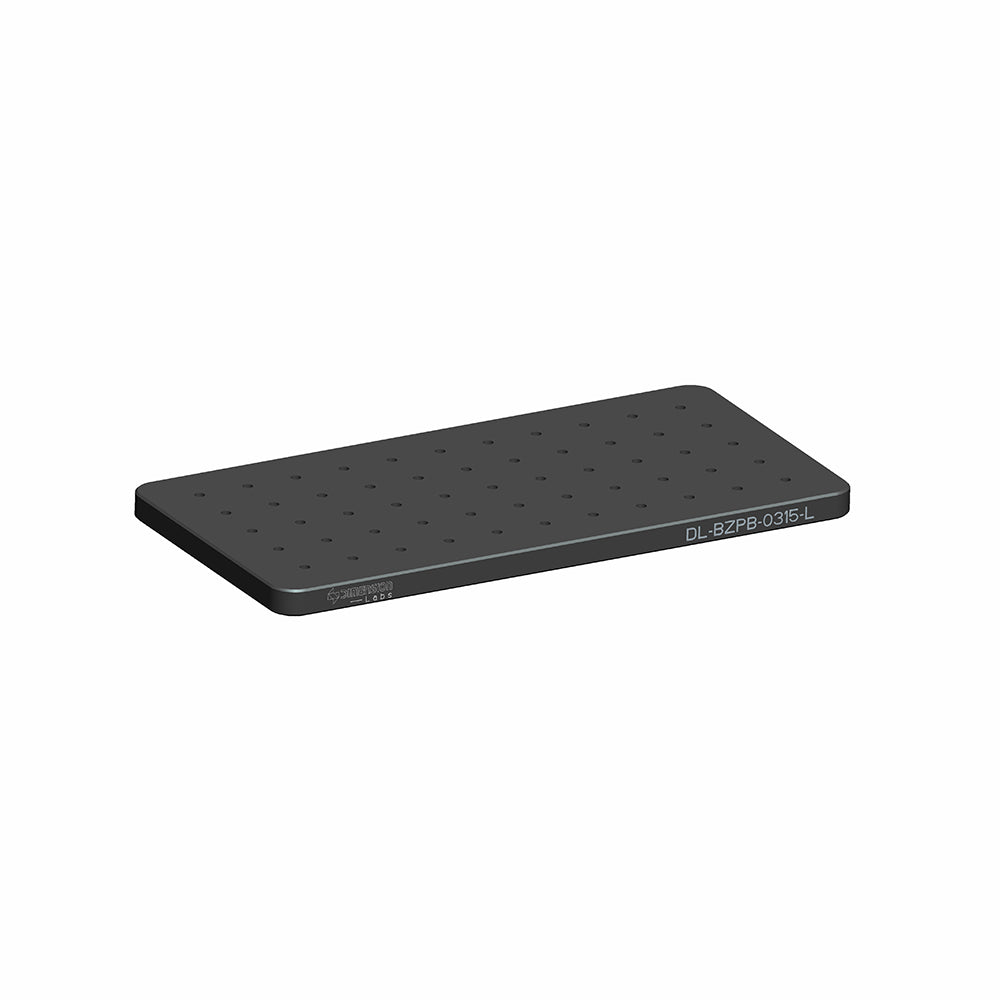

| DL-BZPB-L0315-13 | 300×150×13 | Aluminium alloy | Black anodized | 1.5 |

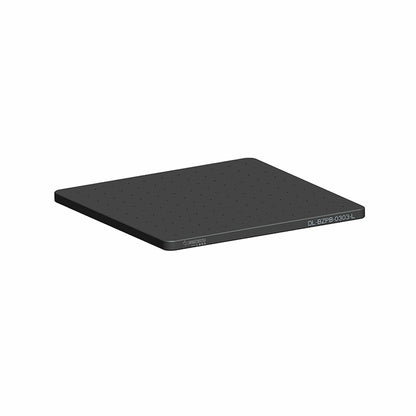

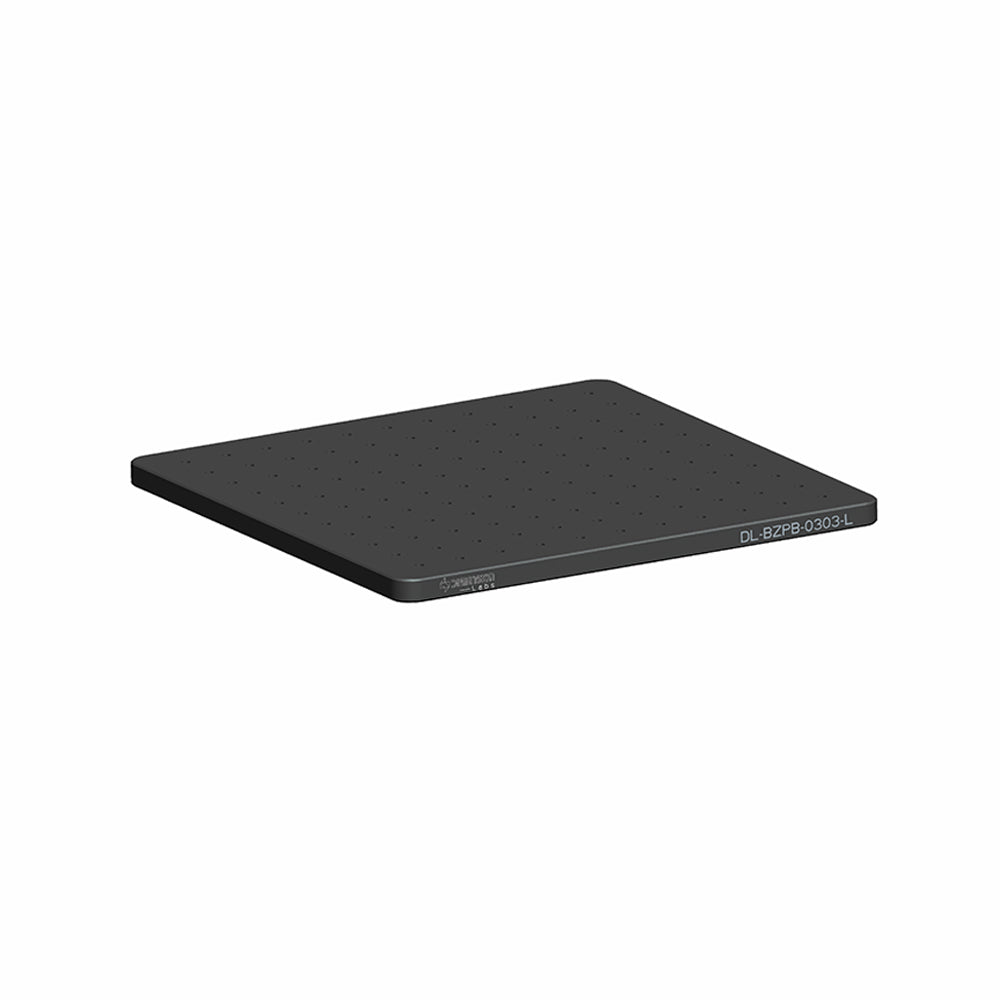

| DL-BZPB-L0303-13 | 300×300×13 | Aluminium alloy | Black anodized | 3.1 |

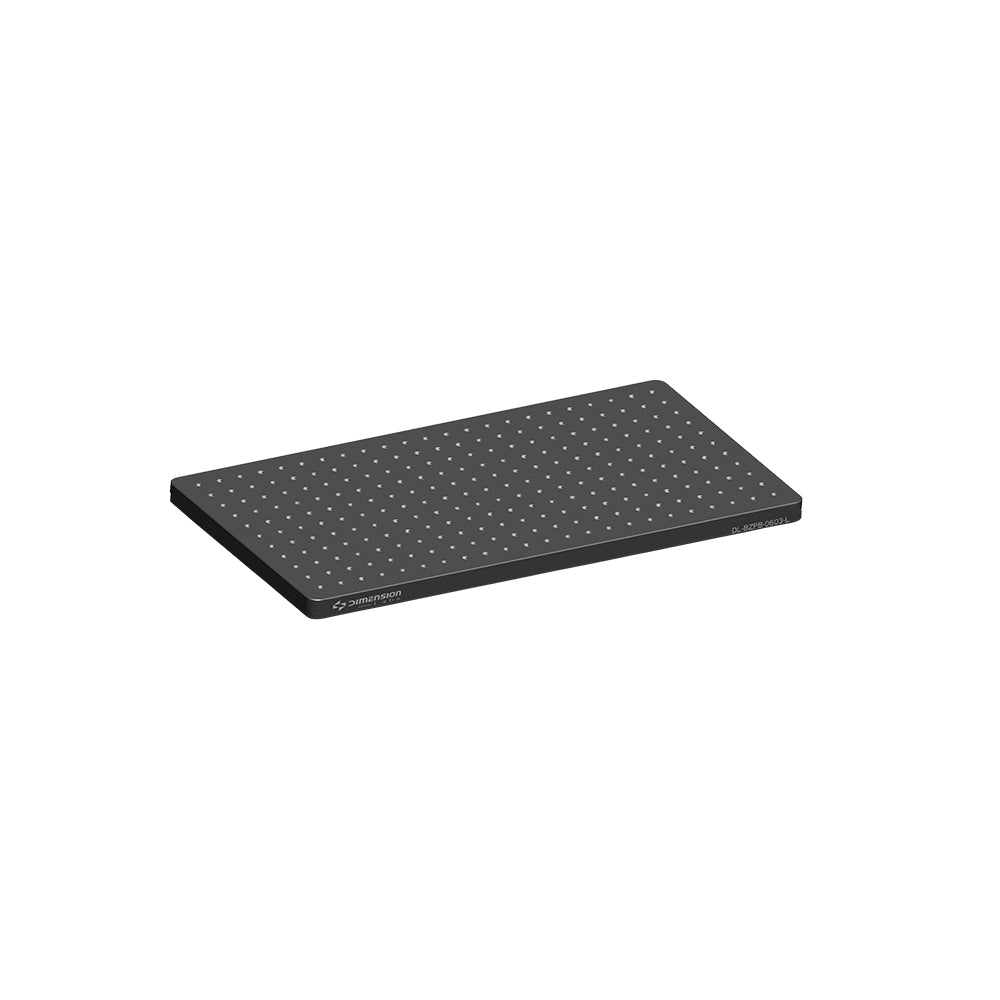

| DL-BZPB-L0603-13 | 600×300×13 | Aluminium alloy | Black anodized | 6.2 |
| DL-BZPB-L0645-13 | 600×450×13 | Aluminium alloy | Black anodized | 9.2 |

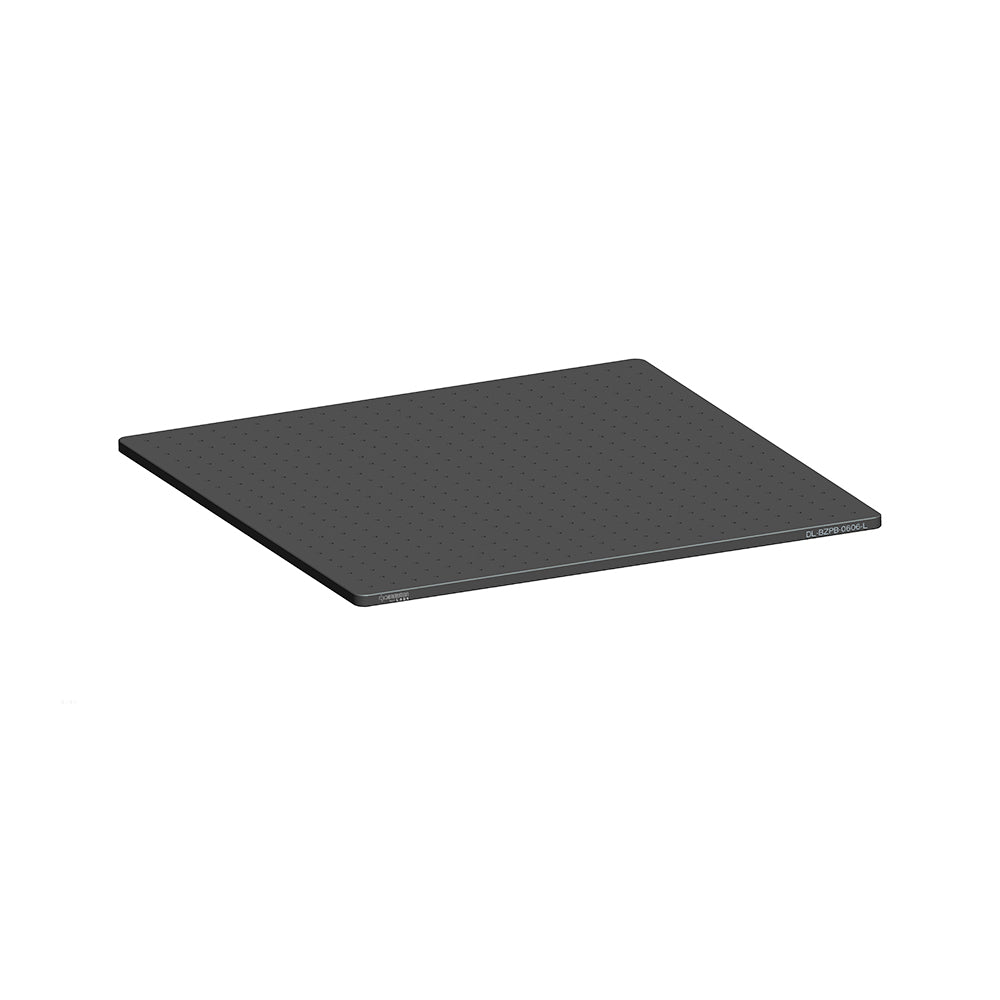

| DL-BZPB-L0606-13 | 600×600×13 | Aluminium alloy | Black anodized | 12.3 |

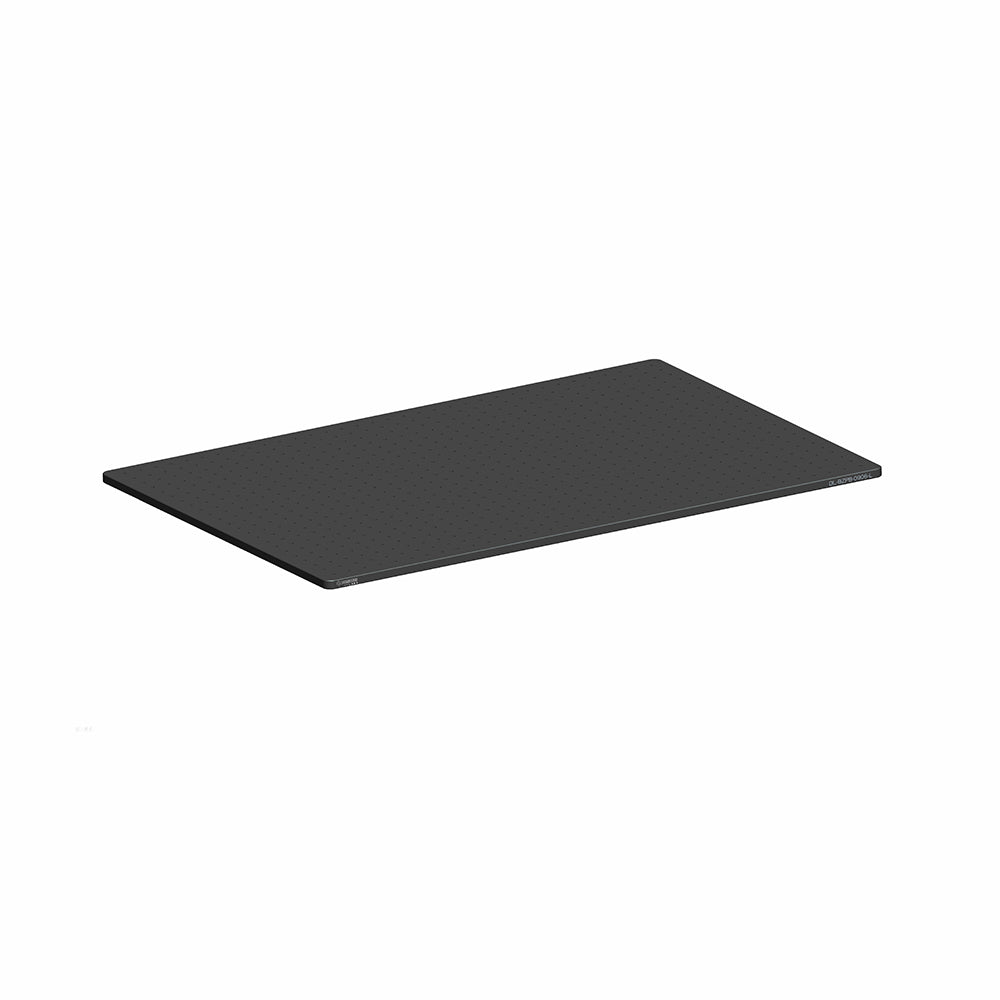

| DL-BZPB-L0906-13 | 900×600×13 | Aluminium alloy | Black anodized | 18.45 |

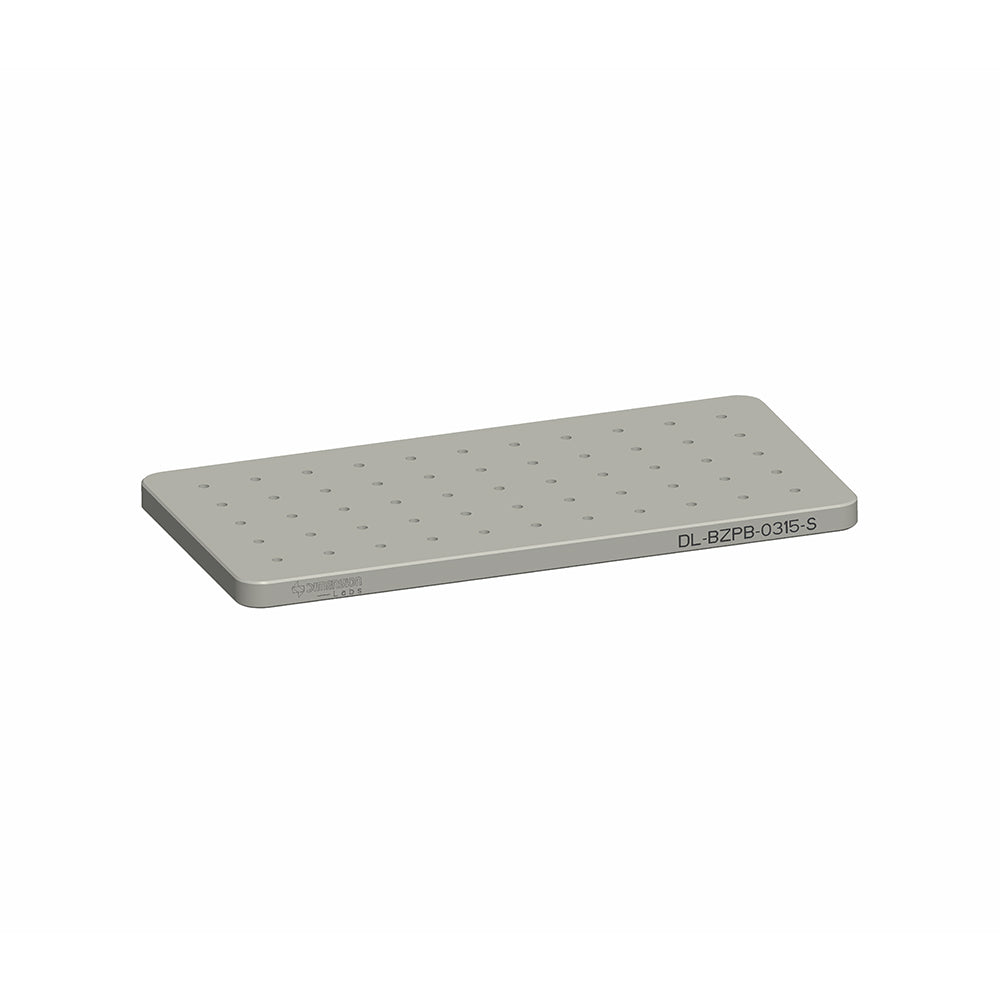

| DL-BZPB-S0315-10 | 300×150×10 | 316L stainless steel | None | 3.39 |

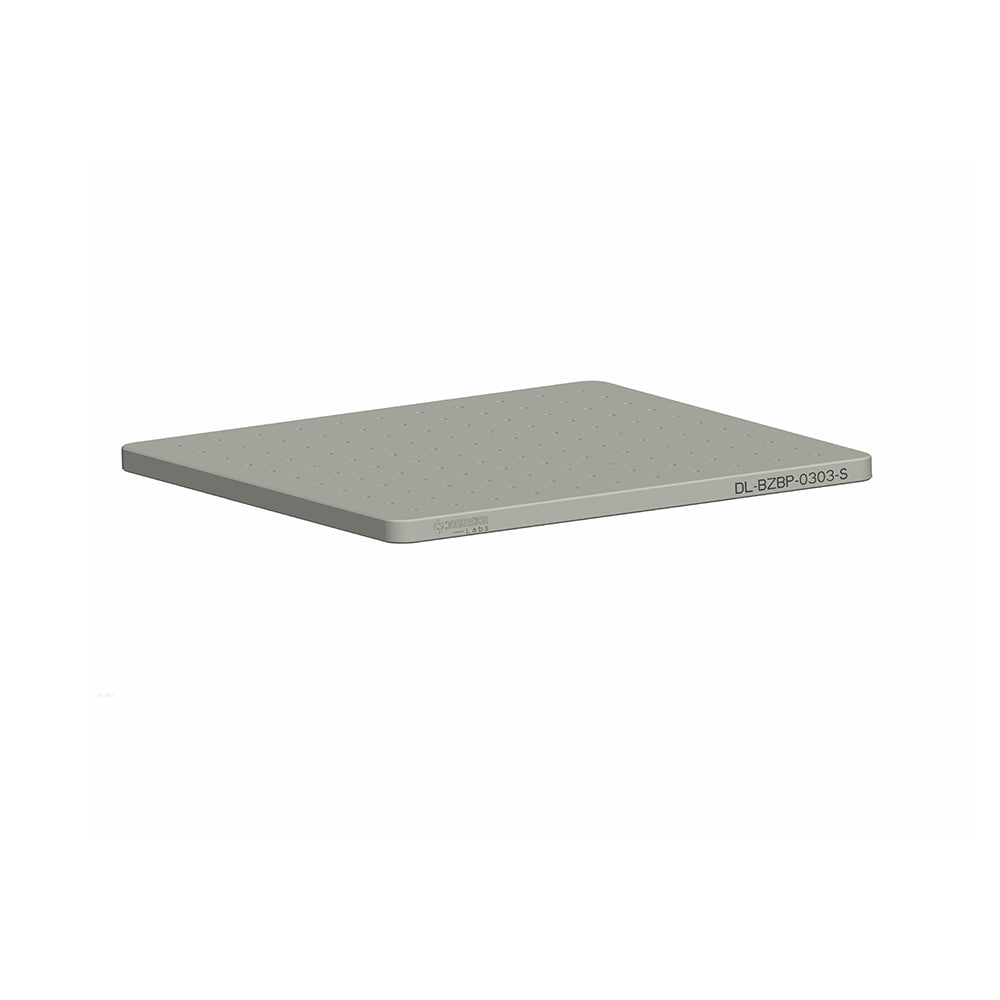

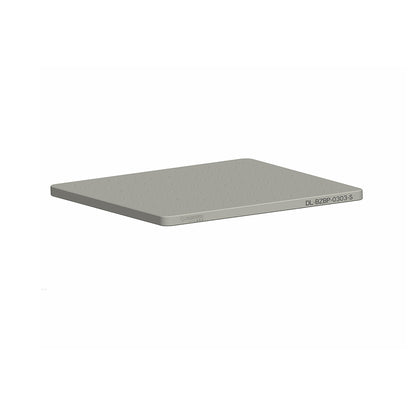

| DL-BZPB-S0303-10 | 300×300×10 | 316L stainless steel | None | 7.01 |

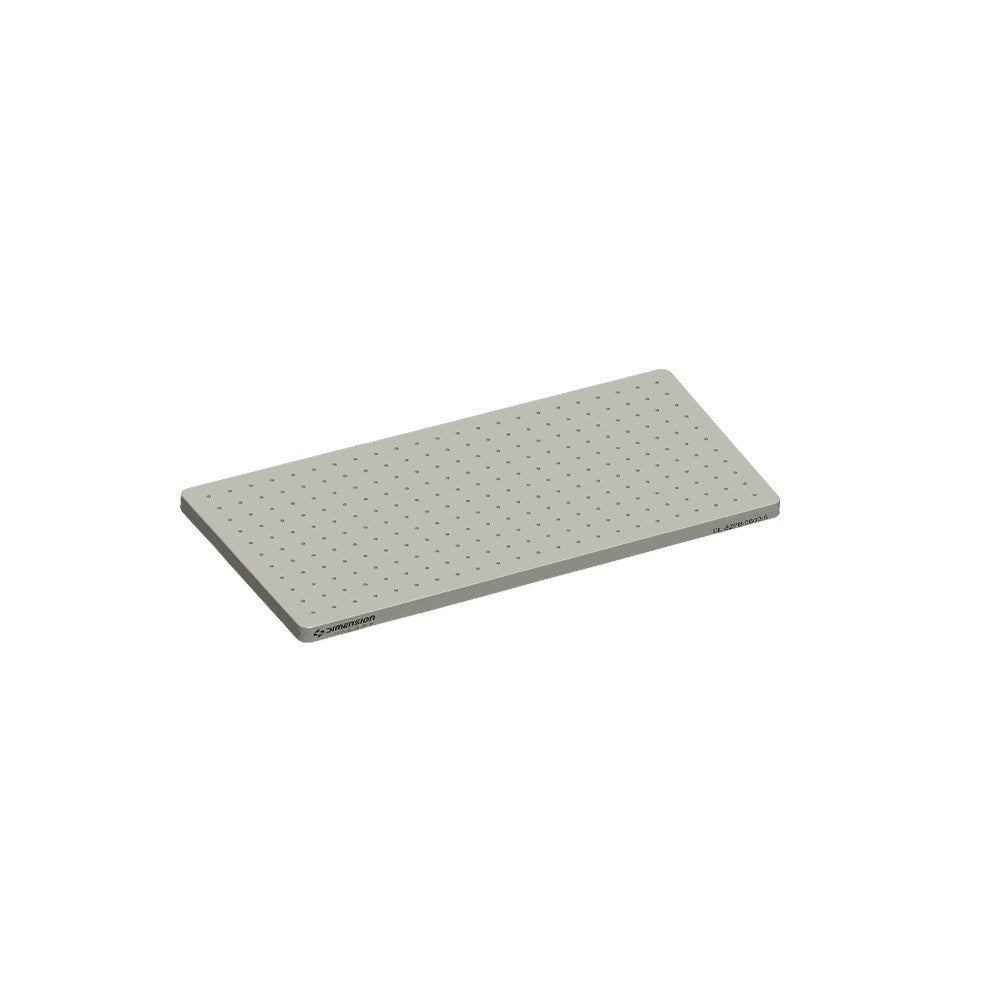

| DL-BZPB-S0603-10 | 600×300×10 | 316L stainless steel | None | 14.02 |

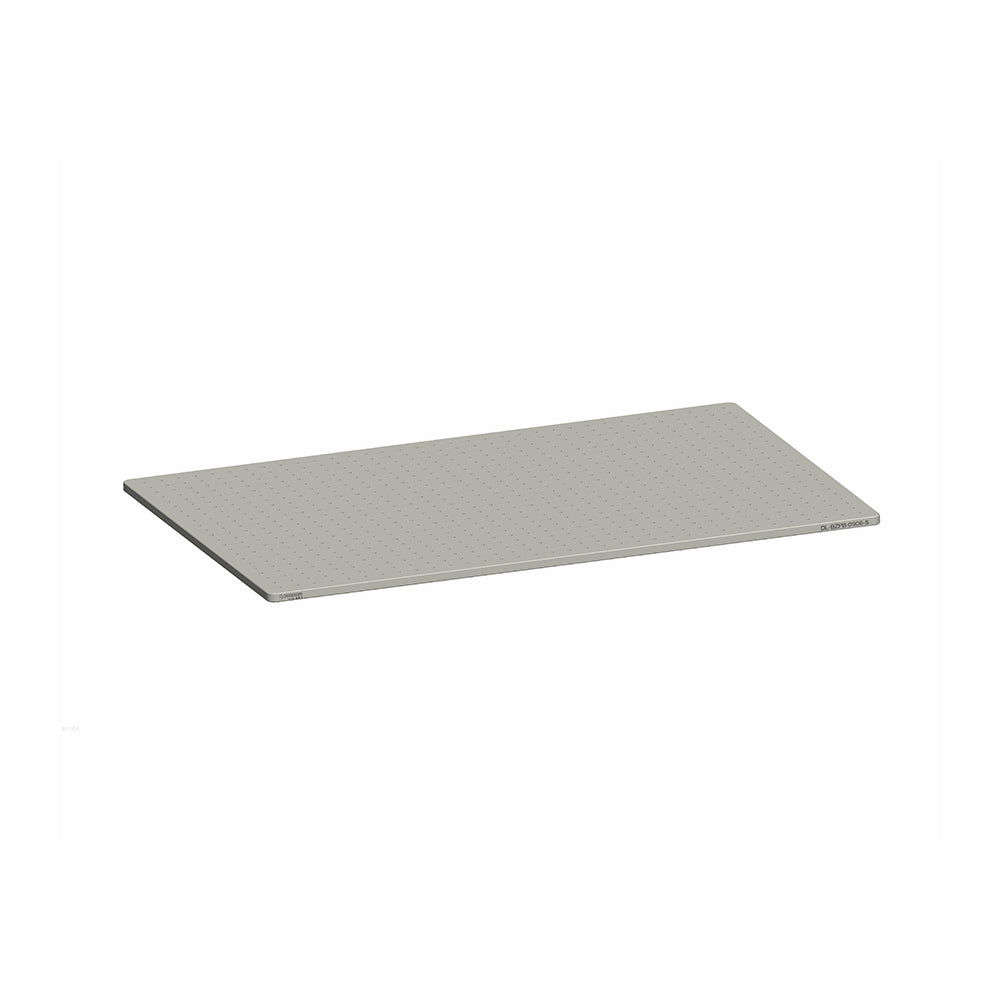

| DL-BZPB-S0645-10 | 600×450×10 | 316L stainless steel | None | 20.81 |

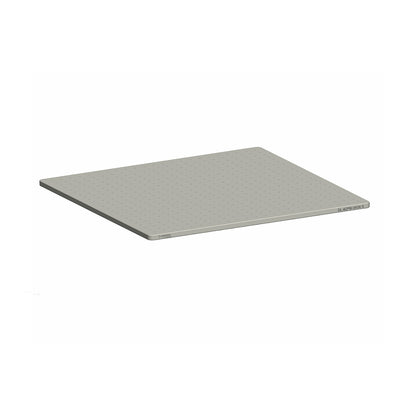

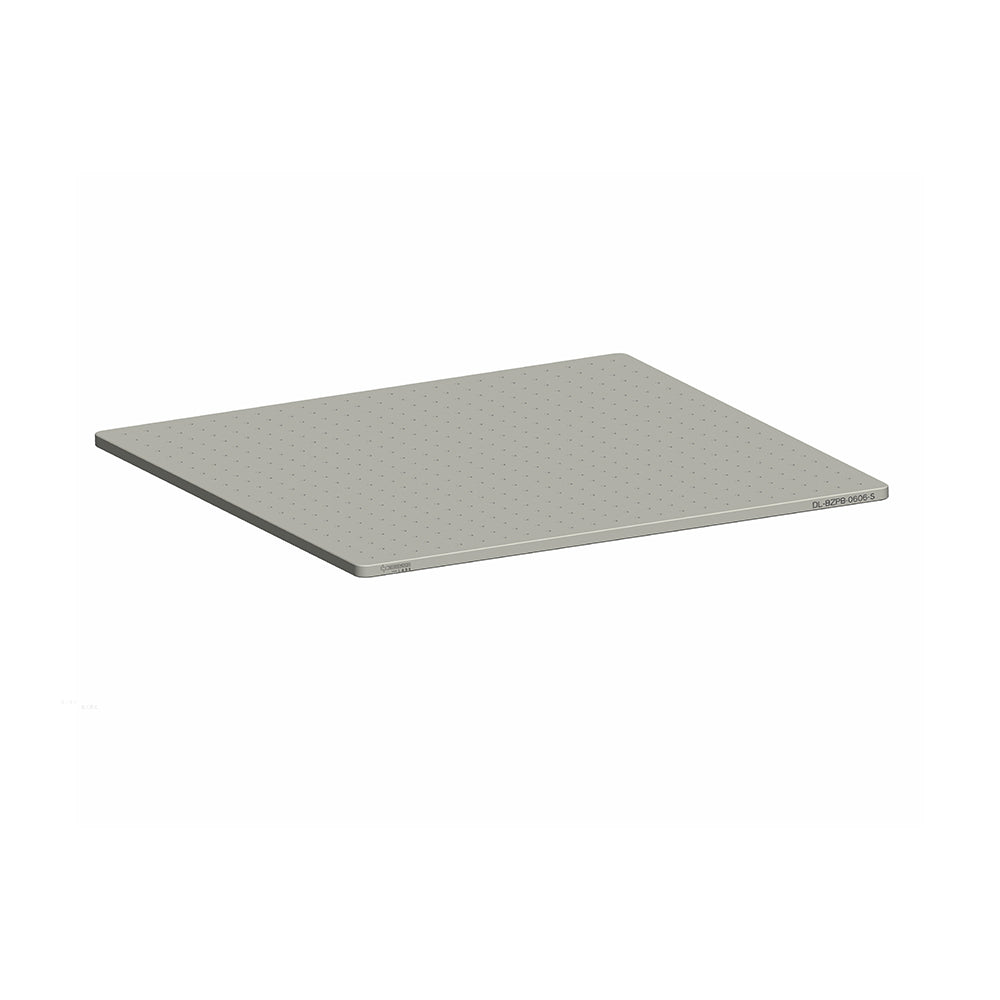

| DL-BZPB-S0606-10 | 600×600×10 | 316L stainless steel | None | 27.82 |
| DL-BZPB-S0906-10 | 900×600×10 | 316L stainless steel | None | 41.72 |
Custom sizes, hole patterns and isolation options are available on request. Datasheet: Dimension-Labs optical table selection guide (Chinese).
