Key Features

Maximum frequency: 18 GHz / 26.5 GHz / 50 GHz
1-4 independent SPDT or 1-2 SP6T switches
Up to 12 test ports (2 SP6T switches)
RF connector: SMA female or 2.4 mm female (50 GHz)
50 Ω characteristic impedance
USB control

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Product Introduction

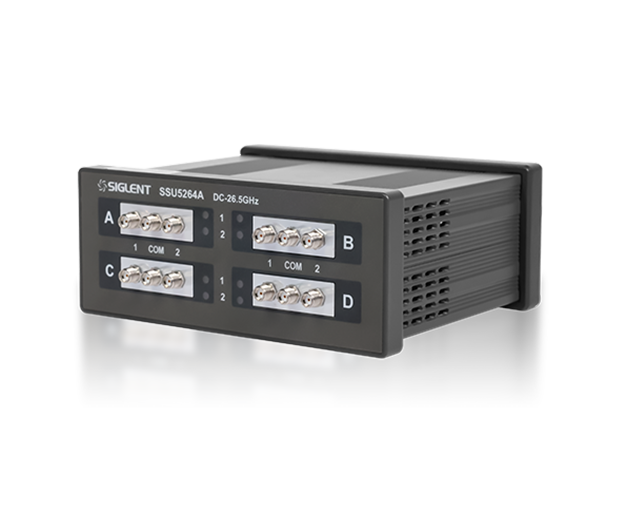

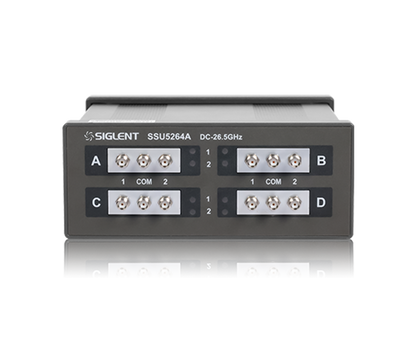

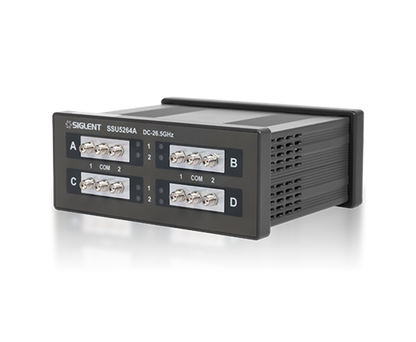

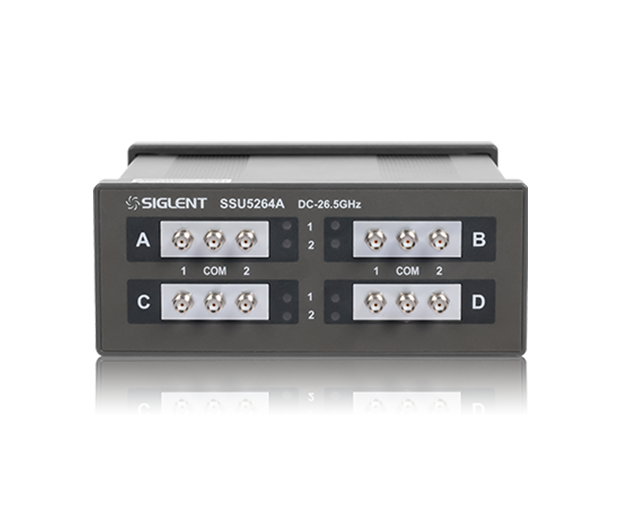

Name: SSU5000A Mechanical Switch
Brand: Siglent
SKU: SSU5181A
Availability: InStock

The SIGLENT SSU5000A series mechanical switch expands the test ports of vector network analyzers, signal generators, spectrum analyzers and other equipment. Models are named SSU5XYZA, where XY is the frequency range (18 / 26.5 / 50 GHz) and Z is the number of internal switches: 1 to 4 independent SPDT switches, or 1 or 2 SP6T switches. 50 Ω impedance, SMA female (18/26.5 GHz) or 2.4 mm female (50 GHz) connectors, USB control.
