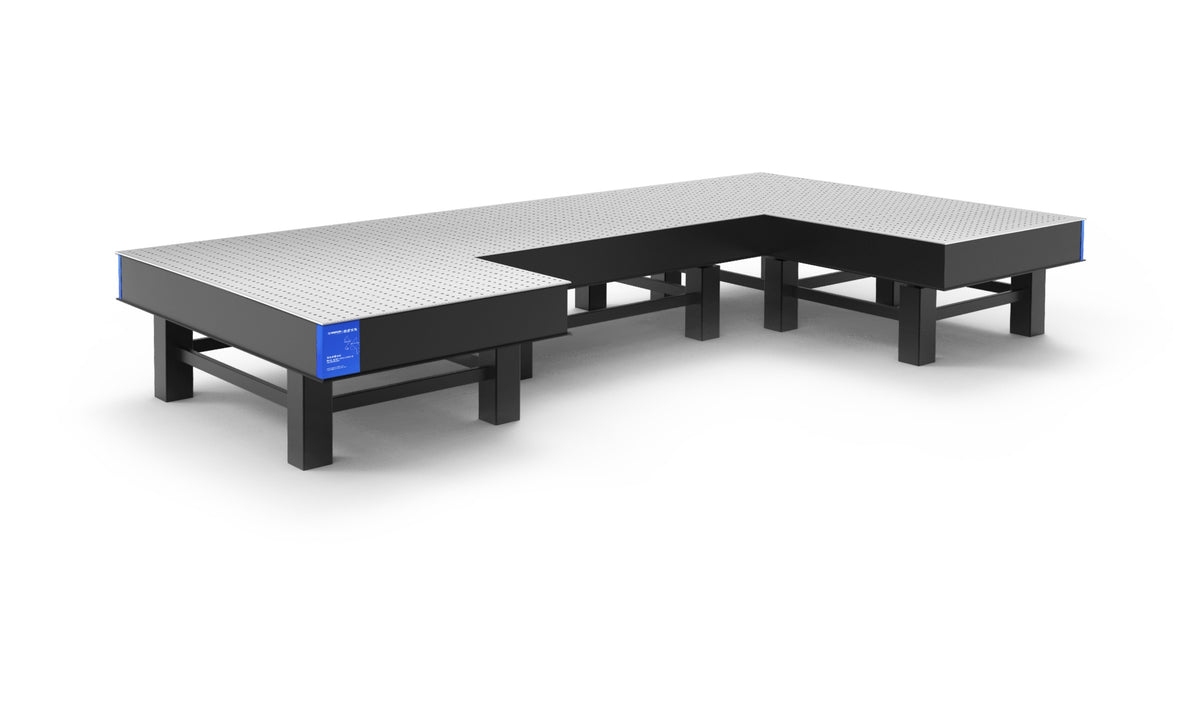

Special-Shaped Spliced Optical Table
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
Dimension-Labs builds extra-large and special-shaped (multi-section) optical tables by splicing several DL-GJQF1 high-precision air-floating self-balancing tables into one continuous work surface. The spliced surface keeps a uniform M6 hole pattern on a 25 mm grid across the joints.
The models below are standard reference configurations; custom layouts and sizes are available on request. The table top is 12Cr13 ferromagnetic stainless-steel top with M6 tapped holes on a 25 mm × 25 mm grid, flatness 0.1 mm/m² and textured matte finish (Ra 0.8–1.6 µm).
Models & Specifications
| Specification | Value |
|---|---|
| Flatness (mm/m²) | 0.1 |
| Vertical Natural Frequency | No load: 1-1.7Hz, full load: 0.8Hz |
| Max. Load (kg) | 3000 |
| Horizontal Natural Frequency | No load: 1.1-1.7Hz, full load: 1.0Hz |
| Isolation Method | Air-floating isolation |
| Max. Dynamic Deflection Coefficient | 1.1×10⁻³ ~ 3.5×10⁻³ |
| Inflation Pressure | Max. 0.6 MPa |
| Max. Relative Displacement (nm) | 0.22~0.70 |
| Model | Table Size L×W×T (mm) | Height (mm) |
|---|---|---|

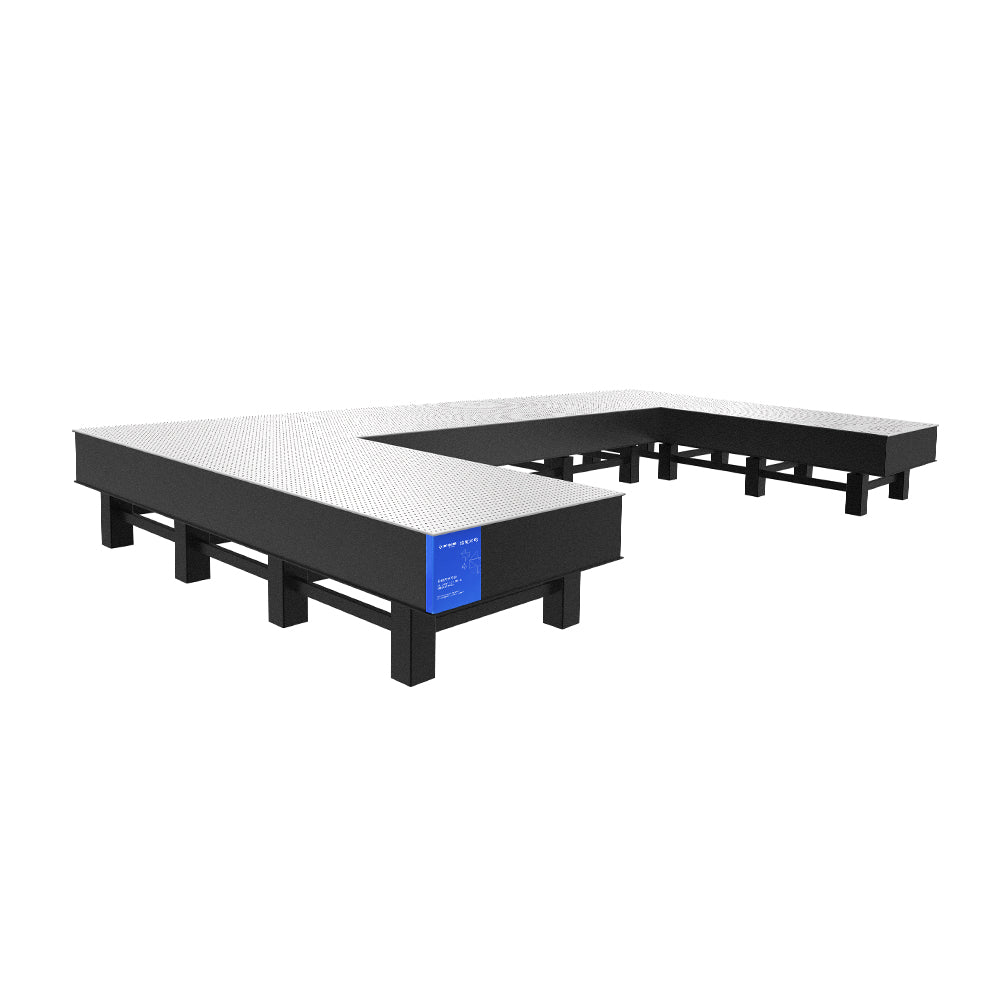

| DL-GJQF1-3-4215-40 | 4215+4215+4215 (3-section splice) | 850 |

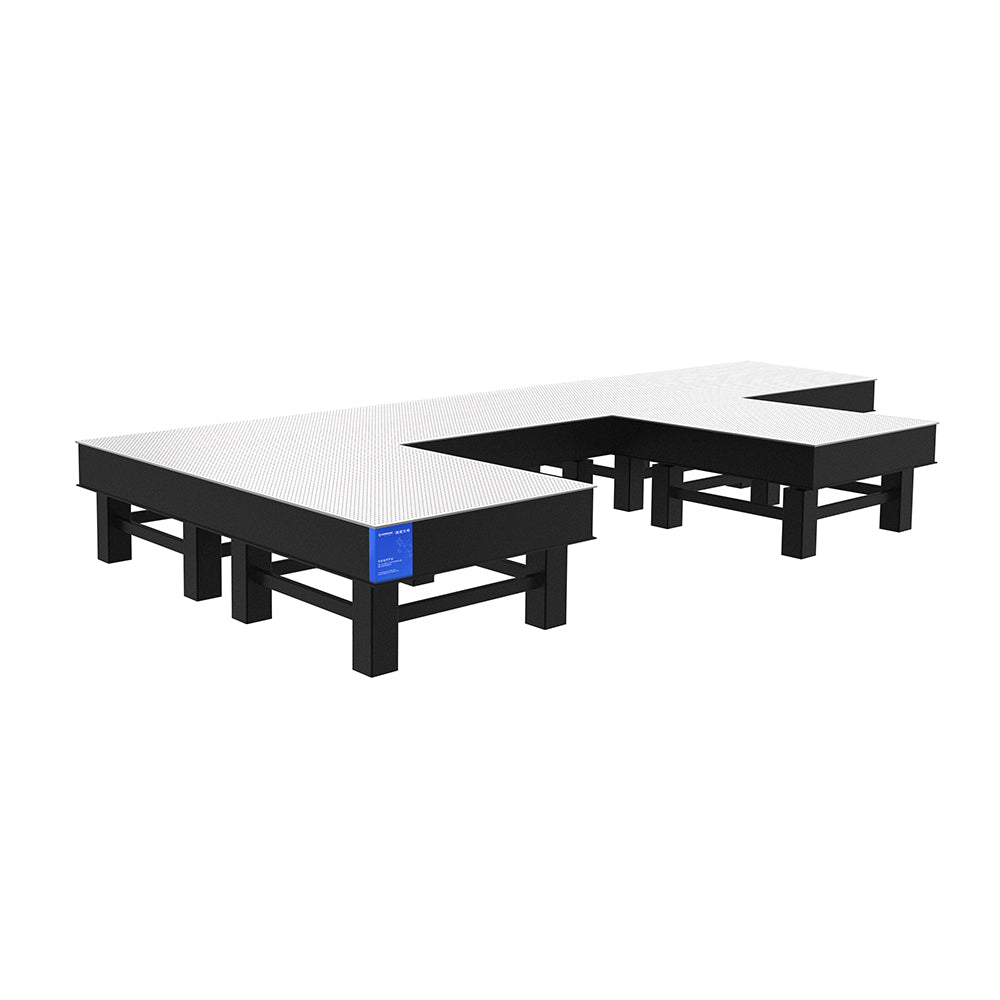

| DL-GJQF1-2-35151815-30 | 3515+3515+1815+1815 (4-section splice) | 800 |

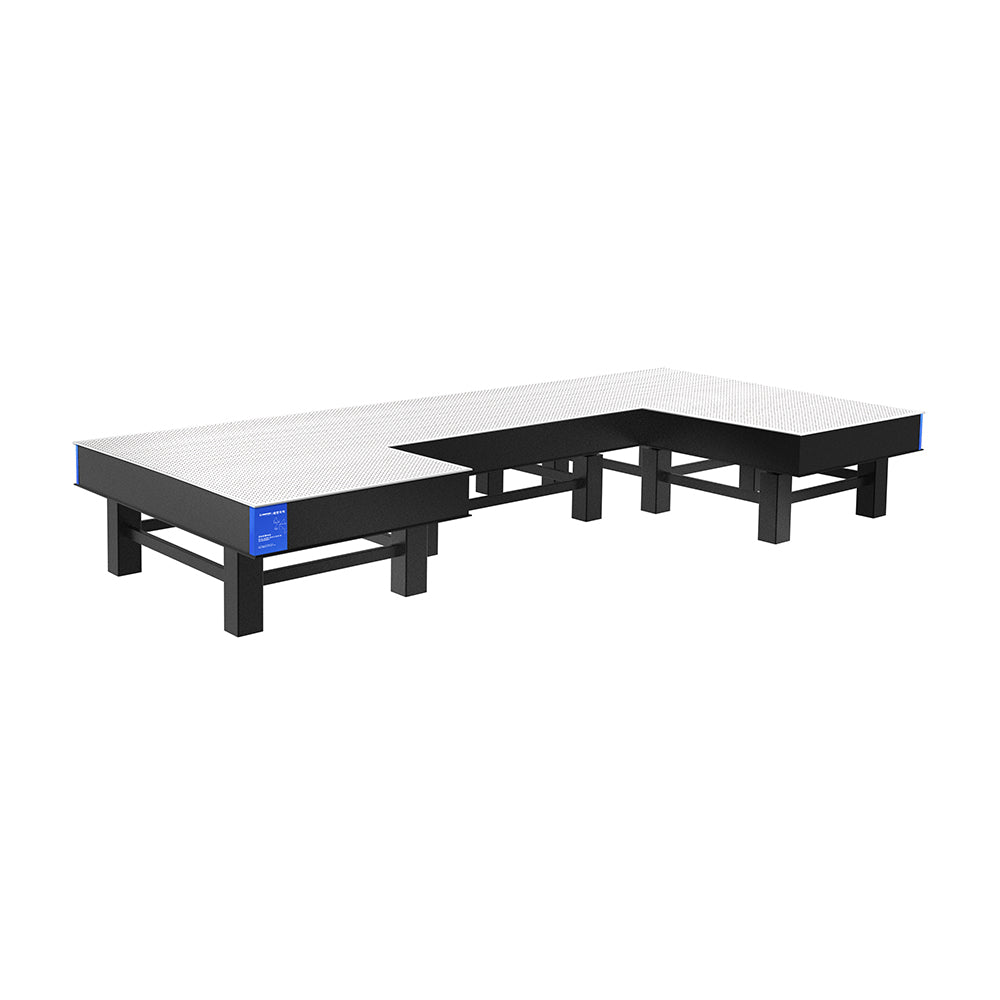

| DL-GJQF1-3015-2-2415-30 | 2415+2412+3015 (3-section splice) | 850 |

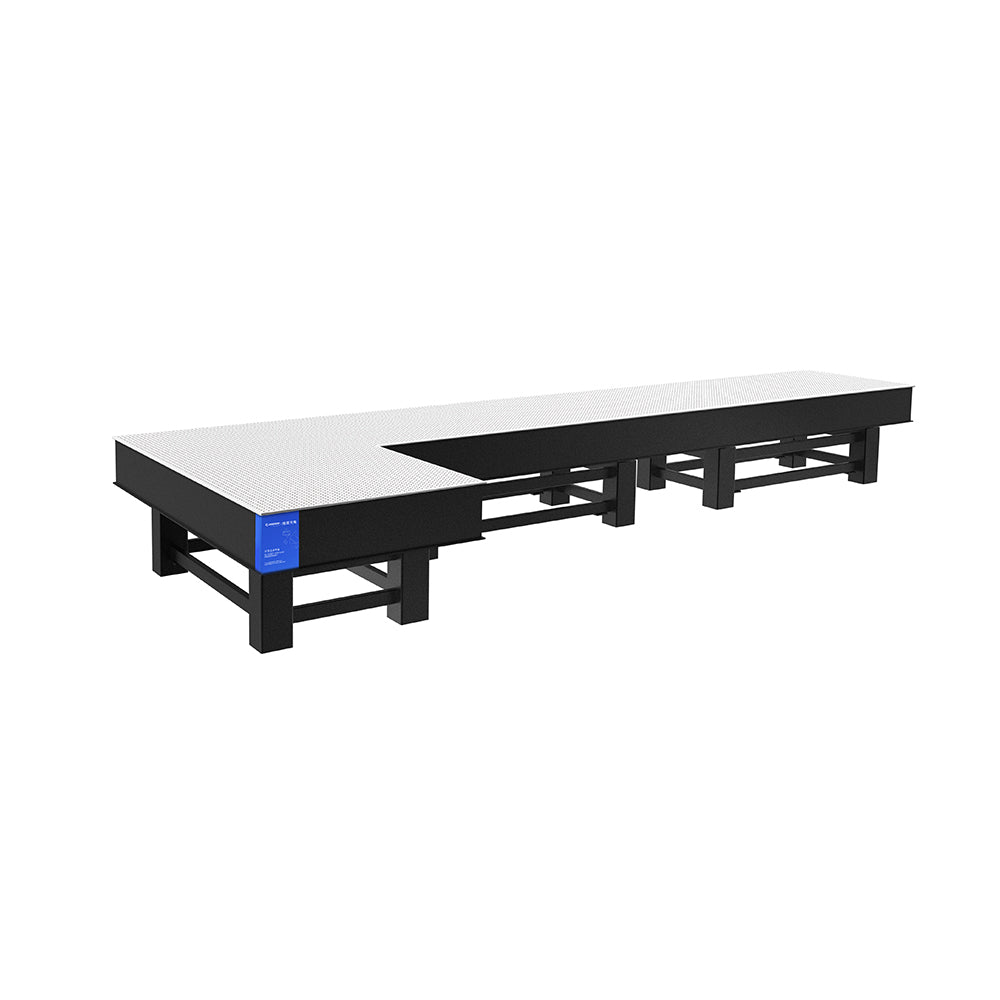

| DL-GJQF1-3-2412-30 | 2412+2412+2412 (3-section splice) | 800 |
Custom sizes, hole patterns and isolation options are available on request. Datasheet: Dimension-Labs optical table selection guide (Chinese).
