SMA to SMA Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The SMA to SMA coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between two SMA interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 26.5 GHz.
Key Features
- In-series SMA coaxial adapter, 50 Ω
- Frequency range DC to 26.5 GHz
- VSWR 1.15 to 1.25 (model dependent)
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight, Right-angle, Bulkhead, Flange / Panel
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|

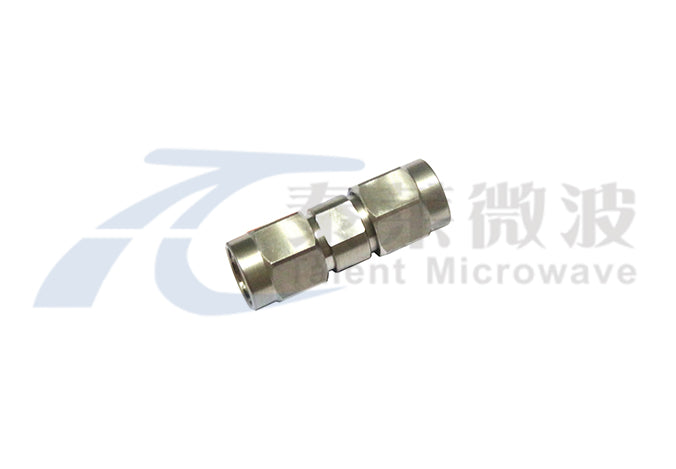

| SMA-JJ | SMA Male | SMA Male | DC–26.5 GHz | 1.15 | Straight | |

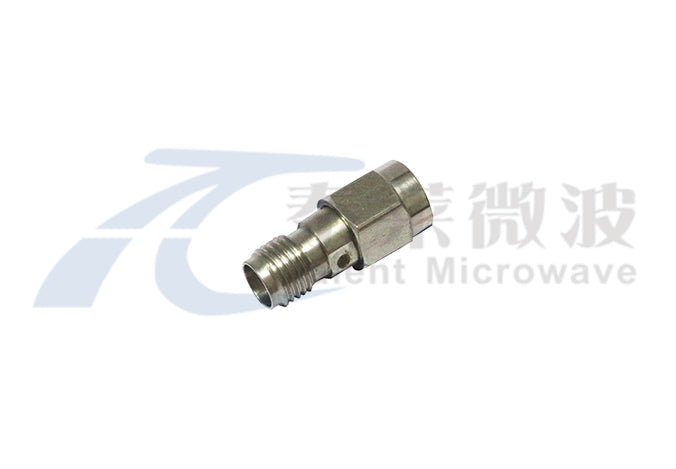

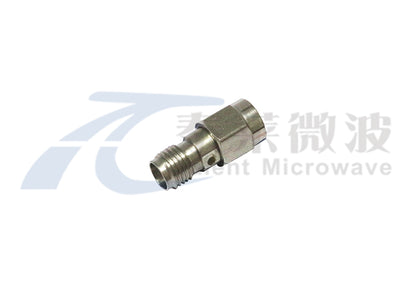

| SMA-JK | SMA Male | SMA Female | DC–26.5 GHz | 1.15 | Straight | |
| SMA-KK | SMA Female | SMA Female | DC–26.5 GHz | 1.15 | Straight | |
| SMA-JWJG | SMA Male | SMA Male | DC–26.5 GHz | 1.25 | Right Angle | |
| SMA-JWKS | SMA Male | SMA Female | DC–18 GHz | 1.15 | Right Angle | |

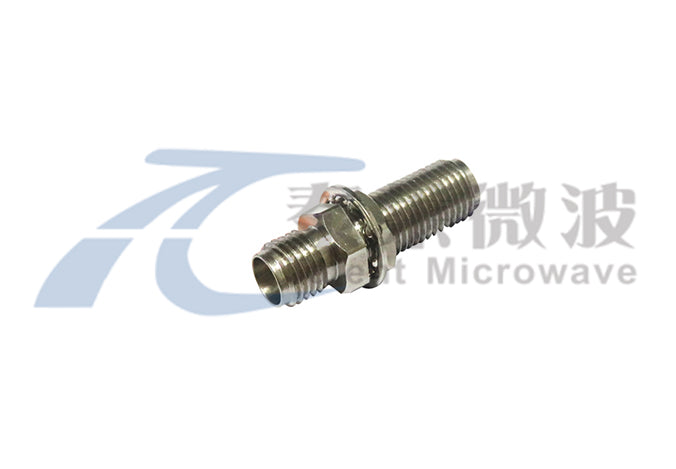

| SMA-KWKS | SMA Female | SMA Female | DC–18 GHz | 1.15 | Right Angle | |

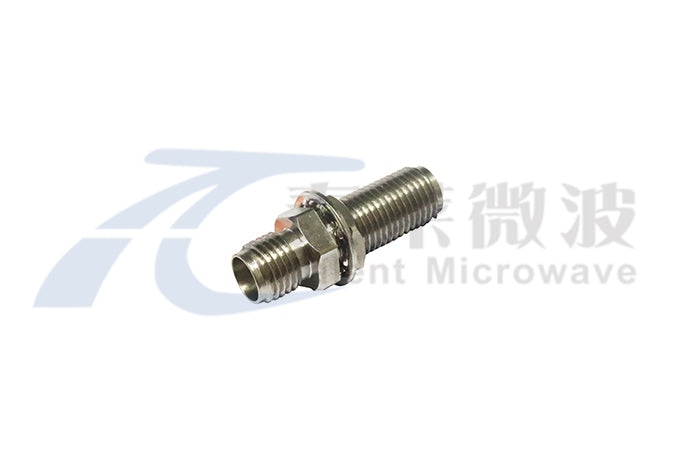

| SMA-KYK | SMA Female | SMA Female | DC–26.5 GHz | 1.15 | Bulkhead | |

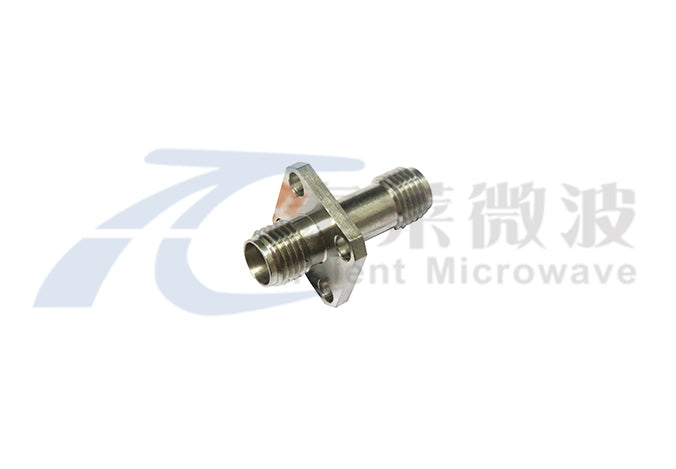

| SMA-KFK | SMA Female | SMA Female | DC–26.5 GHz | 1.15 | 4 Hole Panel Mount | |
| SMA-KK-2FL | SMA Female | SMA Female | DC–26.5 GHz | 1.2 | 4 Hole Panel Mount |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
