SMA to N Coaxial Adapter
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The SMA to N coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between SMA and N interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 18 GHz.
Key Features
- Between-series SMA to N coaxial adapter, 50 Ω
- Frequency range DC to 18 GHz
- VSWR 1.1 to 1.15 (model dependent)
- Available gender combinations: Male–Male, Male–Female, Female–Female
- Body styles: Straight, Right-angle, Flange / Panel
- Individual datasheet available for every model
Model Options
| Model | Interface 1 | Interface 2 | Frequency | VSWR (max) | Body Style | Datasheet |
|---|---|---|---|---|---|---|

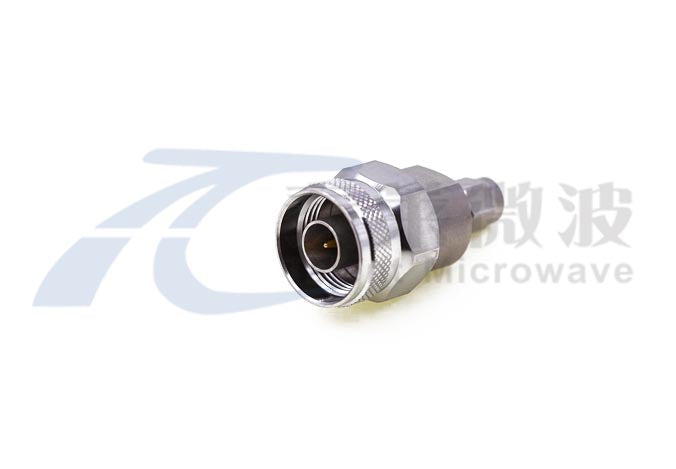

| SMA/N-JJS | SMA Male | N Male | DC–18 GHz | 1.15 | Straight | |
| SMA/N-JKS | SMA Male | N Female | DC–18 GHz | 1.15 | Straight | |
| SMA/N-KJS | SMA Female | N Male | DC–18 GHz | 1.15 | Straight | |

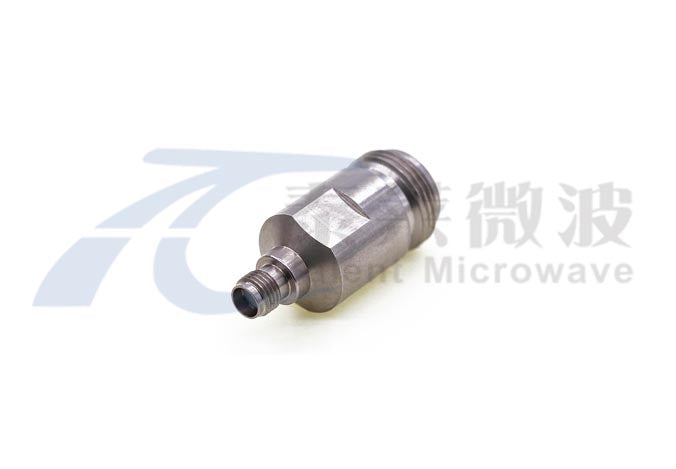

| SMA/N-KKS | SMA Female | N Female | DC–18 GHz | 1.15 | Straight | |
| N/SMA-JWKS | SMA Female | N Male | DC–18 GHz | 1.1 | Right Angle | |

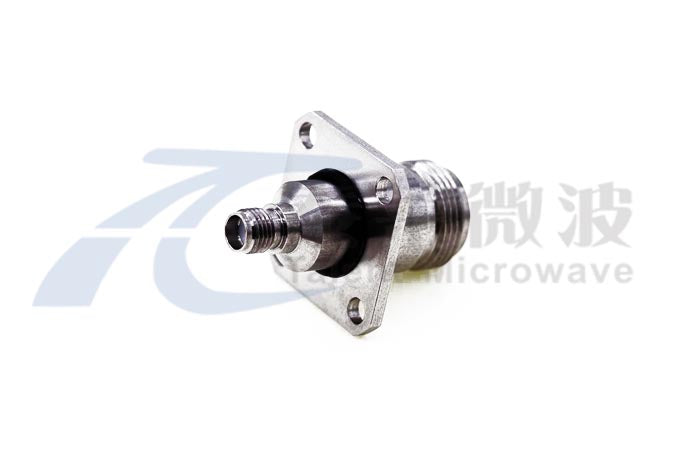

| N/SMA-KFK | SMA Female | N Female | DC–18 GHz | 1.15 | 4 Hole Panel Mount |
Model codes: J = male (plug), K = female (jack). Please contact us for a quotation.
