• SL2000

SL2000

Key Features

  • 8 module slots, up to 32 channels
  • 200 MS/s, same plug-in modules as the DL950
  • Isolated inputs up to 1000 V, up to 7000 V with a differential probe
  • Synchronize up to five SL2000 and DL950 units
  • IS8002 software licence included, except /SN
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

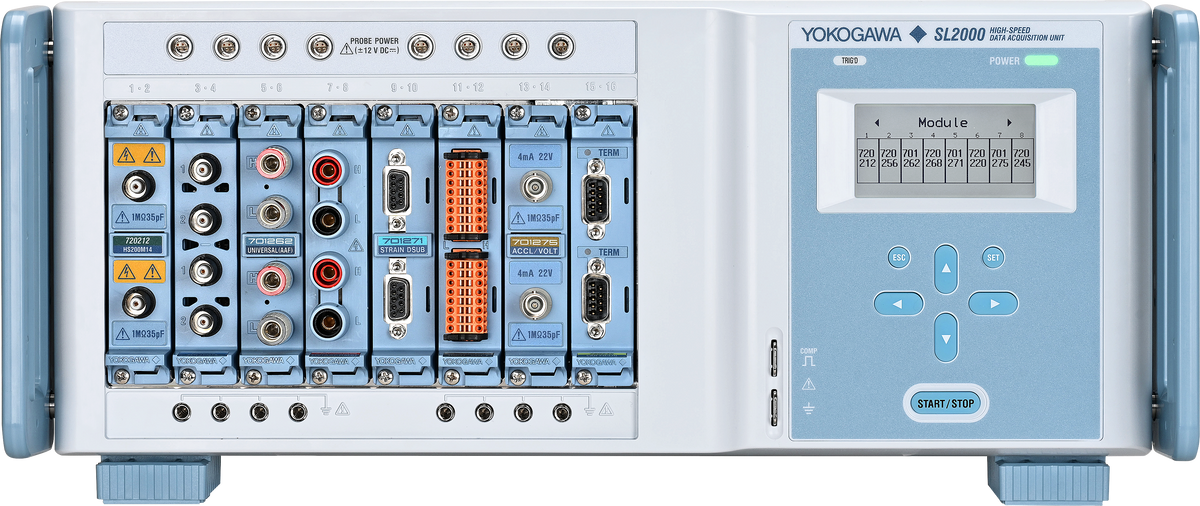

High-speed data acquisition unit for design validation, automated test and operational testing. It uses the same plug-in modules as the DL950 and combines isolated oscilloscope inputs with recorder-style logging.

Eight slots, sample rates up to 200 MS/s, and synchronization of up to five SL2000 and DL950 units. IS8002 is included (except the /SN option).

Models & Specifications

Specification SL2000
Slots 8
Channels Up to 32
Maximum sample rate 200 MS/s
ADC resolution 12, 14 or 16-bit, by module
Memory Up to 8 Gpoints, same memory options as the DL950
Isolation Up to 1000 V, or 7000 V with a differential probe
Modules Same plug-in modules as the DL950
Synchronization Up to 5 SL2000 and DL950 units
Software IS8002, 1 licence, except /SN
Use Rack and ATE high-speed data acquisition

Specifications from the official Yokogawa bulletin DL950-SL2000-01EN.
