SHN900A 30kHz-26.5GHz

Product Features

Frequency Range: 30 kHz – 14 GHz / 20 GHz / 26.5 GHz
2-port portable VNA with full S-parameters (S11/S12/S21/S22)
Dynamic range: 110 dB (Typ.); Frequency resolution: 1 Hz
Range of IFBW: 10 Hz – 3 MHz; Output level: −45 dBm to +10 dBm
Standard CAT/DTF, Bias-Tee, GPS; ~4 h battery; < 3.2 kg; 8.4″ multi-touch
Optional licences (not model variants): SHN900-SA / TDA / TDR / AFR

With its compact design and excellent performance, SHN900A series is unique in the portable vector network analyzer market — especially suitable for on-site testing and rapid troubleshooting.

Frequency Range 30kHz-14GHz 30kHz-20GHz 30kHz-26.5GHz

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

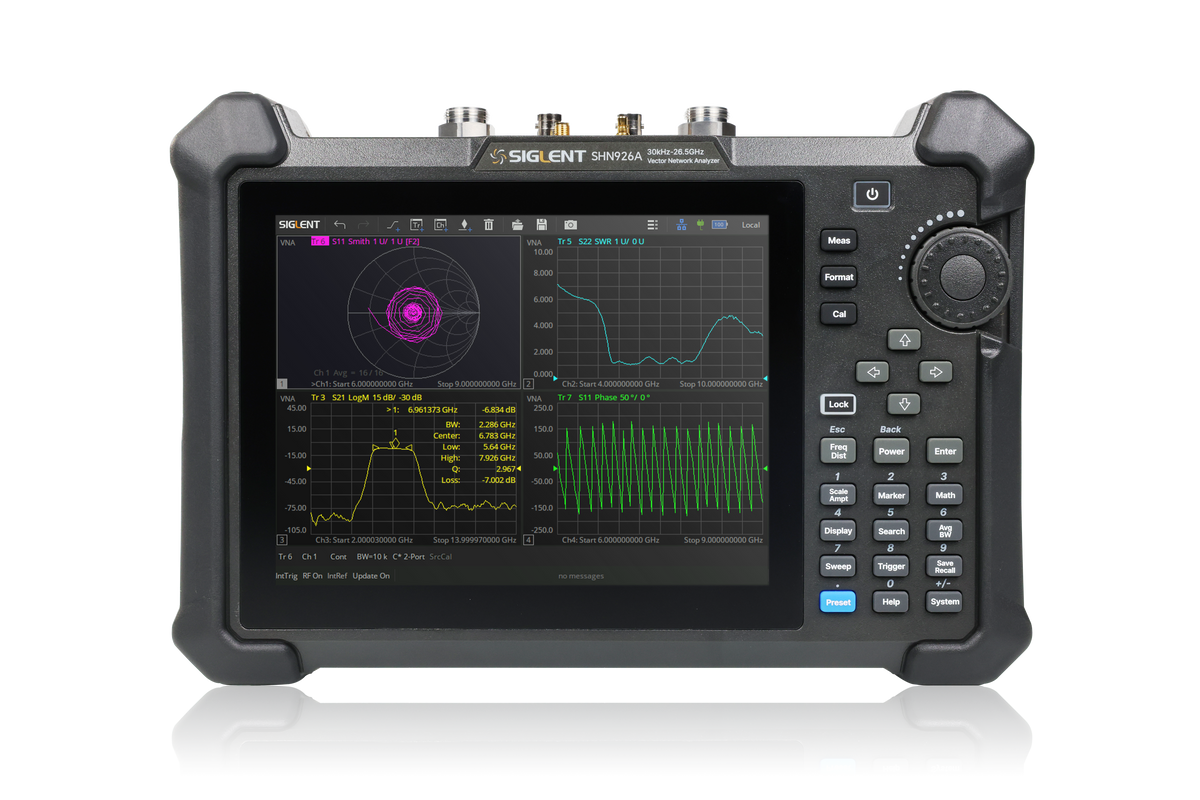

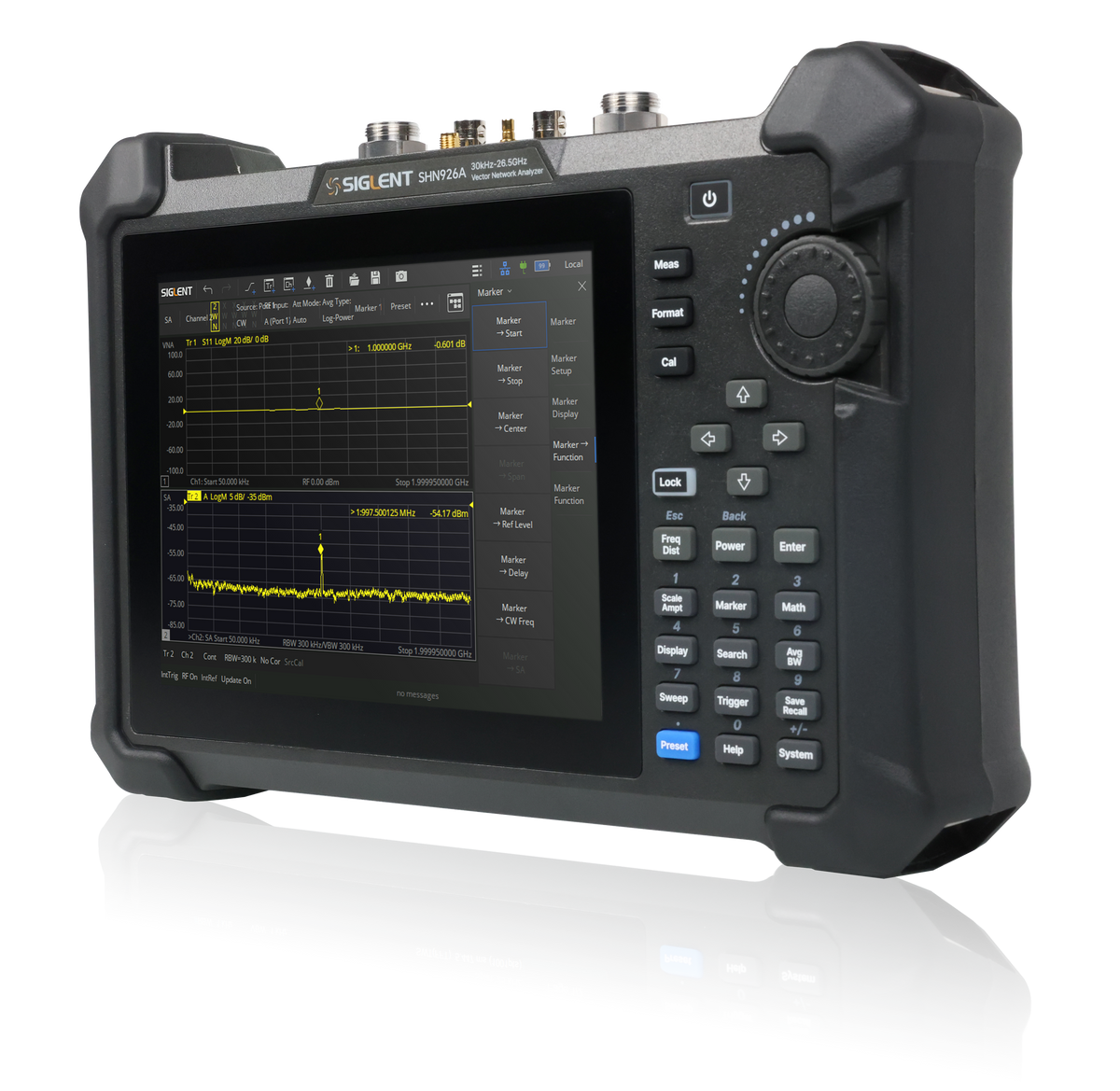

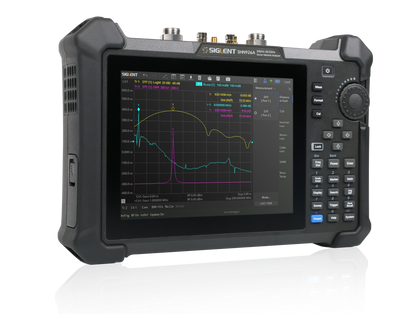

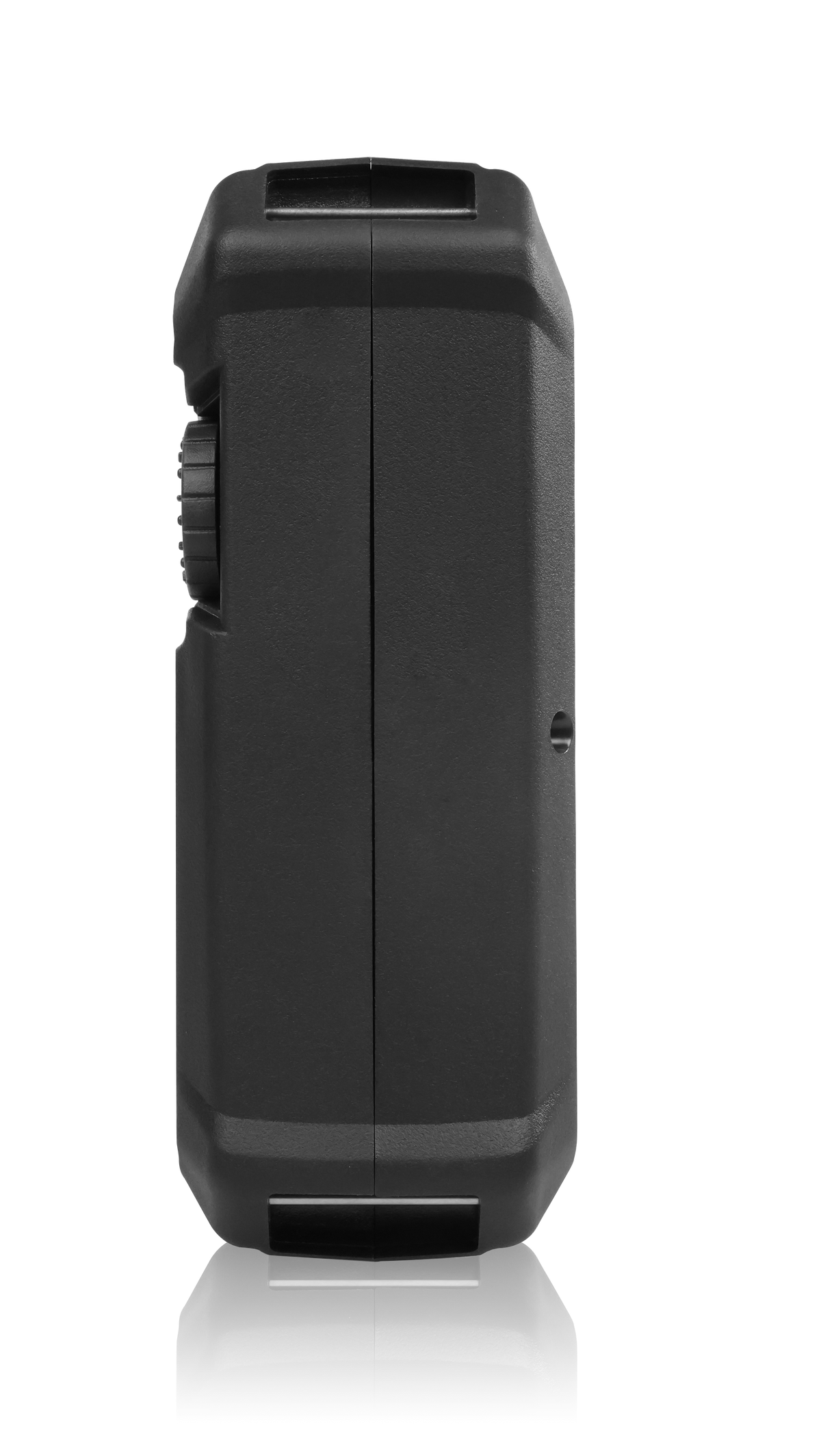

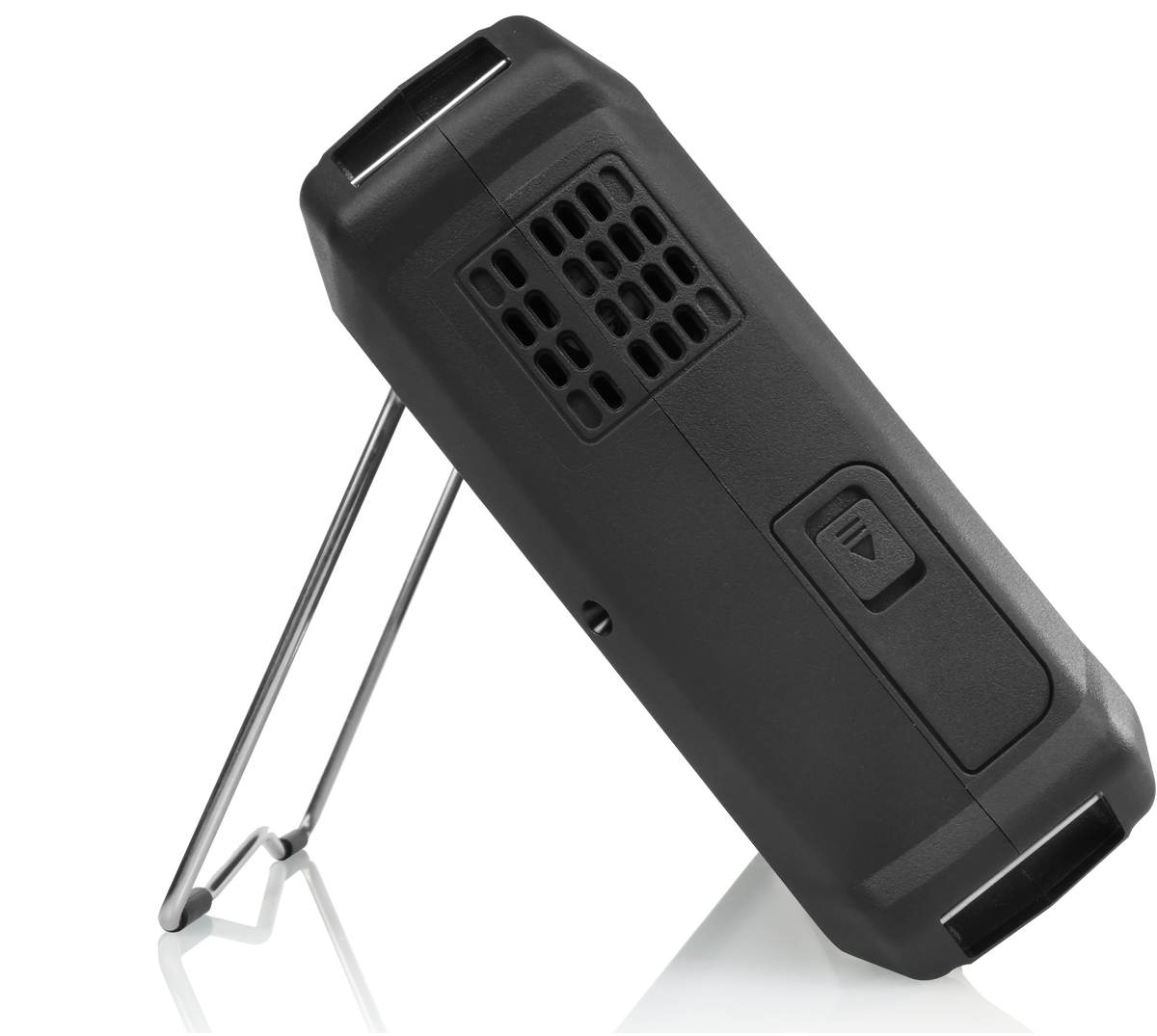

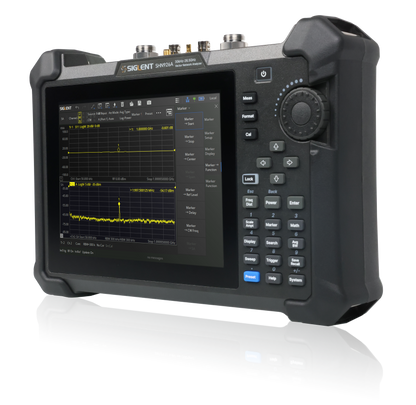

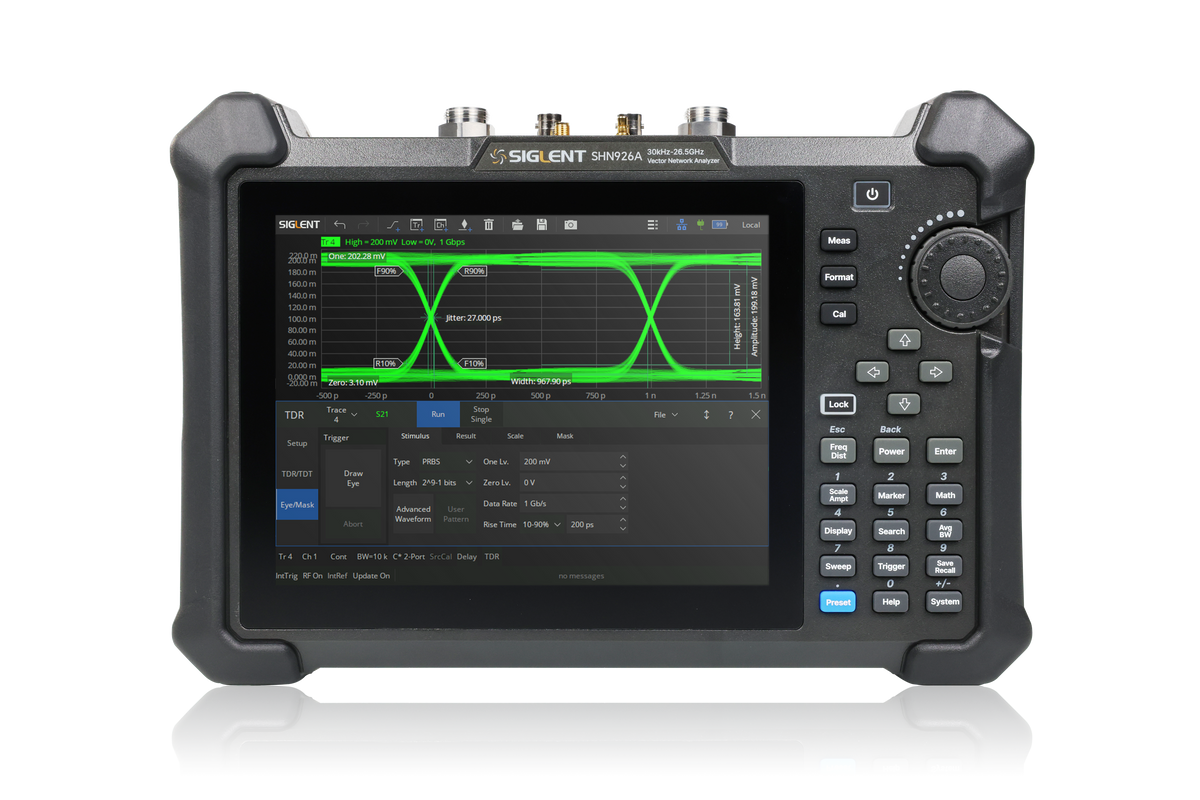

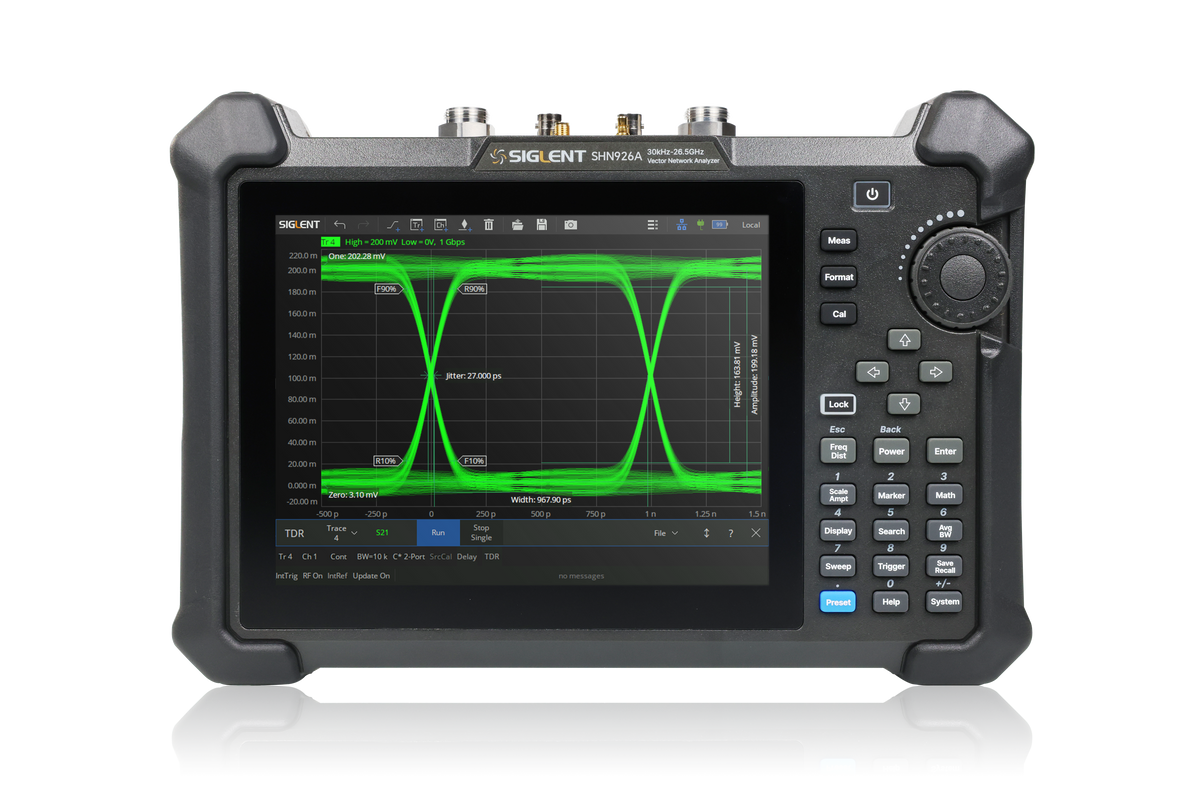

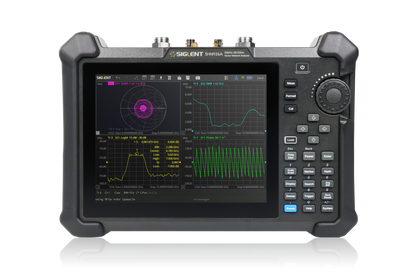

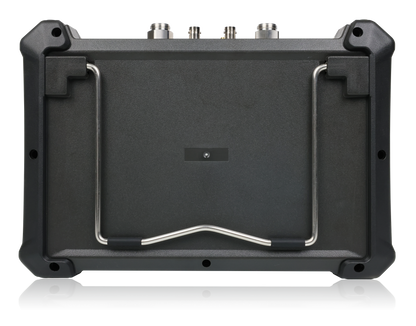

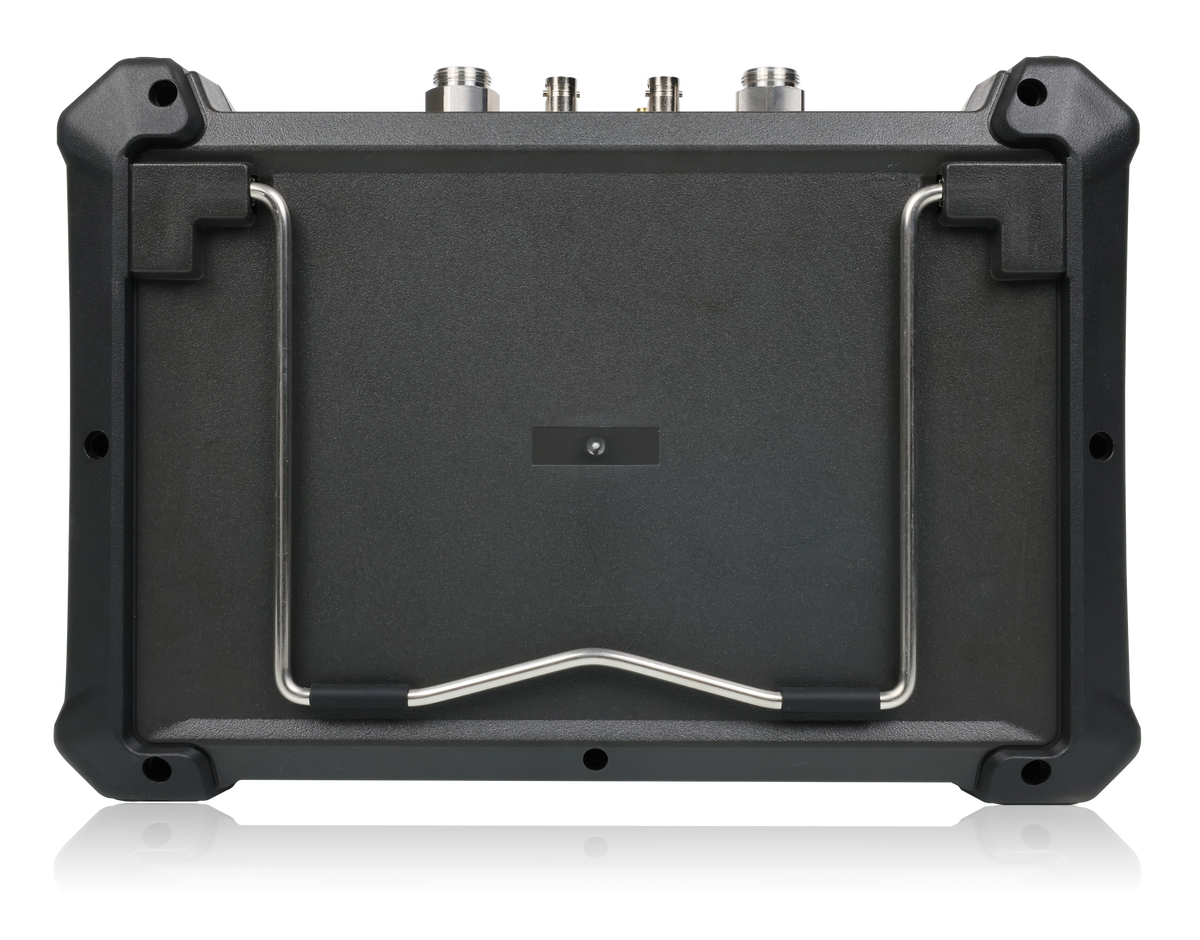

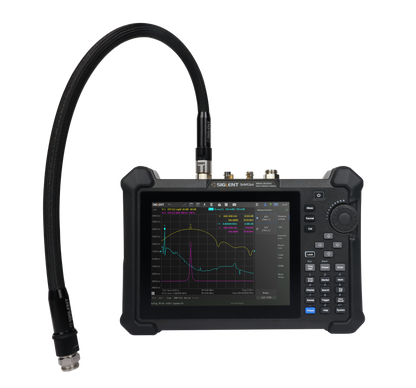

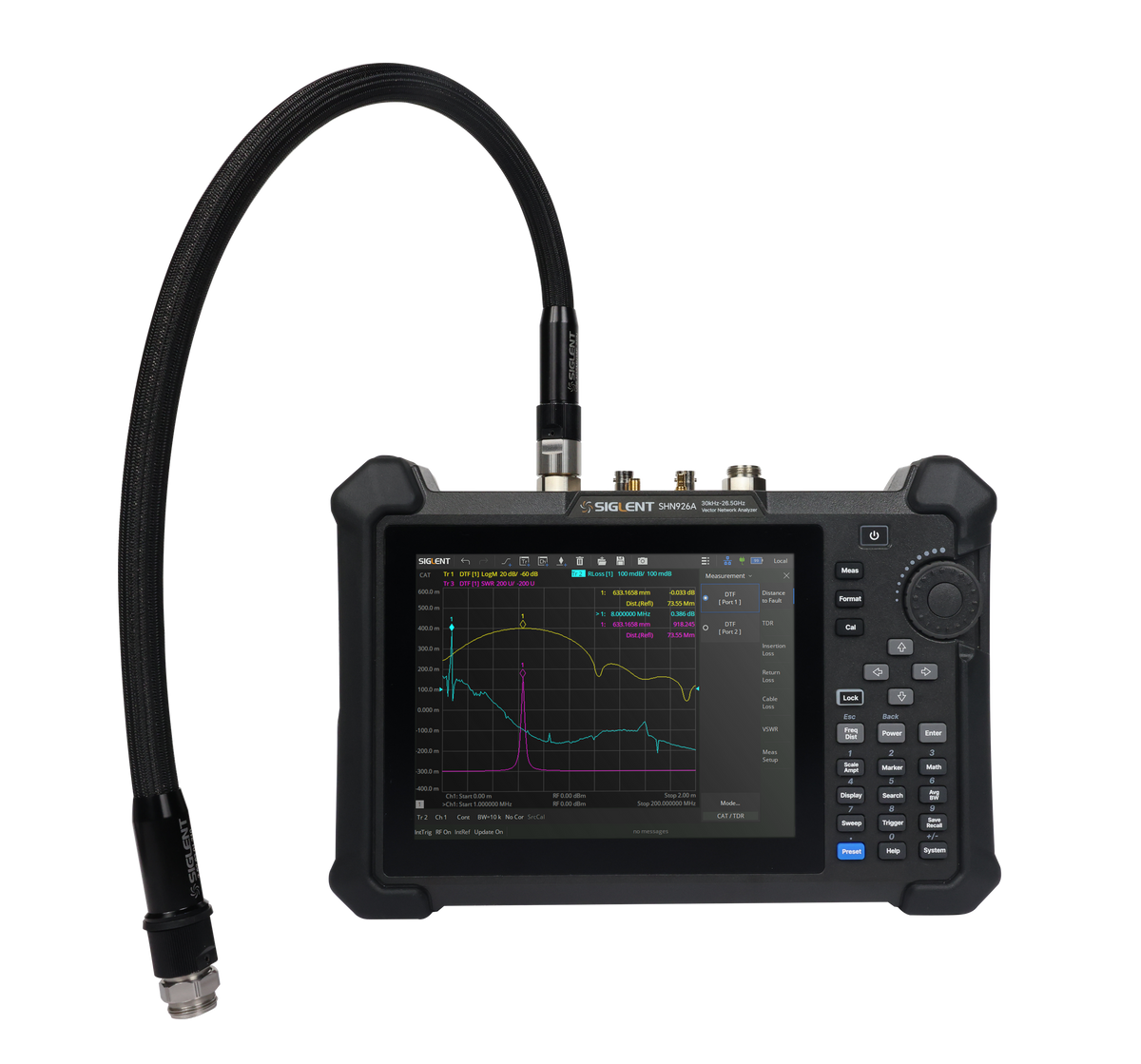

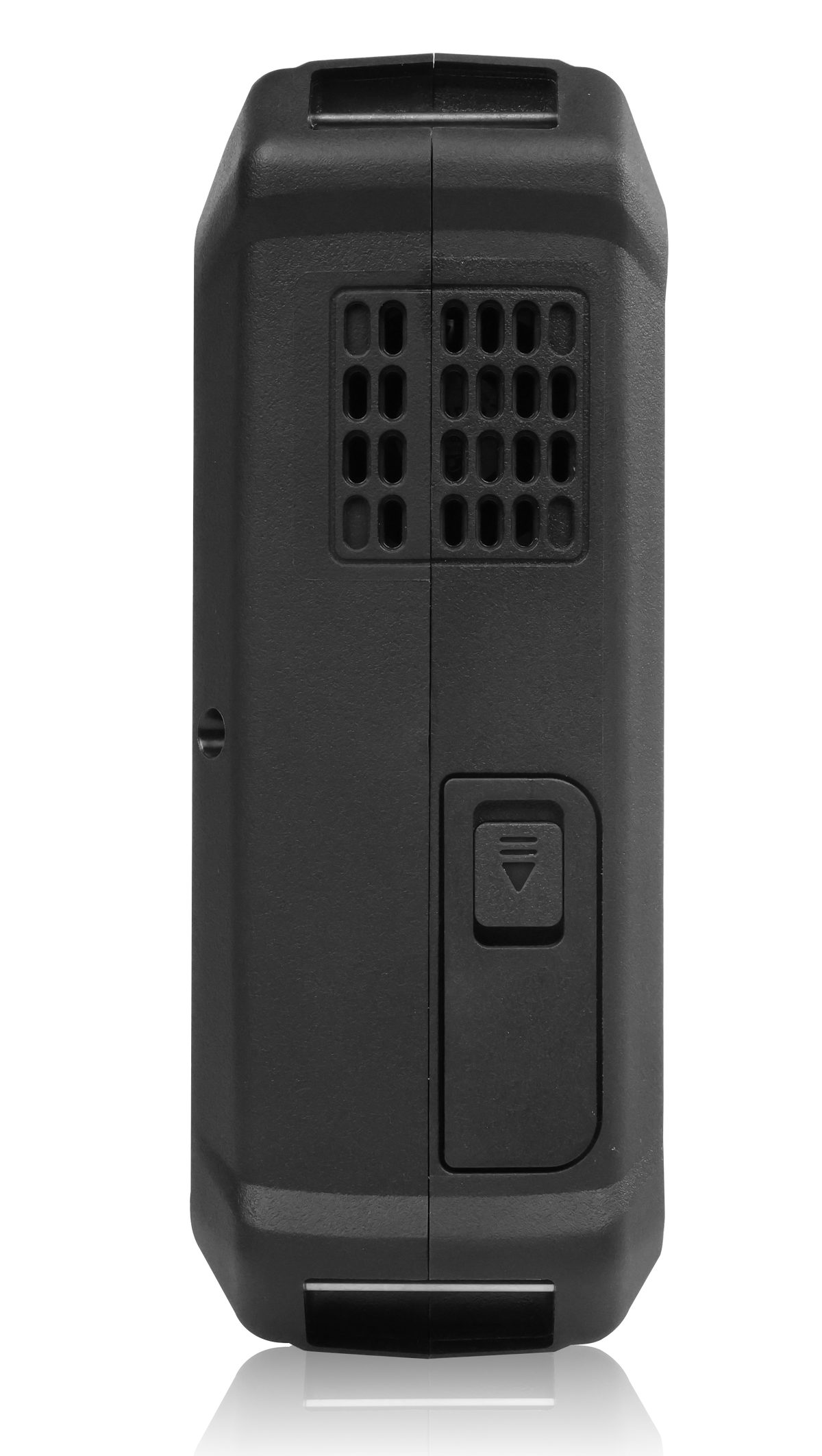

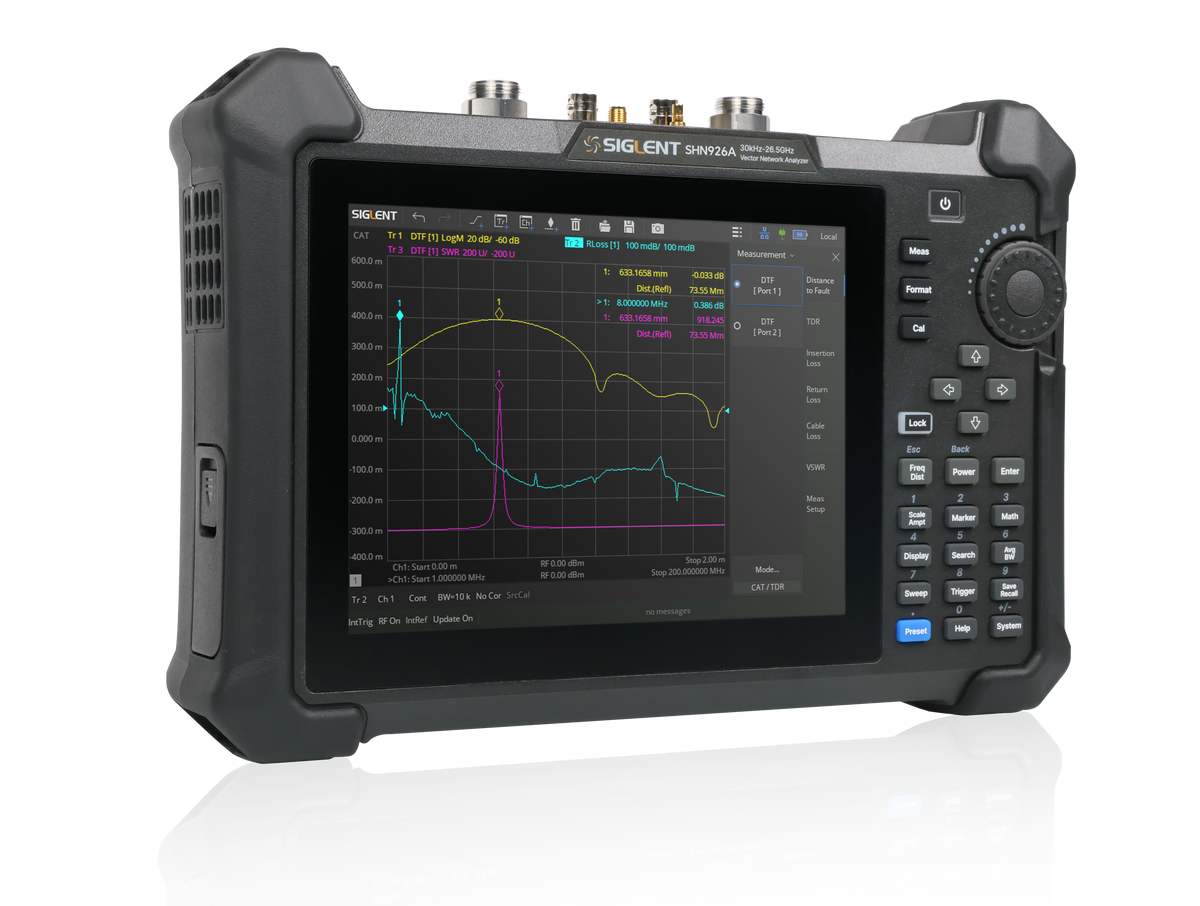

SHN900A Series Handheld Vector Network Analyzer

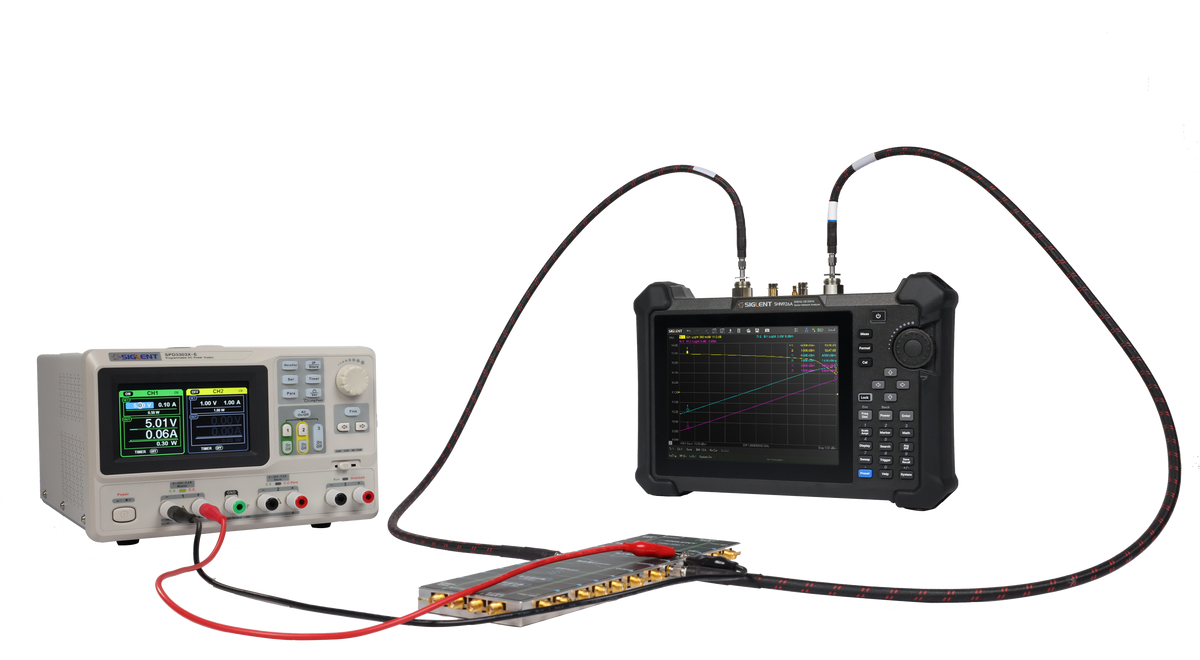

With its compact design and excellent performance, the SIGLENT SHN900A series is unique in the portable vector network analyzer market. Despite its small size, it is fully functional and supports high-frequency measurement and various test modes. It is especially suitable for on-site testing and rapid troubleshooting — an RF testing tool carried by electronic engineers.

Frequency range from 30 kHz up to 14 / 20 / 26.5 GHz (model dependent), 110 dB typical dynamic range, full 2-port S-parameters, standard CAT/DTF, Bias-Tee, GPS, and ~4 hour battery life. Optional spectrum analysis (SHN900-SA), time domain (SHN900-TDA), enhanced TDR (SHN900-TDR), and automatic fixture removal (SHN900-AFR) licences are available separately.

Frequency Range: 30 kHz – 14 GHz / 20 GHz / 26.5 GHz
Ports: 2
Frequency resolution: 1 Hz
Dynamic range: 110 dB (Typ.)
Range of IFBW: 10 Hz – 3 MHz
Output level: −45 dBm to +10 dBm
Standard Bias-Tee, GPS, CAT/DTF; ~4 h working time; < 3.2 kg; 8.4″ touch
