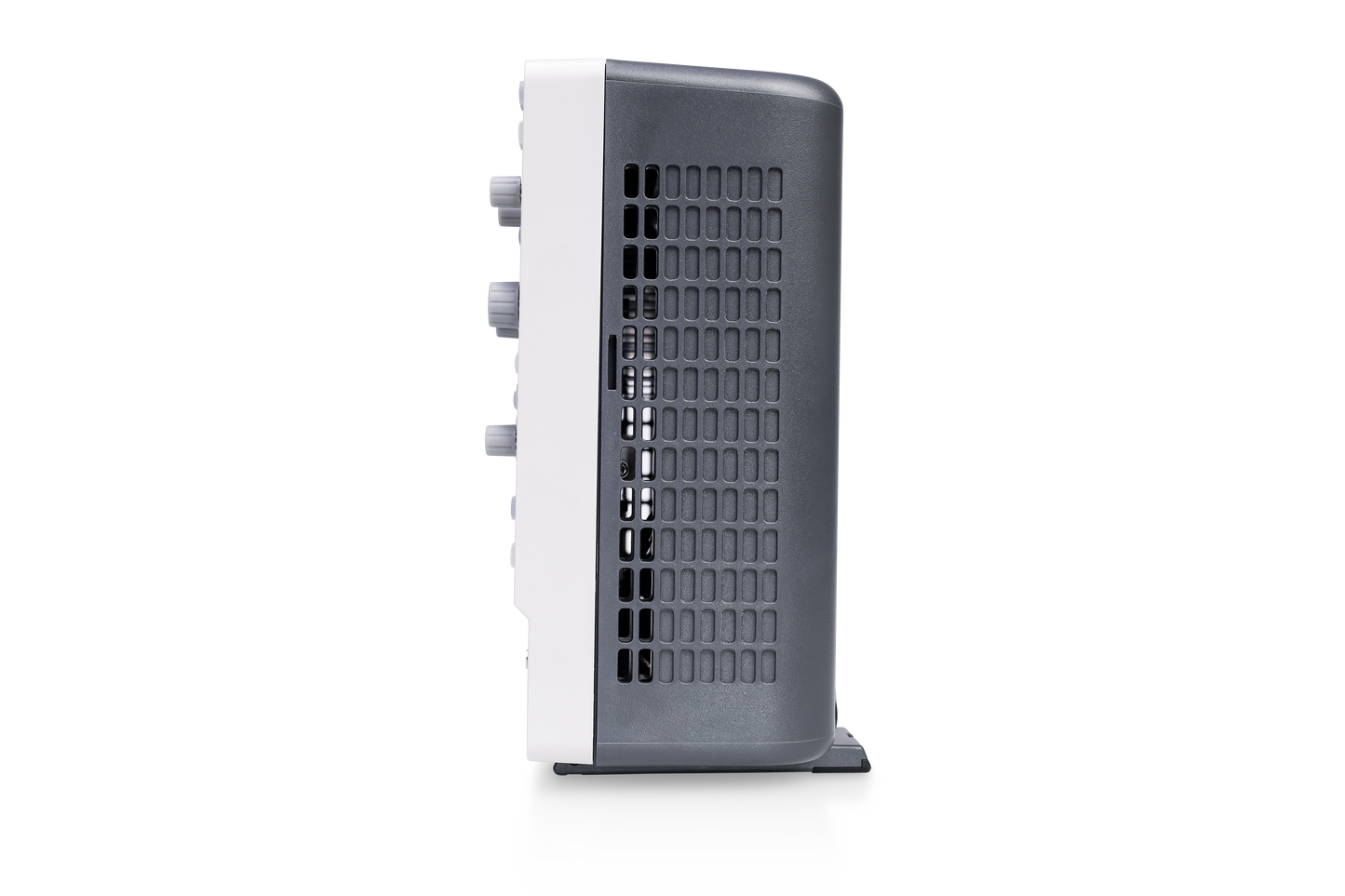

SDS6000A

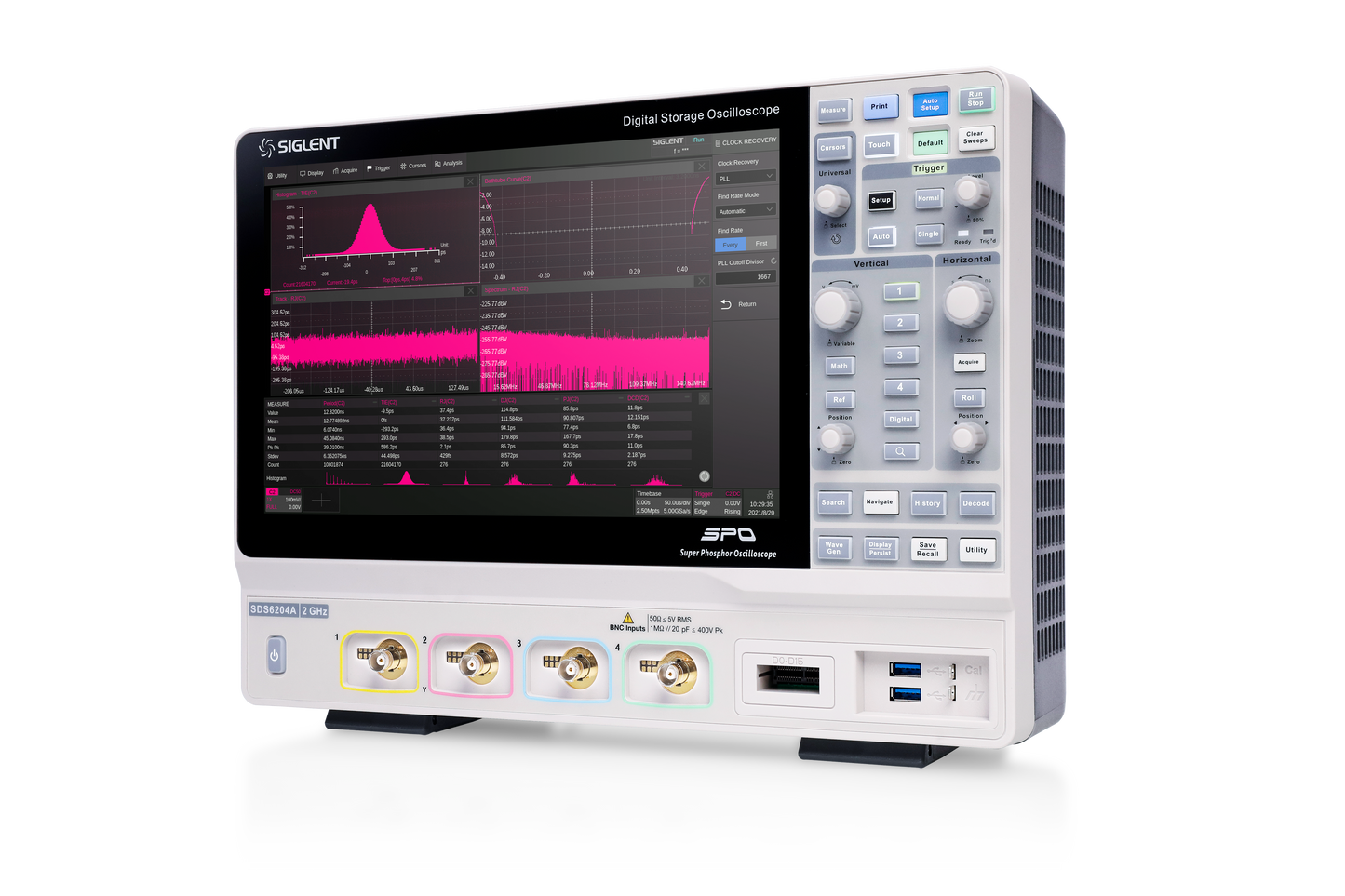

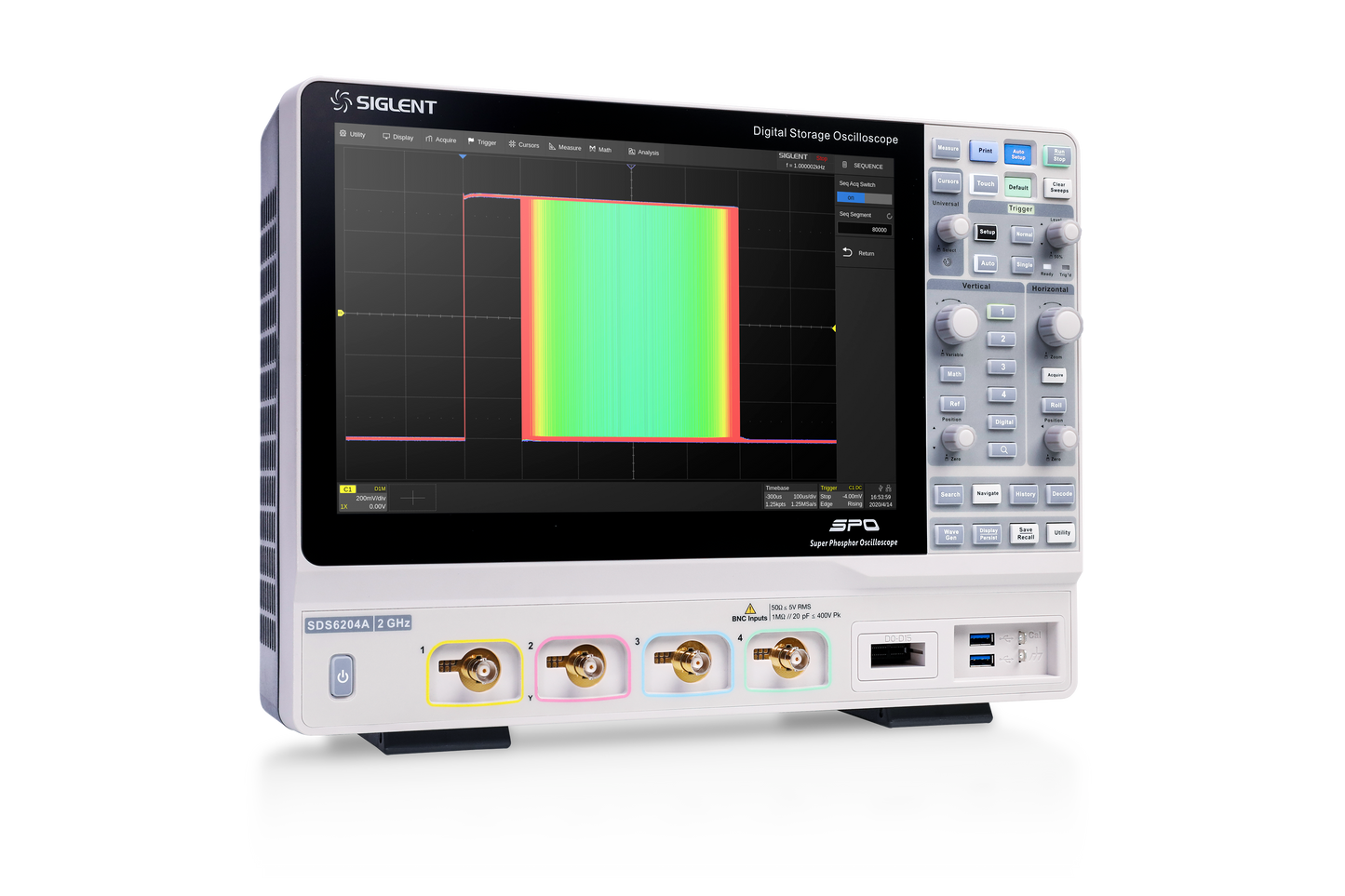

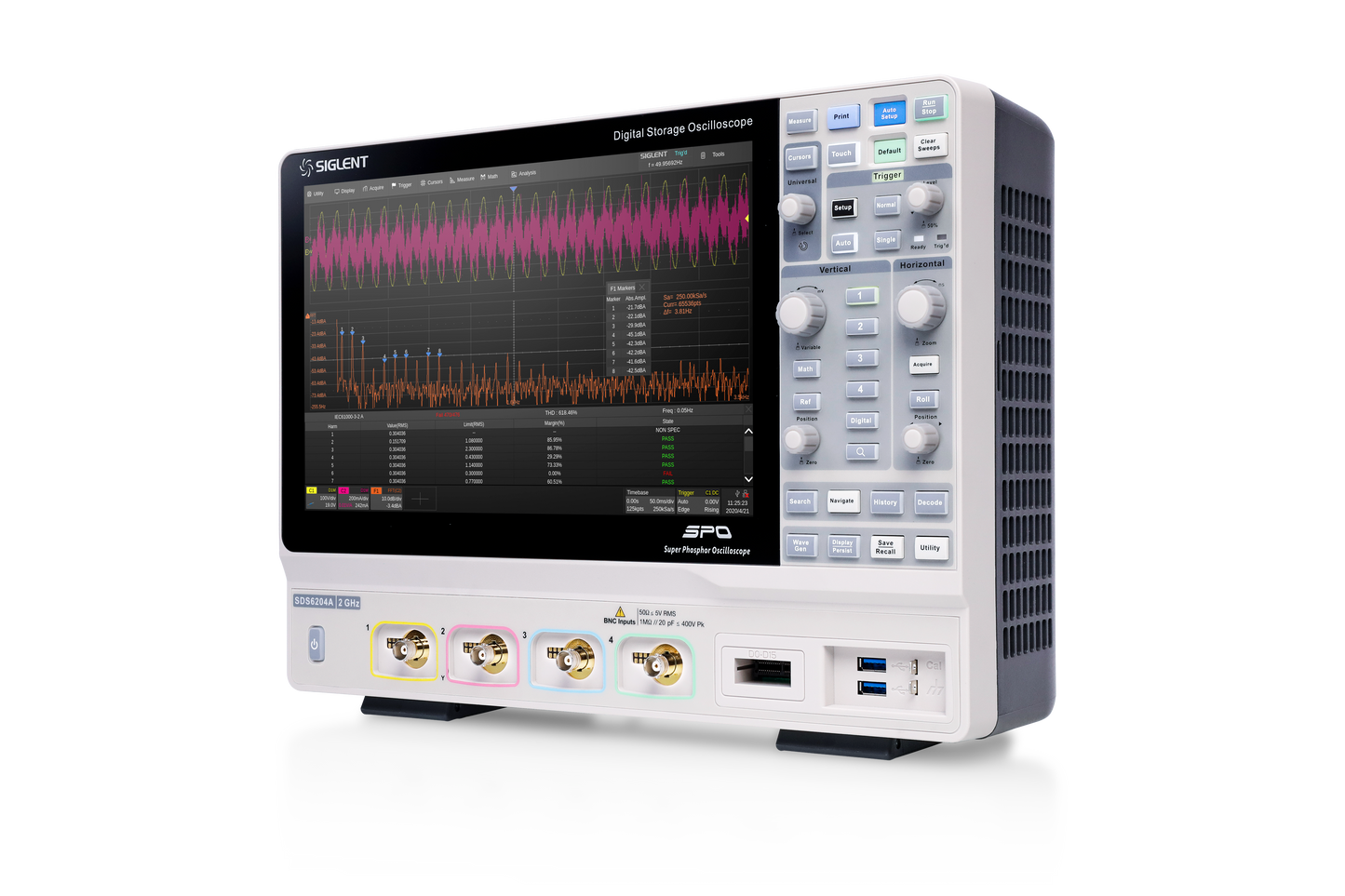

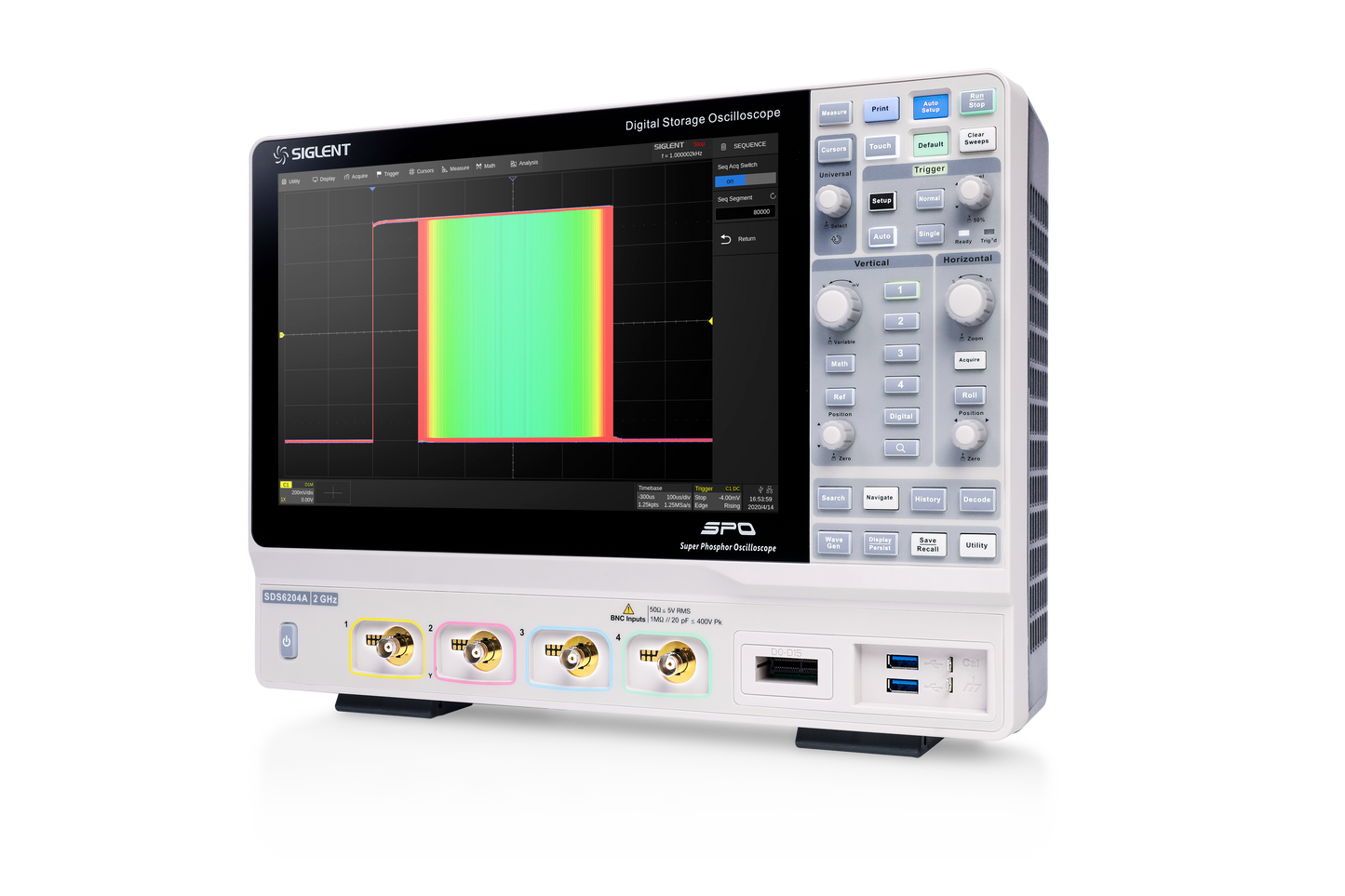

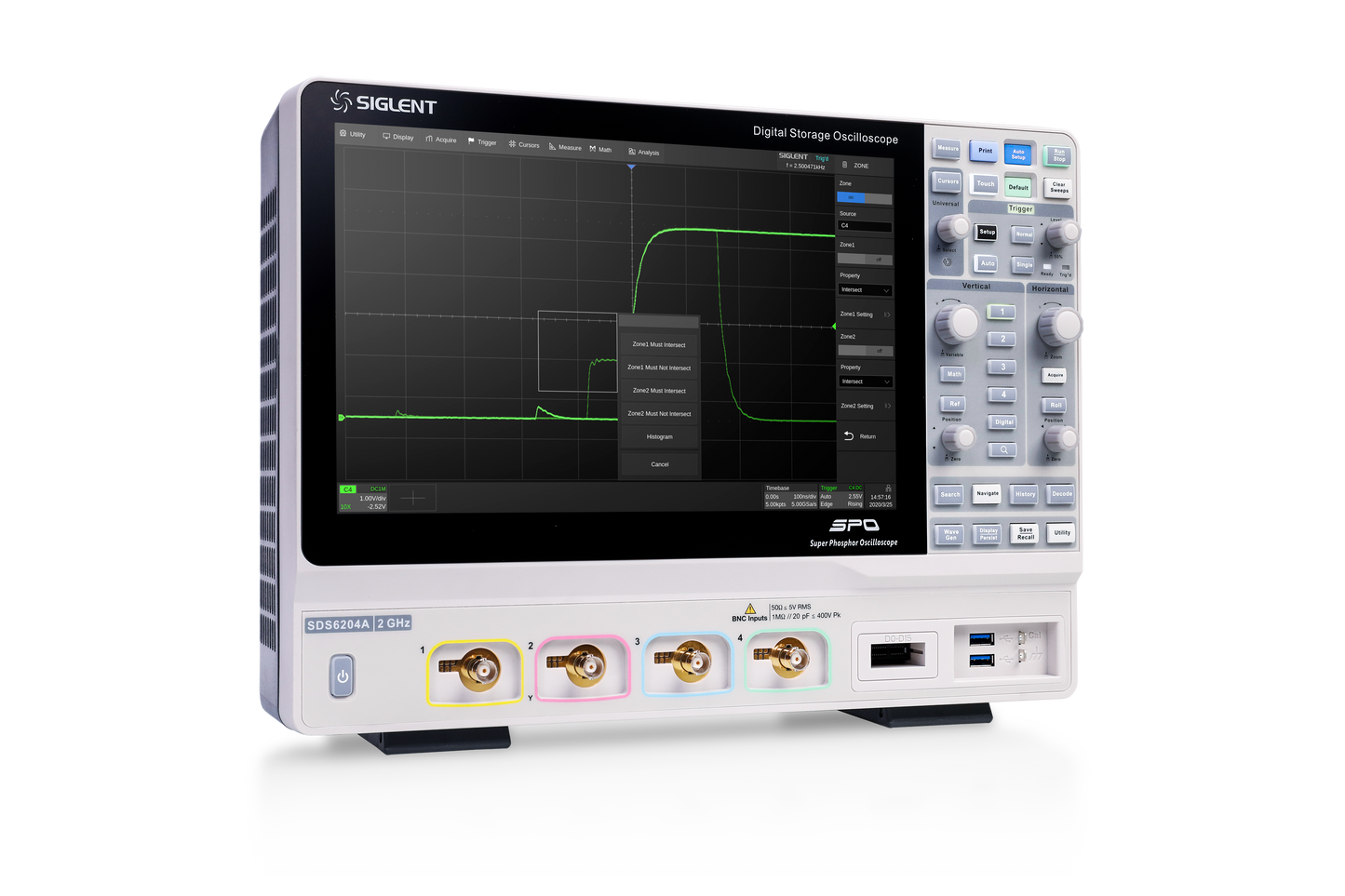

SIGLENT’s SDS6000A series Digital Storage Oscilloscopes are available in bandwidths of 2 GHz, 1 GHz, and 500 MHz, have a sample rate of 5 GSa/s (10 GSa/s ESR) at each channel, a maximum record length of 500 Mpts, and display up to 4 analog channels + 16 digital channels mixed-signal analysis ability.

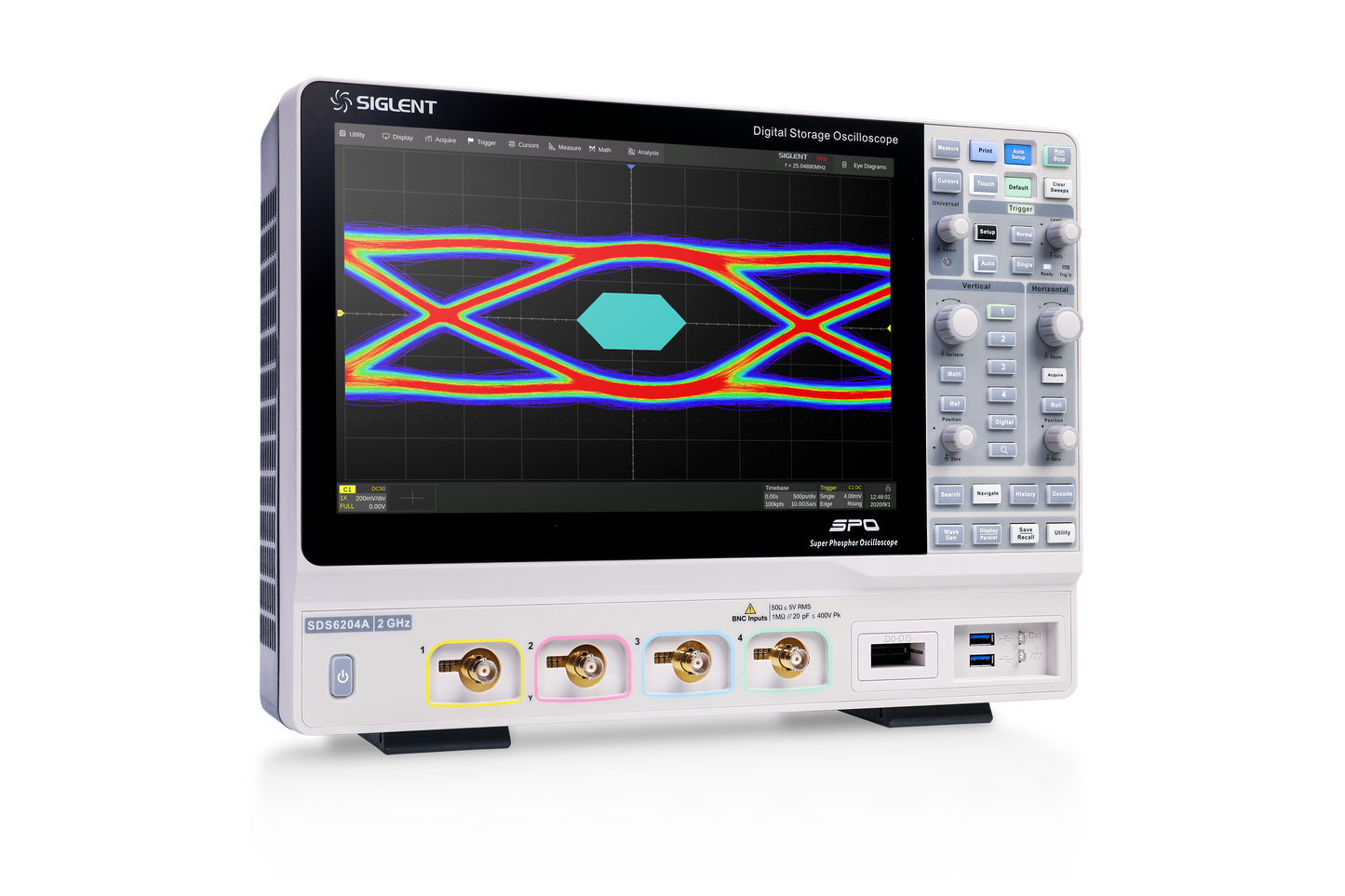

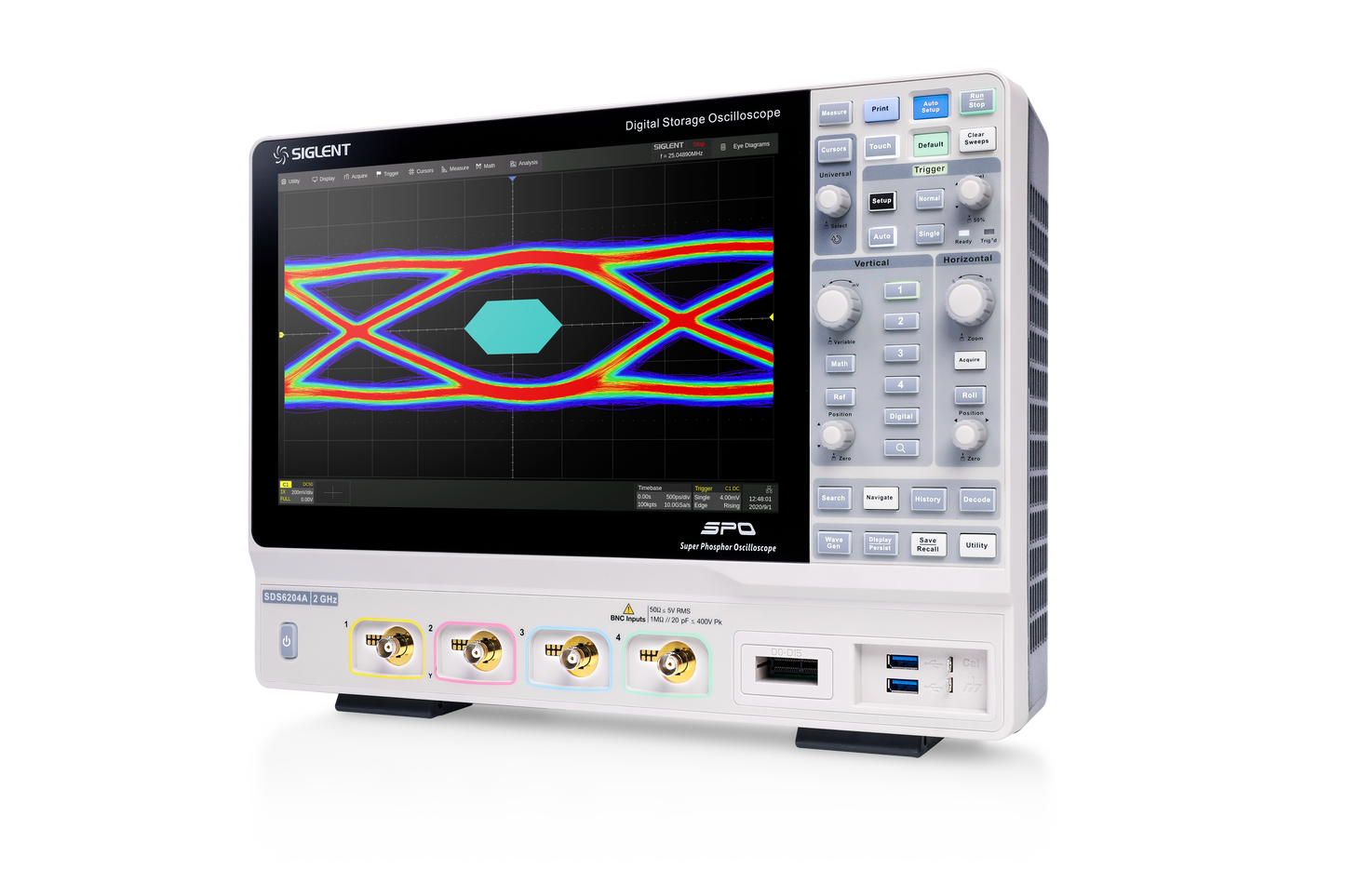

SIGLENT SDS6000A oscilloscope comes with 2 GHz bandwidth model. To protect customer’s investment, 500MHz model can be upgraded to 2 GHz after purchase. Provided with newly designed SAP2500 and SAP2500D active probes, eye diagram and jitter analysis are possible. SDS6000A comes with even more memory depth. 500Mpts combined with the hardware based zoom function, you can view large and small-scale signal details simultaneously. Sampling rate is up to 5GSa/s(10GSa/s ESR) per channel, even when you use all four channels at the same time. This fully improve the usability of four channels.

• Bandwidth： 500 MHz, 1 GHz, 2 GHz
• ADC：8-bit
• Real time sampling rate：5 GSa/s (10 GSa/s ESR) ADC per analog channel
• Record Length up to 500 Mpts
• Waveform capture rate up to 750,000 wfm/s (Sequence mode)
