Product Introduction

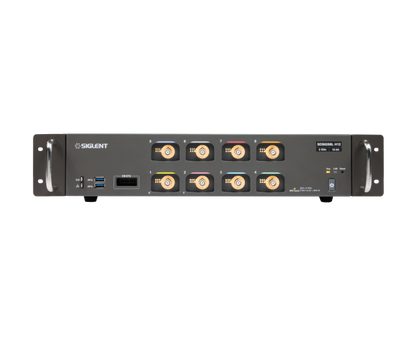

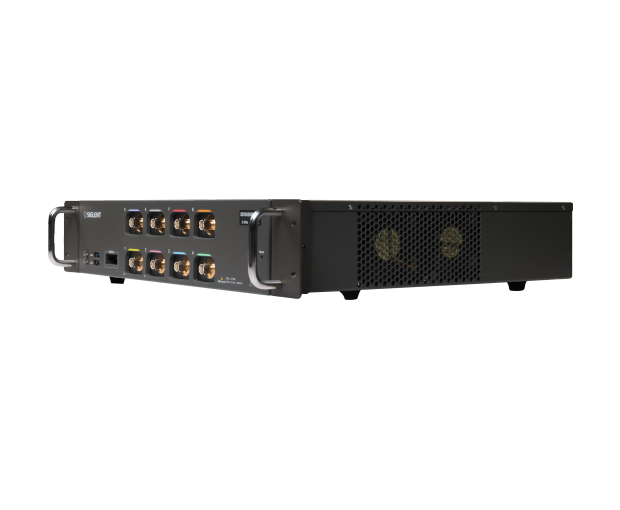

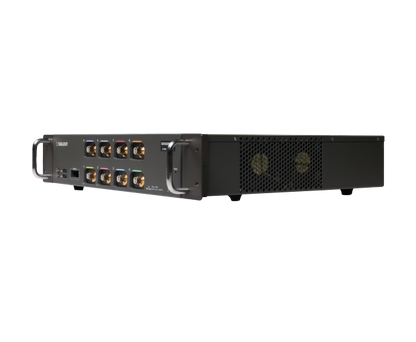

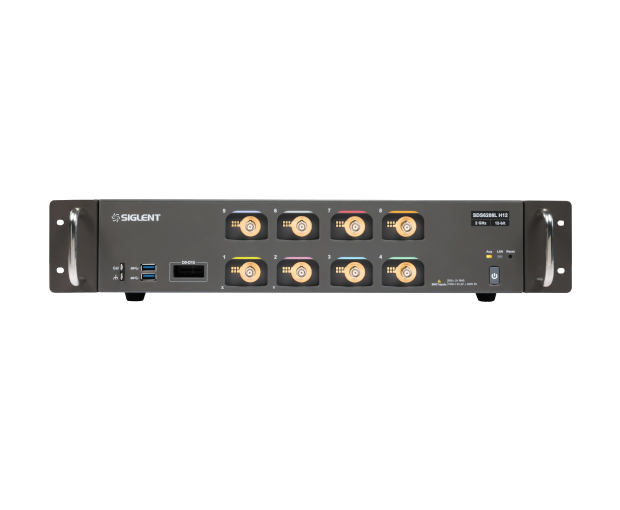

SIGLENT's SDS6000L series Low Profile Digital Storage Oscilloscopes provide up to 8 analog channels + 16 digital channels in a space-saving chassis. Available in 500 MHz / 1 GHz / 2 GHz bandwidths with a maximum sample rate of 5 GSa/s (10 GSa/s ESR) on each channel and up to 500 Mpts/ch record length. Multiple units can be combined into a high-speed acquisition system with up to 512 channels; it can also be used stand-alone with an external display and mouse.
