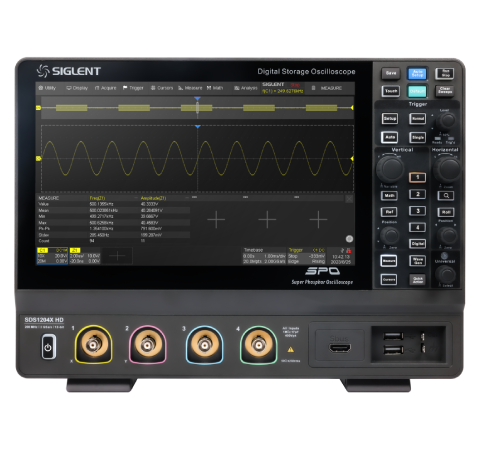

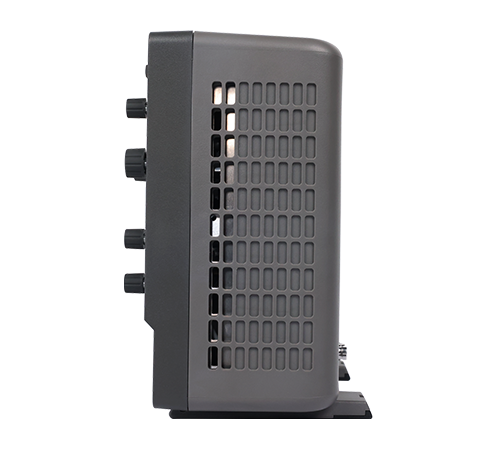

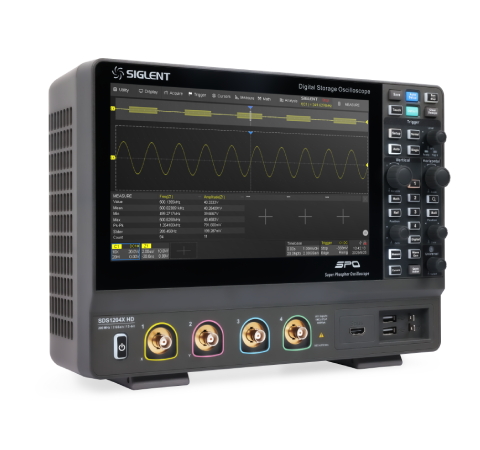

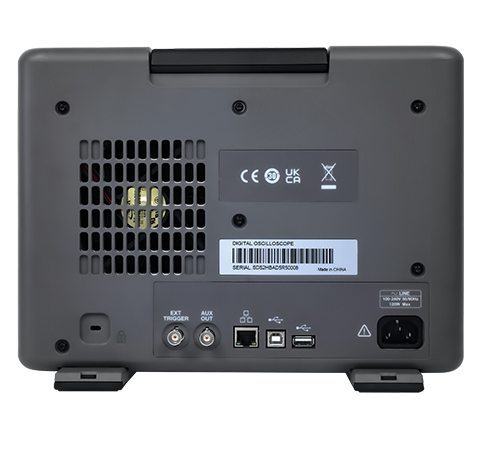

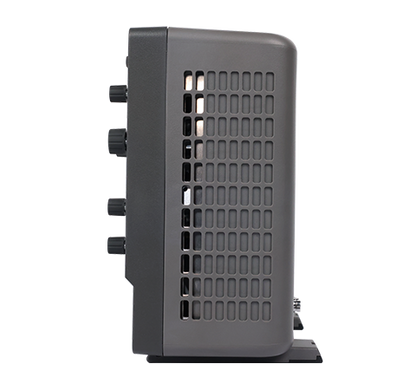

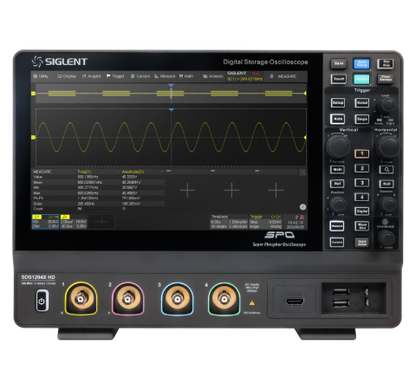

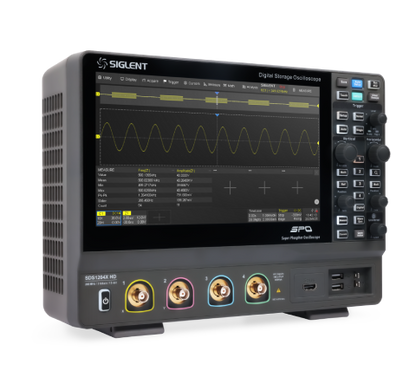

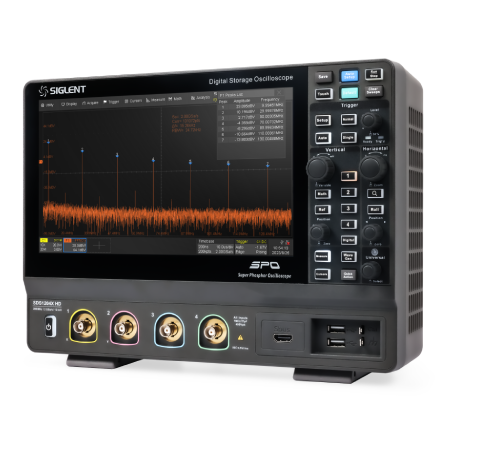

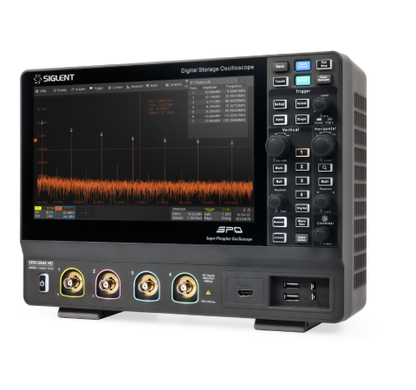

SDS1000X HD

SDS1000X HD series oscilloscopes not only retain their educational and friendly characteristics, but also improve their performance. The bandwidth is extended to100 MHz to 200 MHz to meet a wider range of teaching and experimental needs. The high-resolution display in HD mode makes the waveform more delicate and improves the learning experience.

perfectly restore waveform details SDS1000X HD adopts a 12-bit analog-to-digital converter, which can achieve 4096 quantization levels, which is 16 times the signal resolution of traditional 8-bit oscilloscopes. Combined with the excellent noise floor, it can make the captured waveforms appear more clearly on the screen, which is conducive to the user’s observation as well as accurate measurement.

• Bandwidth：100MHz，200 MHz
• ADC：12-bit
• Real time sampling rate： 2 GSa/s
• Memory Depth： 100 Mpts/ch（One channel mode）
• Capture rate：500,000 wfm/s（Sequence Mode）
• Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
