CDN M-type — Unscreened Mains Coupling Decoupling Networks

150 kHz to 230 MHz — M1/M2/M3/M4/M5PE families for IEC 61000-4-6 conducted immunity on power lines

Standards: IEC 61000-4-6

Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

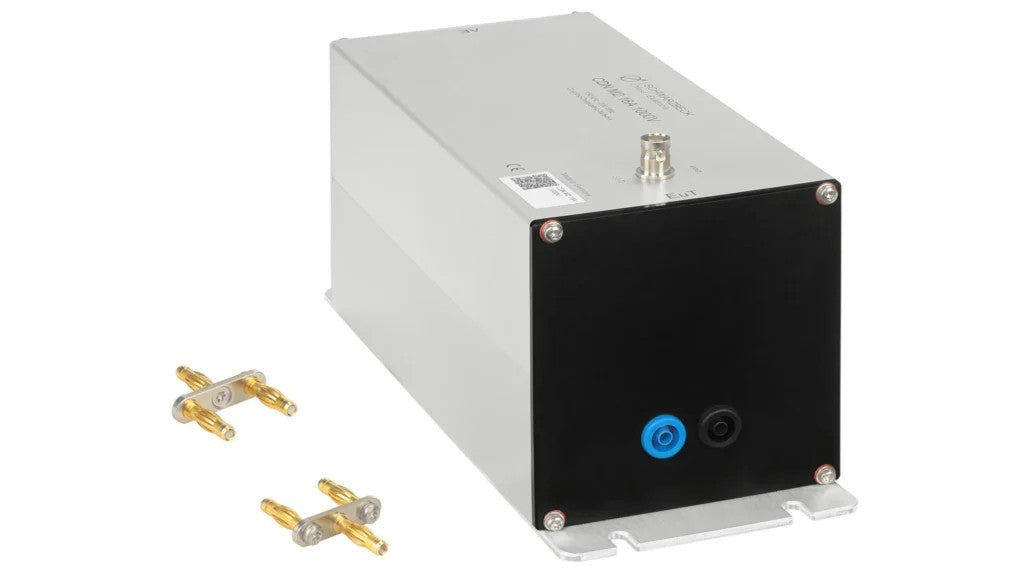

Schwarzbeck CDN M-type

Schwarzbeck M-type Coupling/Decoupling Networks for unscreened AC/DC mains and power-supply lines. IEC 61000-4-6 Annex D.2 style CDNs with 150 Ω common-mode impedance; frequency range typically 150 kHz to 230 MHz (CDN10 variants for extended low-frequency/NAMUR ranges).

Key Features

  • Mains / power-supply CDNs (M1–M5PE)
  • 150 kHz to 230 MHz (standard types)
  • Currents from 16 A up to 300 A (model-dependent)
  • Up to 1000 V / 1500 V EUT ratings by model
  • 4 mm safety banana EUT/AE interfaces on typical models

Standards: IEC 61000-4-6

Frequency range: 150 kHz – 230 MHz
