Product Introduction

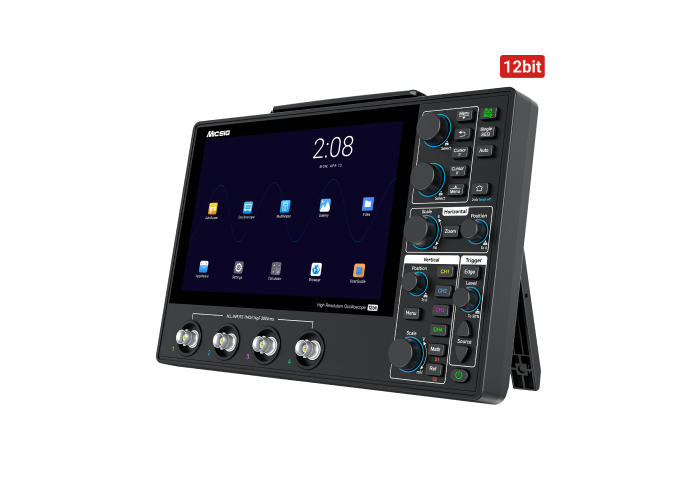

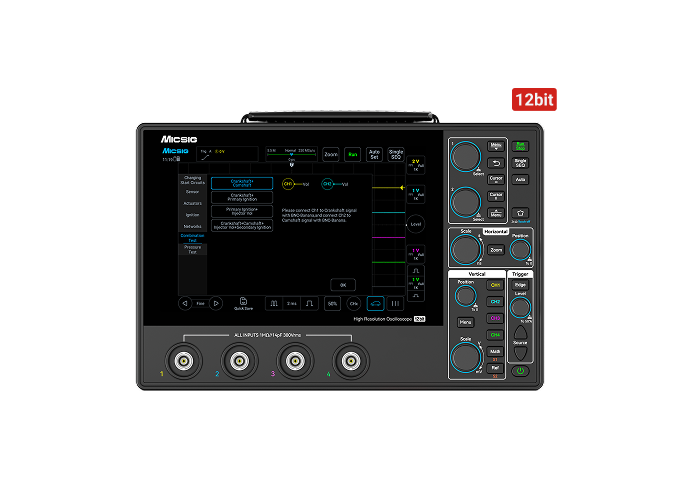

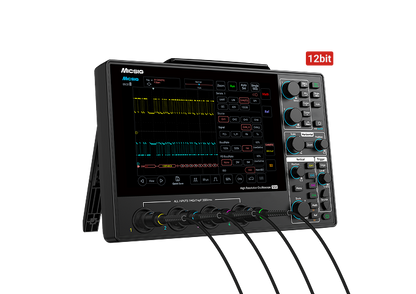

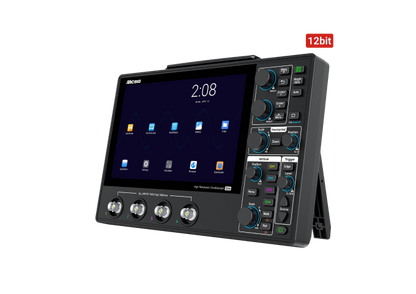

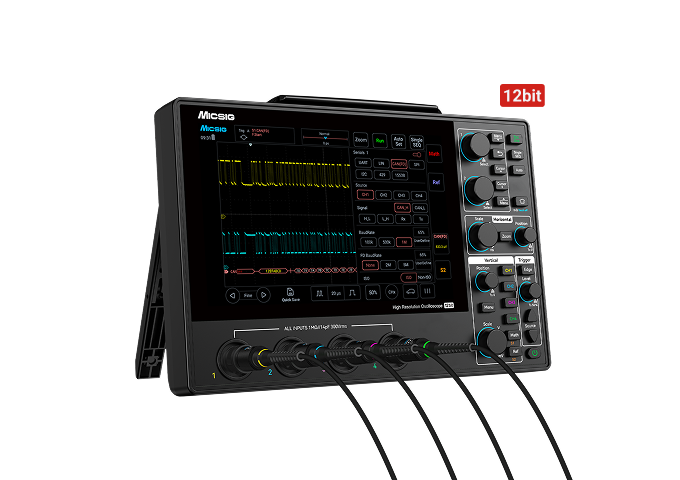

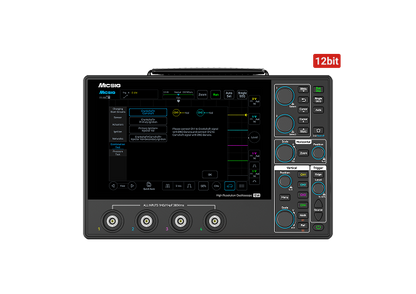

Micsig SATO Series is a professional high resolution automotive oscilloscope designed for vehicle diagnostics. It features a 12 bit ADC, 100 MHz bandwidth, 4 analog channels, a real time sampling rate of 1 GSa/s, and a memory depth of 110 Mpts. Its ultra slim 3.1 cm portable design, built in high capacity Li ion battery, and USB Type C charging makeit ideal for mobile and outdoor repair applications. With an innovative general / automotive dual- software architecture and dedicated test modes for engines, sensors, and EV systems, it supports both ICE and new energy vehicle diagnostics, helping technicians troubleshoot faster and improve service efficiency. Automotive / General Oscilloscope Function With dedicated automotive and general-purpose oscilloscope software, it meets both professional vehicle diagnostic and general electronic measurement.
Specifications
| Model | SATO1004 |
| Bandwidth | 100MHz |
| Analog Channels | 4 |
| Real-time Sampling Rate | 1GSa/s |
| Rise Time | ≤ 3.5ns |
| Memory Depth | 110Mpts |
| Vertical Resolution | 12bit |
| Max. waveform Capture Rate | 50,000wfms/s |
| Interfaces | USB 3.0 Host、USB Type-C、LAN、HDMI |
| Support Test | Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests |
| Display | 8" TFT LCD capacitive touch screen, 1280*800 pixels |
| Battery | 3.7 V, 16000mAh Lithium-ion battery |
| Charging | Standard DC 12V adapter, supports Type-C 5V charging |
| Dimension | 265*174*31mm（Width*Height*Thickness） |
