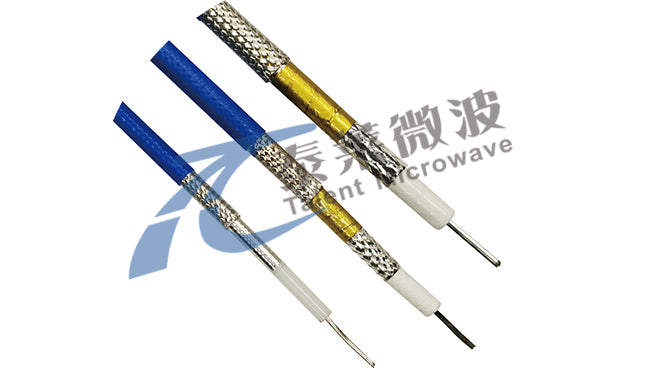

S Series Low-Loss Phase-Stable Cable Assembly
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
S Series low-loss phase-stable flexible cable assemblies offer a cost-effective solution up to 40 GHz for test systems and equipment interconnection.
Key Features
- Low-loss phase-stable flexible cable, 50 Ω
- Up to 40 GHz (S0)
- Mechanical phase stability ±3.5° @ 18 GHz
- Phase change vs. temperature ≤ 1500 ppm
- Assembled with customer-specified connectors and length
Model Options
| Model | Frequency | Jacket OD | Velocity | Mech. Phase @18 GHz | Atten. @6 GHz (dB/m) | Atten. @18 GHz (dB/m) | Atten. @40 GHz (dB/m) | Datasheet |
|---|---|---|---|---|---|---|---|---|
| S0 | DC-40 GHz | 3.6 mm | 74 % | ±3.5° | 1.08 | 1.91 | 2.91 | |
| S1 | DC-26.5 GHz | 4.6 mm | 76 % | ±3.5° | 0.88 | 1.58 | NA | |
| S2 | DC-26.5 GHz | 5.2 mm | 76 % | ±3.5° | 0.69 | 1.25 | NA | |
| S3 | DC-18 GHz | 6.2 mm | 76 % | ±3.5° | 0.56 | 1.02 | NA | |
| S4 | DC-18 GHz | 7.62 mm | 76 % | ±3.5° | 0.45 | 0.82 | NA | |
| S5 | DC-8 GHz | 12 mm | 76 % | ±3.5° | 0.34 | NA | NA | |
| S6 | DC-6 GHz | 14.7 mm | 76 % | ±3.5° | 0.27 | NA | NA |
Lengths and connector combinations can be customised. Please contact us for a quotation.
