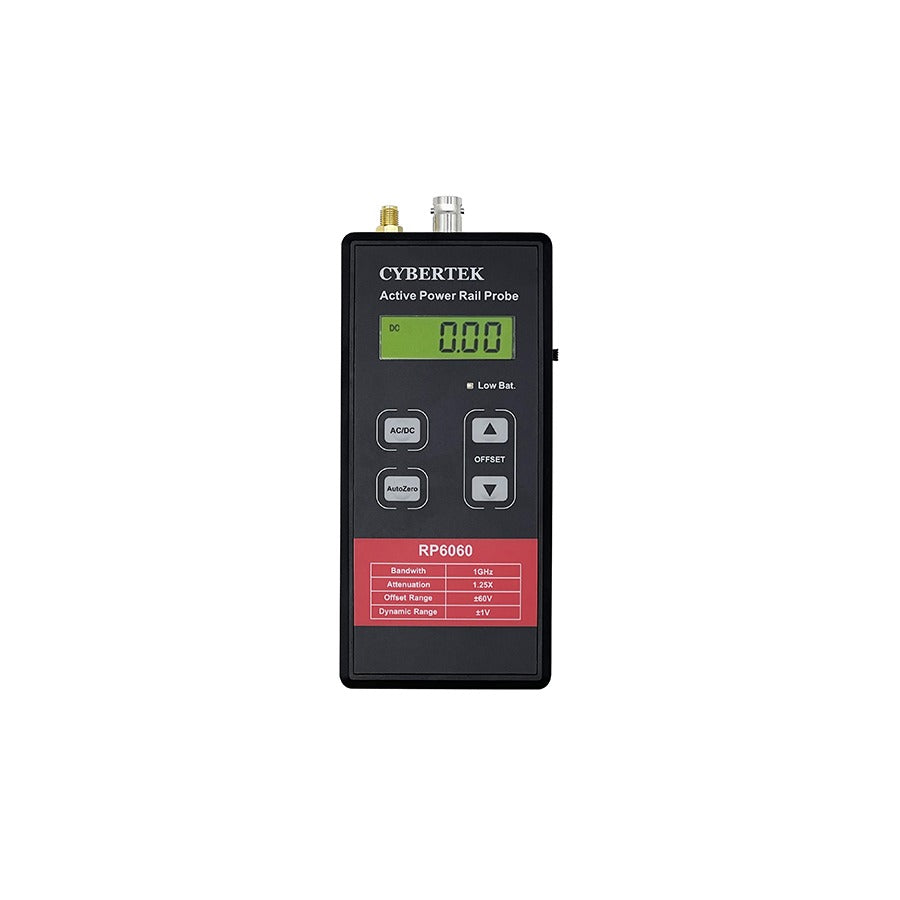

RP6060 Power Rail Probe ±60 V Offset, 1 GHz

Key Features

  • DC offset range ±60 V
  • Bandwidth DC–1 GHz
  • Low noise: <300 µVpp at 20 MHz bandwidth
  • Auto DC-offset zero and manual offset adjust
  • USB and battery dual power
  • 50 Ω SMA / MMCX cables supplied
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The RP6060 power rail probe is a low-noise, large-offset solution for measuring ripple and noise on DC power rails. Its ±60 V DC offset range brings the AC ripple of a DC rail to the center of the oscilloscope screen, which most oscilloscopes cannot do on their own.

With DC–1 GHz bandwidth, low probe noise and an auto DC-offset zero button, it is ideal for PDN, point-of-load and switching-regulator ripple analysis. USB and battery dual power.

Models & Specifications

Specification RP6060
Bandwidth DC–1 GHz
DC Offset Range ±60 V DC
Noise <300 µVpp (20 MHz BW), <3 mVpp (1 GHz BW)
Accuracy ±1%
Power Supply USB and battery
Cables 1.3 m 50 Ω SMA–MMCX and SMA–SMA

Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
