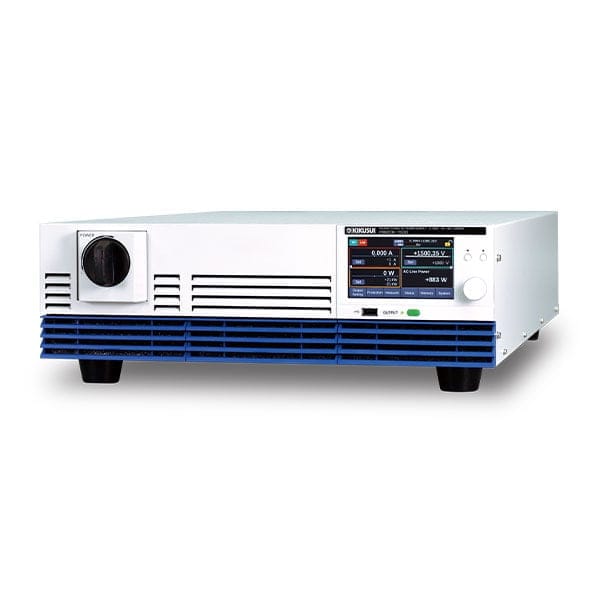

PXB 50V-1500V 10kW-20kW

  • High power density: 20 kW in 3U size
  • A single unit handles both power and regeneration
  • Rated output voltage 50 V/ 100 V/ 250 V/ 500 V/ 1000 V/ 1500 V
  • Select a model with an input voltage from 200 Vac (3-phase) or
    400 Vac (3-phase)
  • Continuous operation at rated power at ambient temperature of 50°C (Excluding some models)
  • Up to 25 units (500 kW) can be operated in parallel
  • Equipped with touch panel display
  • LAN, USB, RS232C, external analog control (isolated type) standard
  • Regenerative function (on-site)
  • External control I/O is standard for both NPN and PNP type PLCs
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

Bidirectional High-Capacity DC Power Supply

PXB Series

The PXB series of bidirectional high-ca-pacity DC power supplies condenses
a 20 kW large-capacity output into a 3U-size chassis. Not only handling high
voltages of 1500 V, but also capable of both power and regeneration in both
directions in a single unit. We provide a new power supply test environment for
electrical and electronic equipment that is becoming increasingly high-pow-
ered. In addition, a variety of analog, digital, and communication interfaces
are provided for optimal operation at any stage of research, development,
and manufacturing! A new generation of bidirectional DC power supplies that
support the progression of advanced technologies.
