Sequence Function
Synchronized operation using trigger signals
Communication Interface
LAN (LXI compliant) /USB/RS232C as standard interface
Front Output Terminals
Equipped with front output terminal as standard *Up to 10 A
Wide Range
3 to 4 times coverage ratio for voltage and current range
Variable Internal Resistance Function
Easy simulation of power supplies carrying internal resistance made possible
Durable Performance
Operating temperature guaranteed up to 50 ºC.

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

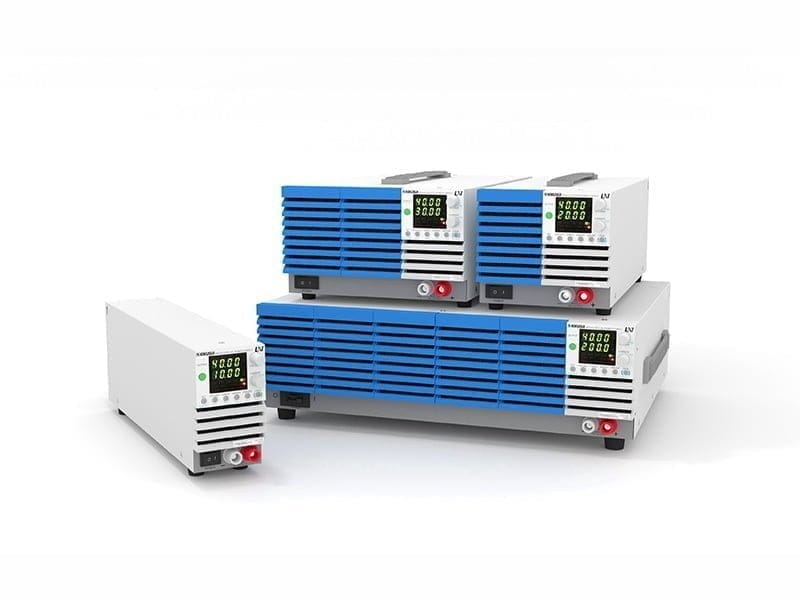

Compact Wide Range DC Power Supply

PWR-01 Series

A wide range of voltage and current settings can be combined within
its output power rating (3 to 4 times)
LAN (LXI compliant) /USB/RS232C as standard interface
Sequence creation software : Wavy for PWR-01
All models are equipped with front output terminals as standard
Variable internal resistance function

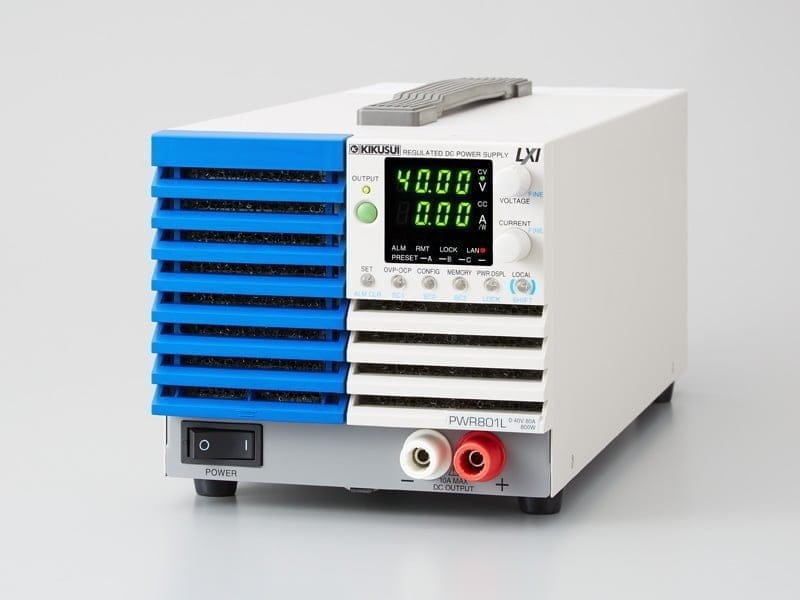

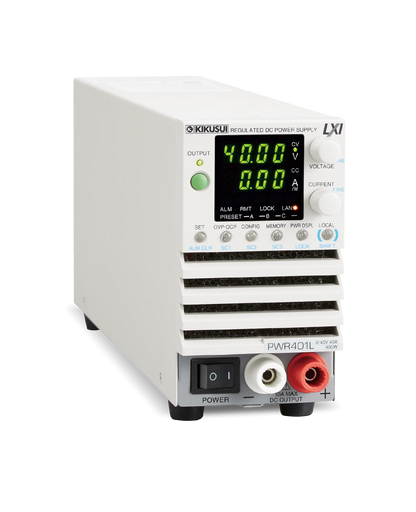

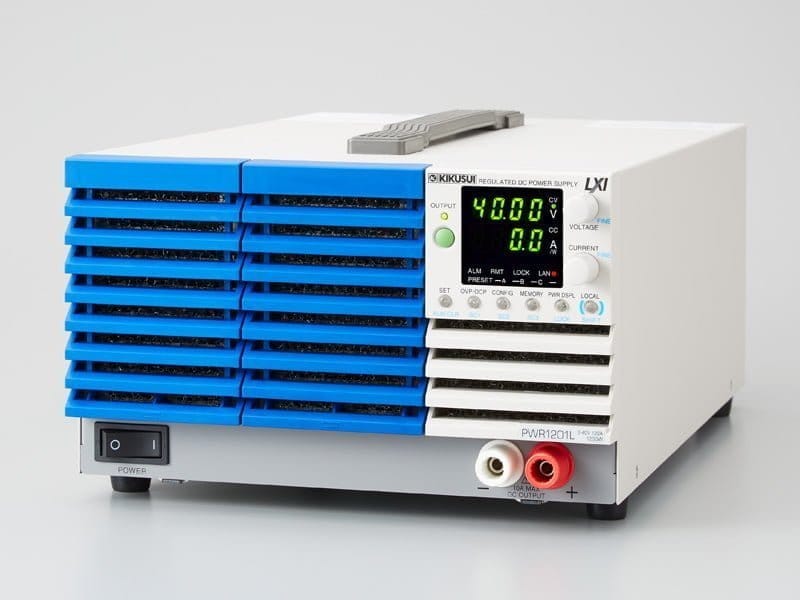

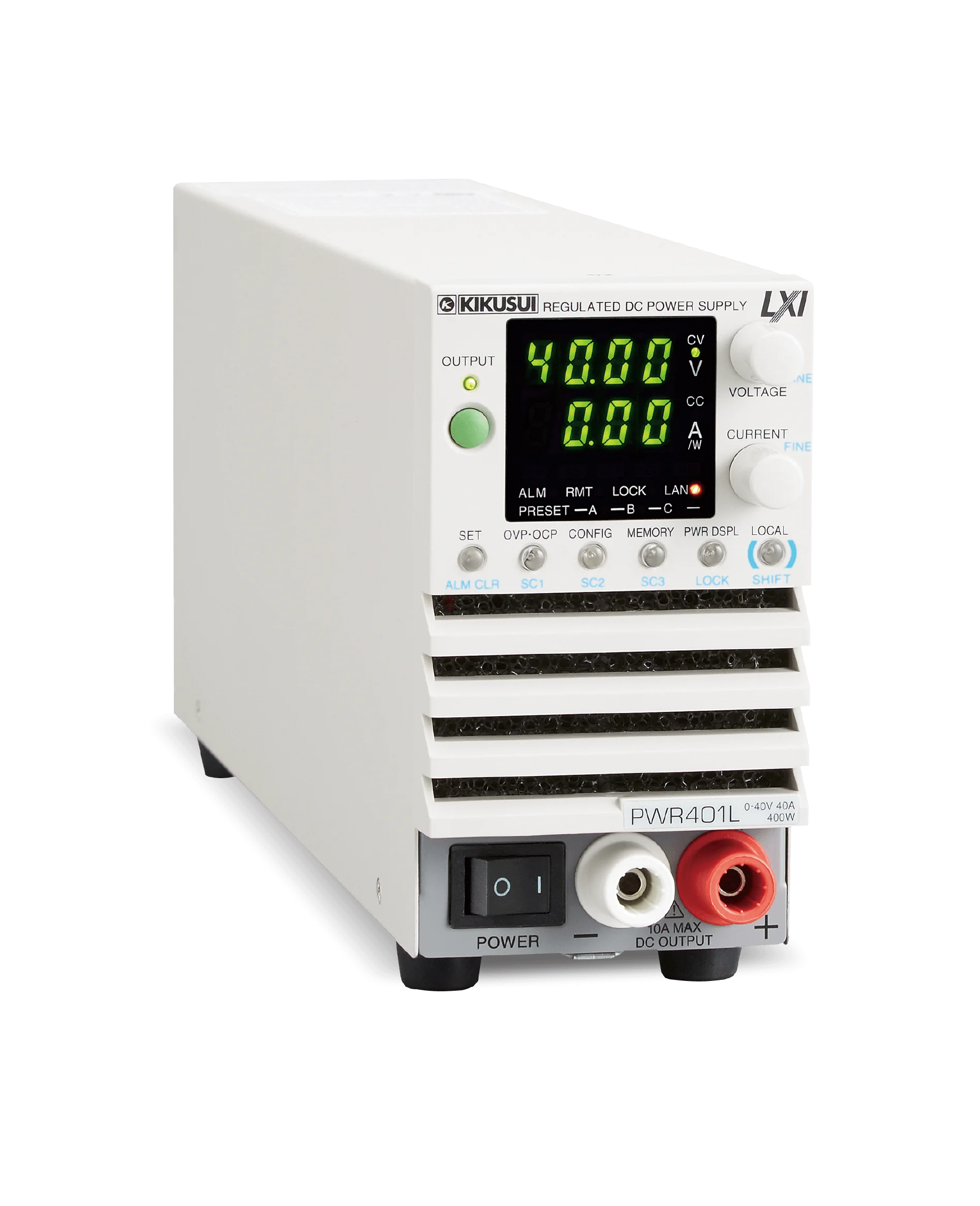

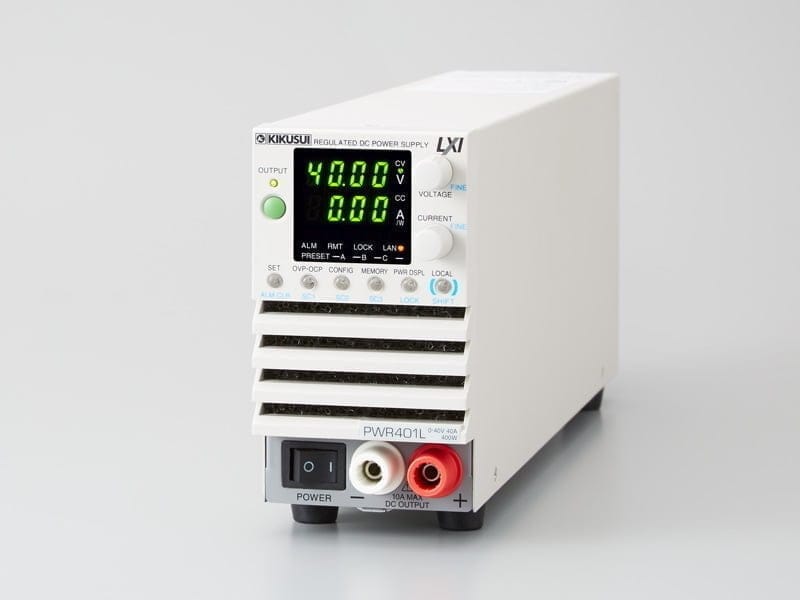

The PWR-01 is a series of high performance, multifunctional, compact, wide-range DC power supplies. It consists of 16 models in total with 4 maximum voltage outputs (L, ML, MH, and H) and 4 maximum power outputs (400 W, 800 W, 1200 W and 2000 W).
The series is equipped with LAN (LXI), USB, and RS232C as standard interfaces that are essential for system integration.
The PWR-01 also features front-facing output terminals, variable internal resistance, bleeder ON/OFF functions, CC/CV priority switching function, synchronized operation, various protections, and programmable internal memory.
