PS200 Series Current Sensor Power Supply 1/2/4/8 Channels

Key Features

  • 1, 2, 4 or 8 channels
  • ±15 V output, up to 1.5 A per channel
  • LEMO sensor connectors
  • Overload and overvoltage protection
  • For CTA and CTV current transducers
  • PS201 runs from 12 V DC
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

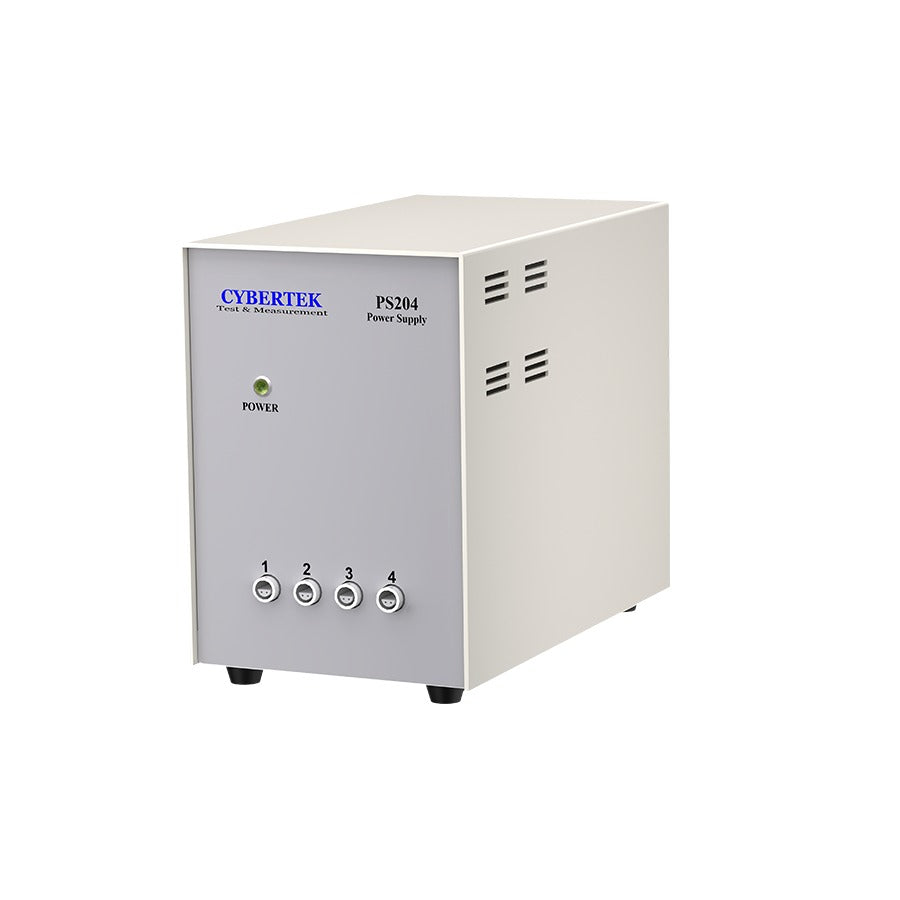

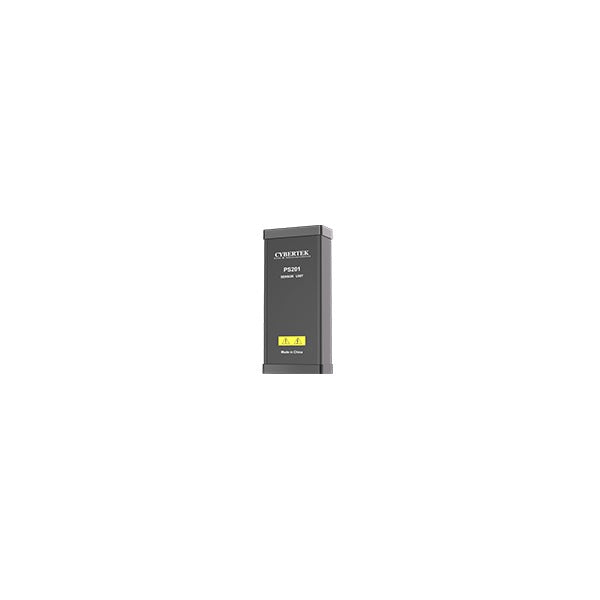

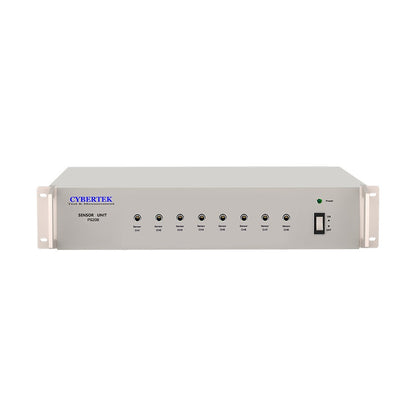

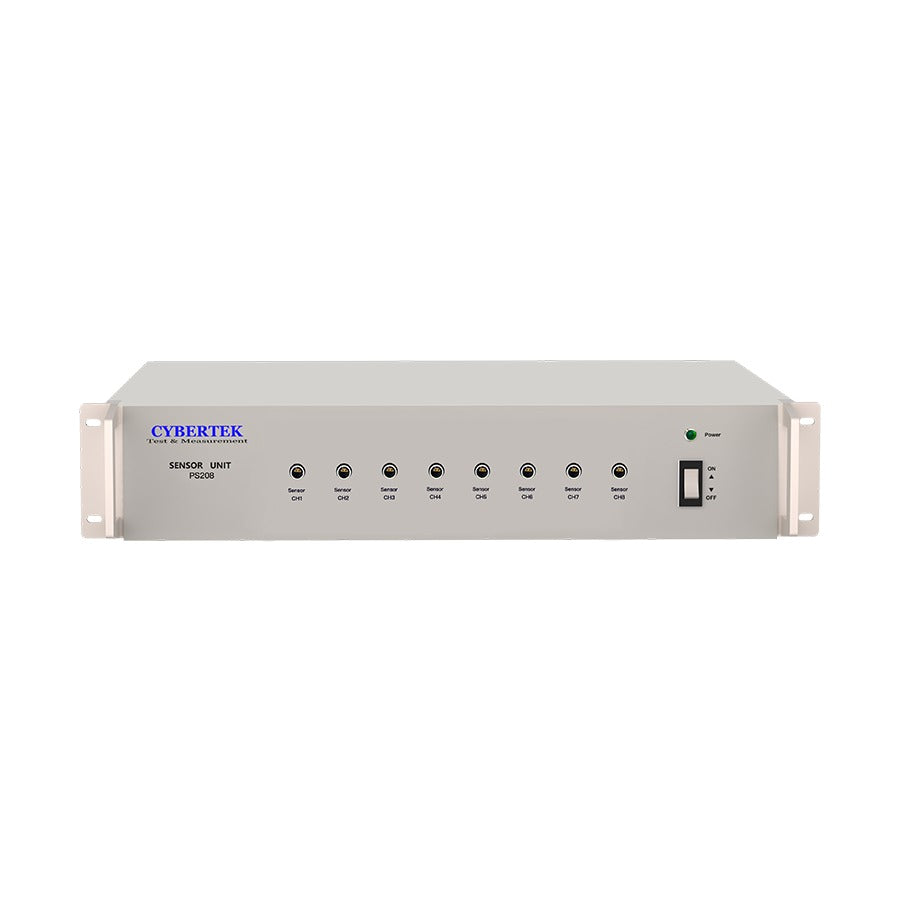

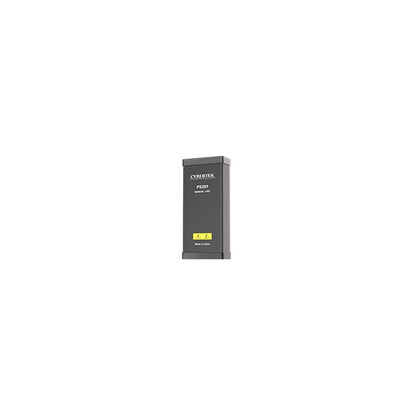

The PS200 series are the matching power supplies for the CTA and CTV series high-accuracy current transducers, providing ±15 V through LEMO connectors. The PS201 has 1 channel (12 V DC input), and the PS202, PS204 and PS208 have 2, 4 and 8 channels (90–264 V AC input).

Each channel supplies up to 1.5 A with overload and overvoltage protection. Optional CK-330 cables (2 m, customizable length) are available.

Models & Specifications

Common Specifications

Specification Value
Output Voltage ±15 V (adjustable 14.25–15.75 V)
Output Current max. 1.5 A per channel
Connector LEMO
Efficiency 80%
Protection Overload 130–160% of rated power; overvoltage 17.25–20.25 V

Model Comparison

Model Channels Input Voltage Max. Output Power
PS201 1 12 V DC 22.5 W
PS202 2 90–264 V AC, 47–63 Hz 45 W
PS204 4 90–264 V AC, 47–63 Hz 90 W
PS208 8 90–264 V AC, 47–63 Hz 180 W

Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
