PMX-Multi 2/3/4ch

  • Three models with 2, 3 and 4 outputs.
  • Each output is isolated.
  • High setting resolution. (Voltage: 1 mV, Current: 0.1 mA)
  • Tracking control in all channels.
  • Simultaneous display of all channel statuses.
  • ON/OFF delay of each output.
  • Simple series/parallel connection between channels. (CH1 & CH2)

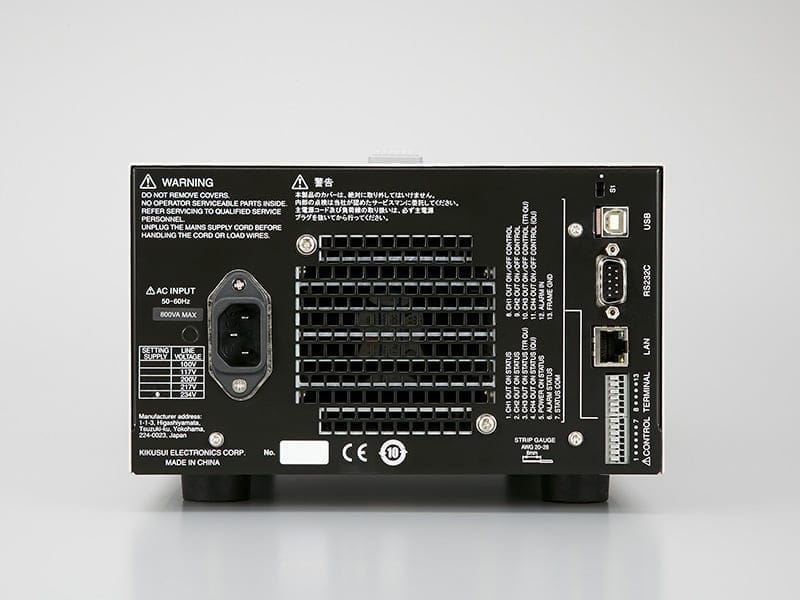

  • LAN (LXI Compliant)/USB/RS232C standard interface.
  • Turning output on and off using an external contact.
  • Remote sensing function.
  • Key lock, Preset memory function. (3 slots)
  • High quality LCD panel for improved visibility.
Model

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

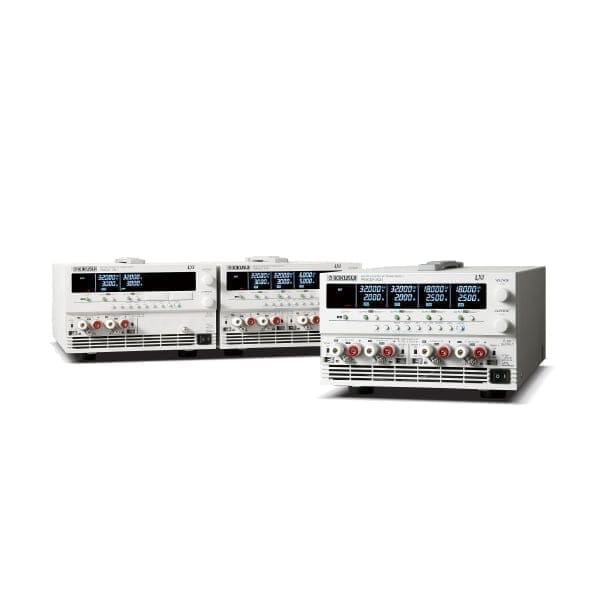

Compact Multi-Output DC Power Supply

PMX-Multi Series

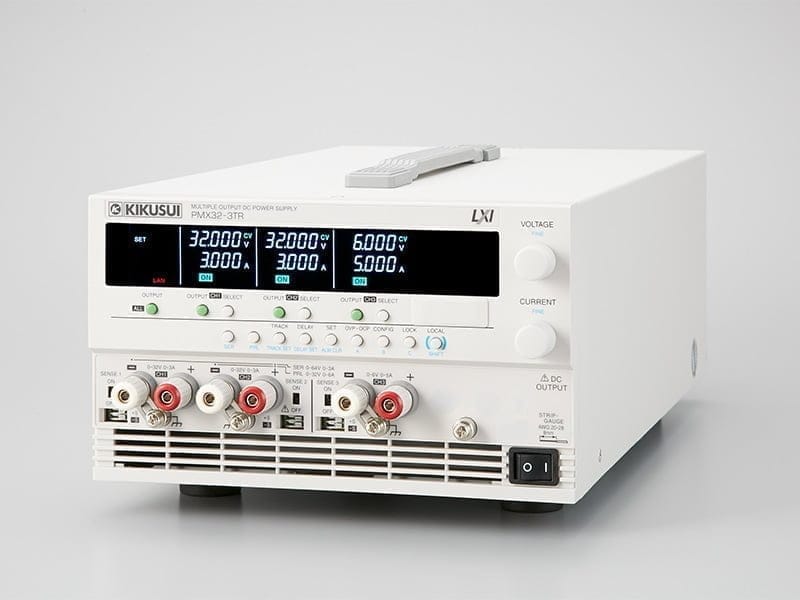

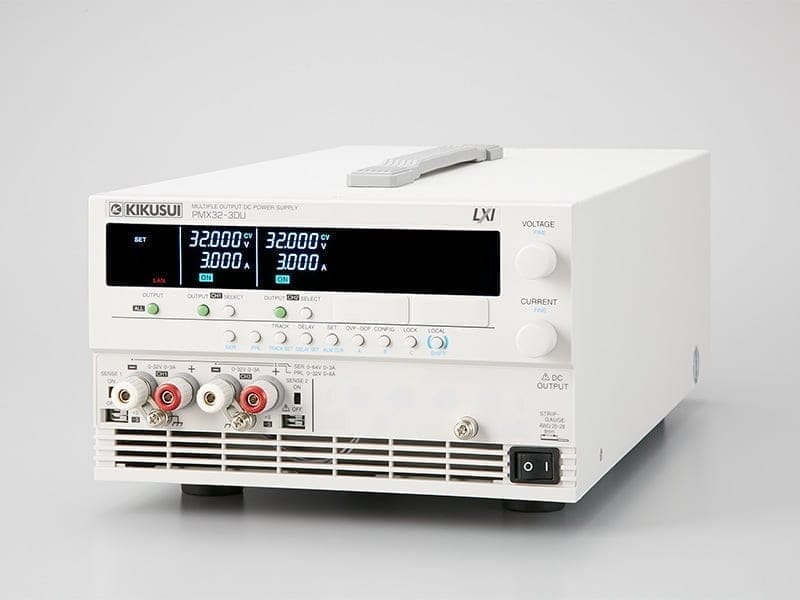

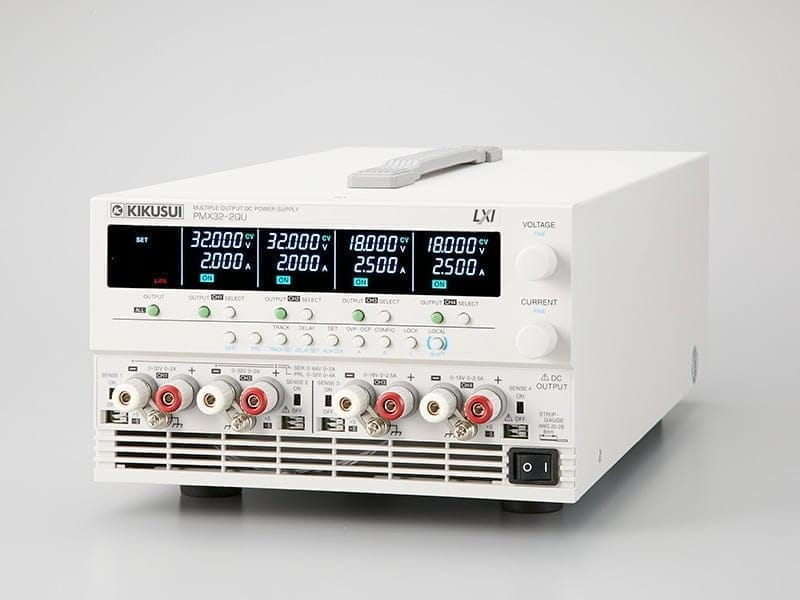

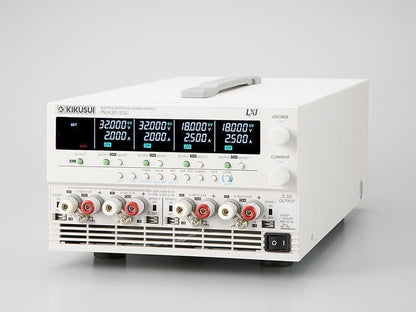

The PMX-Multi series is a multi-channel DC power supply with isolated outputs on each channel. The PMX32-3DU (2ch), PMX32- 3TR (3ch), and PMX32-2QU (4ch) are all capable
of simultaneous output in all channels and come with an output tracking feature.
Also, channels 1 & 2 of each model can be easily connected in either series or parallel to increase the output voltage/current at the press of a button. LAN (LXI Compliant), USB, and RS232C are included as standard digital interfaces for easy system integration.
The PMX-Multi benefits from a low noise, series regulator design that makes this series the perfect choice for experiments involving transistors, IC circuits, and op amp circuits as well as R&D and production line applications.
