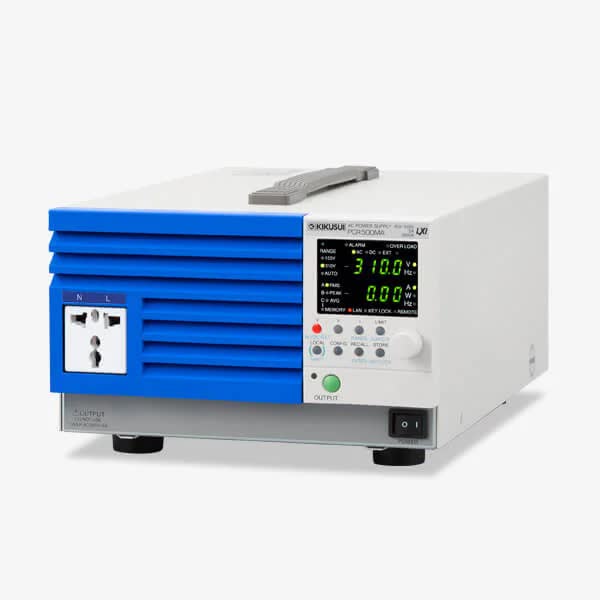

PCR-MA 500VA-4kVA

  • Compact, switching AC power supply (PWM inverter method)
  • Output Capacity: 500 VA, 1,000 VA, 2,000 VA & 4,000 VA (single phase)
  • AC output: 0 V to 155 V/0 V to 310 V at 40 Hz to 500 Hz
  • DC output: ±0 V to 219 V/±0 V to 438 V
  • Peak currents three times the rated current supported (RMS value)
  • LAN and USB standard digital interface (GPIB option)
  • Sensing function
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

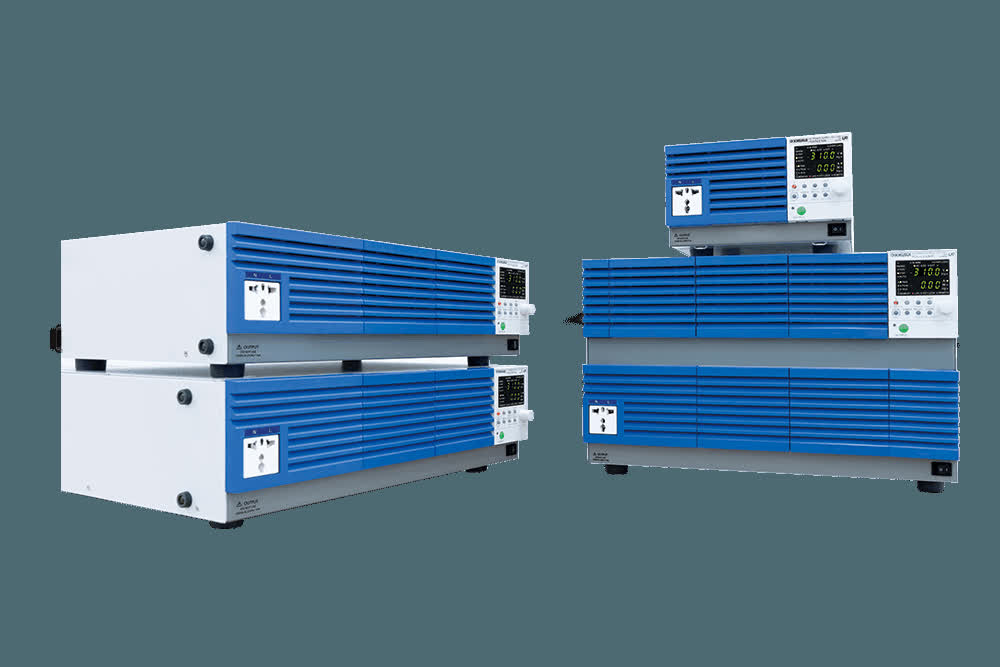

Compact AC Power Supply

PCR-MA Series

The PCR-MA AC power supply series is a PWM inverter type (switching) power supply that builds on the success of our conventional model, the PCR-M. Maximum output voltage has been increased to 310 Vrms AC while maintaining a compact, portable design. The digital interface now includes LAN (LXI) and USB as standard, with GPIB as a option for easy integration into any test system. The LXI compliant LAN interface allows the operator to easily monitor and control the instrument via virtual interface wherever they are.

Various features including a remote sensing function have been introduced to ensure precise voltage and current measurements. Other features including DC mode, memory functions, and various protections make the PCR-MA the most accessible AC power supply on the market.
