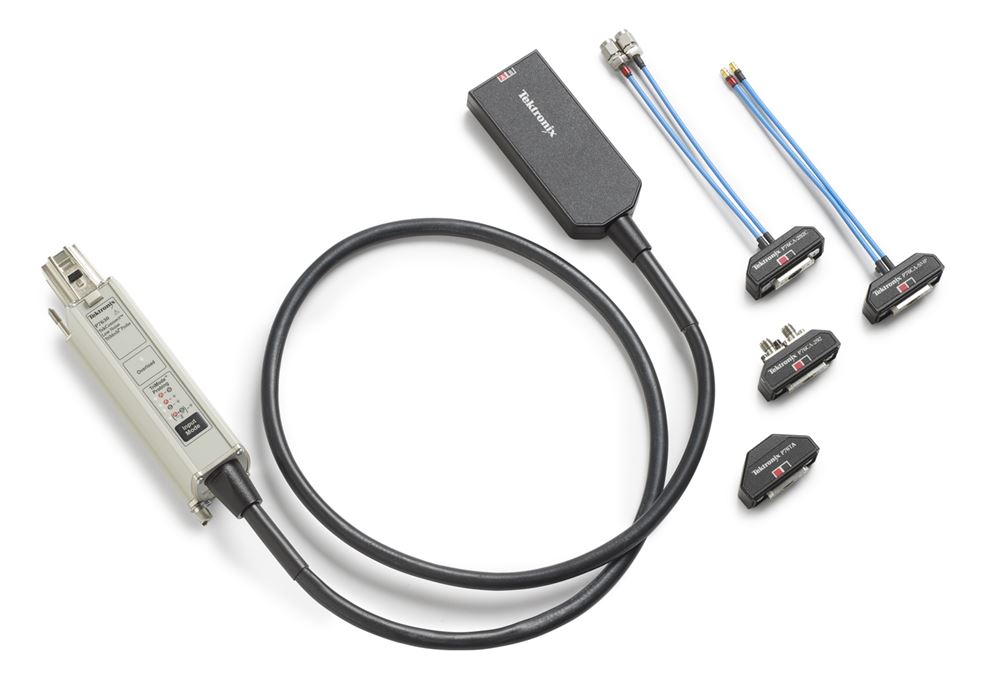

P7633 ±5V 33GHz

The P7600 Series TriMode probes, the MSO/DPO70000DX, DPO/DSA70000D, and the DPO714AX Oscilloscopes are designed to deliver the industry's lowest system noise levels. This high sensitivity is critical for being able to make accurate measurements on low amplitude signals.

Key performance specifications

• Full 33 GHz bandwidth to the probe tip (P7633)
• Industry's lowest probe and oscilloscope system noise

Key features

• TriMode™ probe - one setup, three measurements without adjusting probe tip connections
  • Differential
  • Single ended
  • Common mode
• Remote head design connectivity
  • Allows placement of probe amplifier close to the circuit being measured
  • Coaxial adapters
    • 2.92mm
    • SMP
  • P7500 probe tip adapter
    • Use P7500 Series TriMode solder-in probe tips
  • Probe automatically detects tips and applies DSP correction filters
• Probe-specific S-parameters
  • Unique DSP filters created from data stored in the probe
• TekConnect® Interface - TekConnect scope/probe control and usability
  • Direct control from probe compensation box or from scope menu
