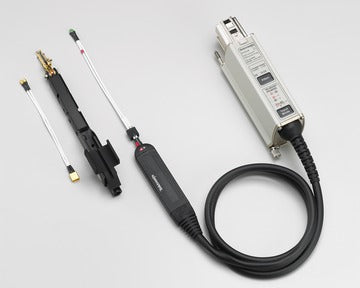

P7513A ±15V >13 GHz

TriMode™ Probe – One setup, three measurements without adjusting probe tip connections

• Differential
• Single ended
• Common mode (Requires only one probe vs. conventional probing techniques)

Signal fidelity

• 25 GHz P7520A (with P75PST tip)
• 20 GHz P7520A
• 16 GHz P7516
• 13 GHz P7513A
• 8 GHz P7508
• 6 GHz P7506
• 4 GHz P7504

Versatile connectivity – solder down, handheld, fixtured

• Variety of solder-down options
  • TriMode™ solder tips
  • Small form factor for high-density probing
  • Bandwidth choices from 4 to 25 GHz
  • 1.5 m extension cable for high-temperature probing
  • Quickly and reliably connect to multiple probe tips
• Precision Differential Probing Module – Optional handheld and fixtured probing
  • Small precision-tapered tips, an articulated joint for compliance, and variable tip spacing

TekConnect™ Interface – TekConnect™ scope/probe control and usability

• Direct control from probe compensation box or from scope menu
• Automated measurement control through the TekConnect™ Interface to connect to Tektronix real-time oscilloscopes
• View TriMode™/attenuation settings on probe compensation box from top or end panel
