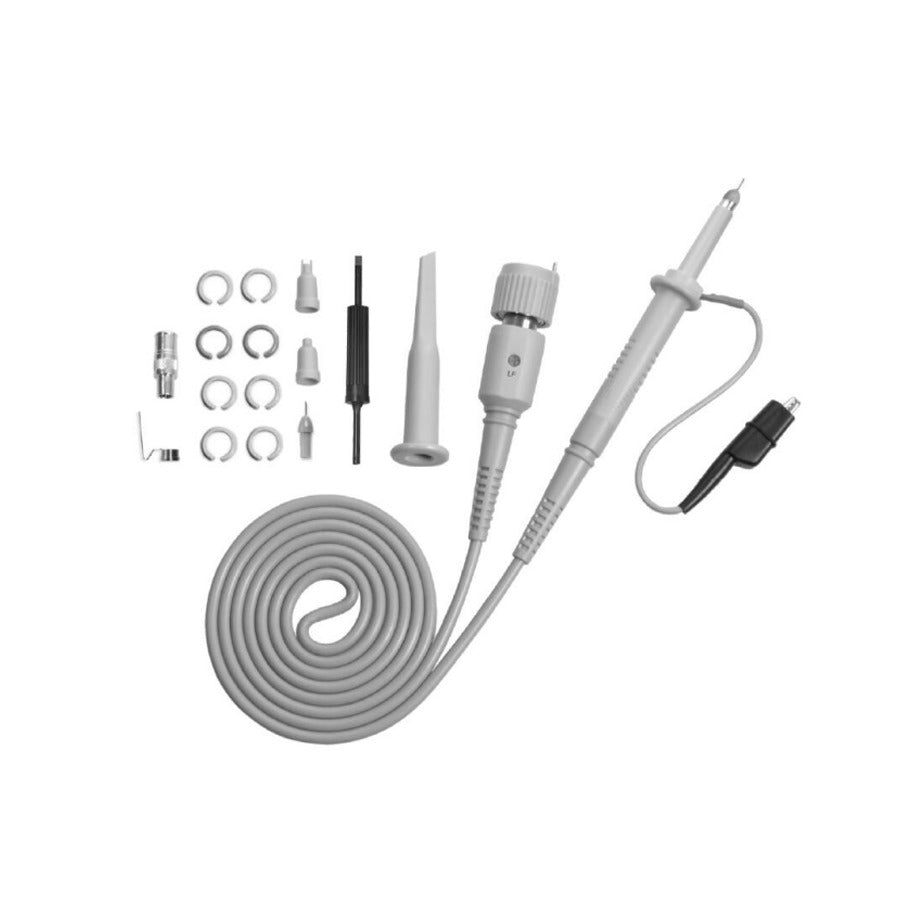

P6501 Passive Oscilloscope Probe 10X, 500 MHz

Key Features

  • DC–500 MHz bandwidth
  • 0.7 ns rise time
  • 10:1 attenuation, 10 MΩ input impedance
  • 500 Vrms CAT I / 400 Vrms CAT II
  • Auto attenuation detection support
  • Accuracy ±2%
Model
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The P6501 is a 10X passive high-impedance oscilloscope probe with DC–500 MHz bandwidth and 0.7 ns rise time, designed and calibrated for oscilloscopes with 1 MΩ / 13 pF inputs. Oscilloscopes that support probe detection set the attenuation automatically.

Models & Specifications

Specification P6501
Attenuation 10:1
Bandwidth DC–500 MHz
Rise Time 0.7 ns
Input Impedance 10 MΩ (with 1 MΩ oscilloscope input)
Max. Input Voltage 500 Vrms CAT I, 400 Vrms CAT II
Accuracy ±2%

Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
