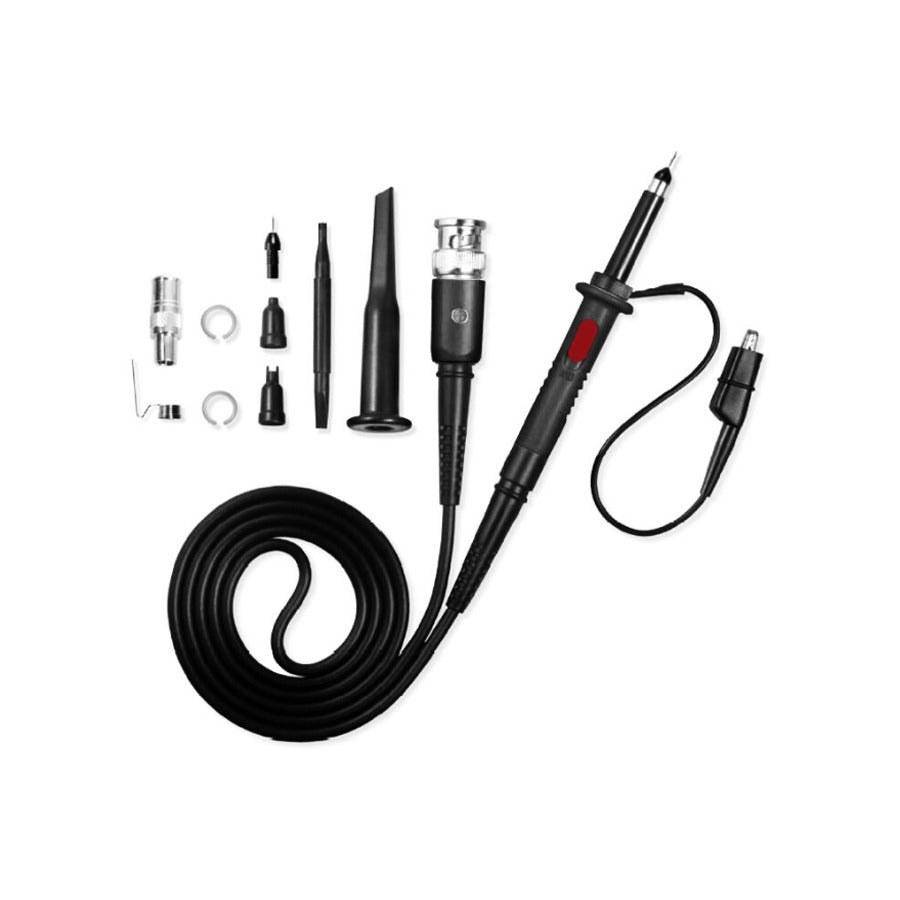

P6251 Passive Oscilloscope Probe 1X/10X, 250 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The P6251 is a general-purpose passive high-impedance oscilloscope probe with a slide switch for 1X or 10X attenuation and DC–250 MHz bandwidth in 10X mode. It is designed and calibrated for oscilloscopes with 1 MΩ input impedance.
Models & Specifications
| Specification | P6251 |
|---|---|
| Attenuation | 10:1 / 1:1 (switchable) |
| Bandwidth | DC–250 MHz (10X) |
| Rise Time | 1.4 ns (10X), 58 ns (1X) |
| Input Impedance | 10 MΩ (10X), 1 MΩ (1X) |
| Max. Input Voltage | 10X: 500 Vrms CAT I, 400 Vrms CAT II; 1X: 150 Vrms CAT I/II |
| Accuracy | ±2% |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
