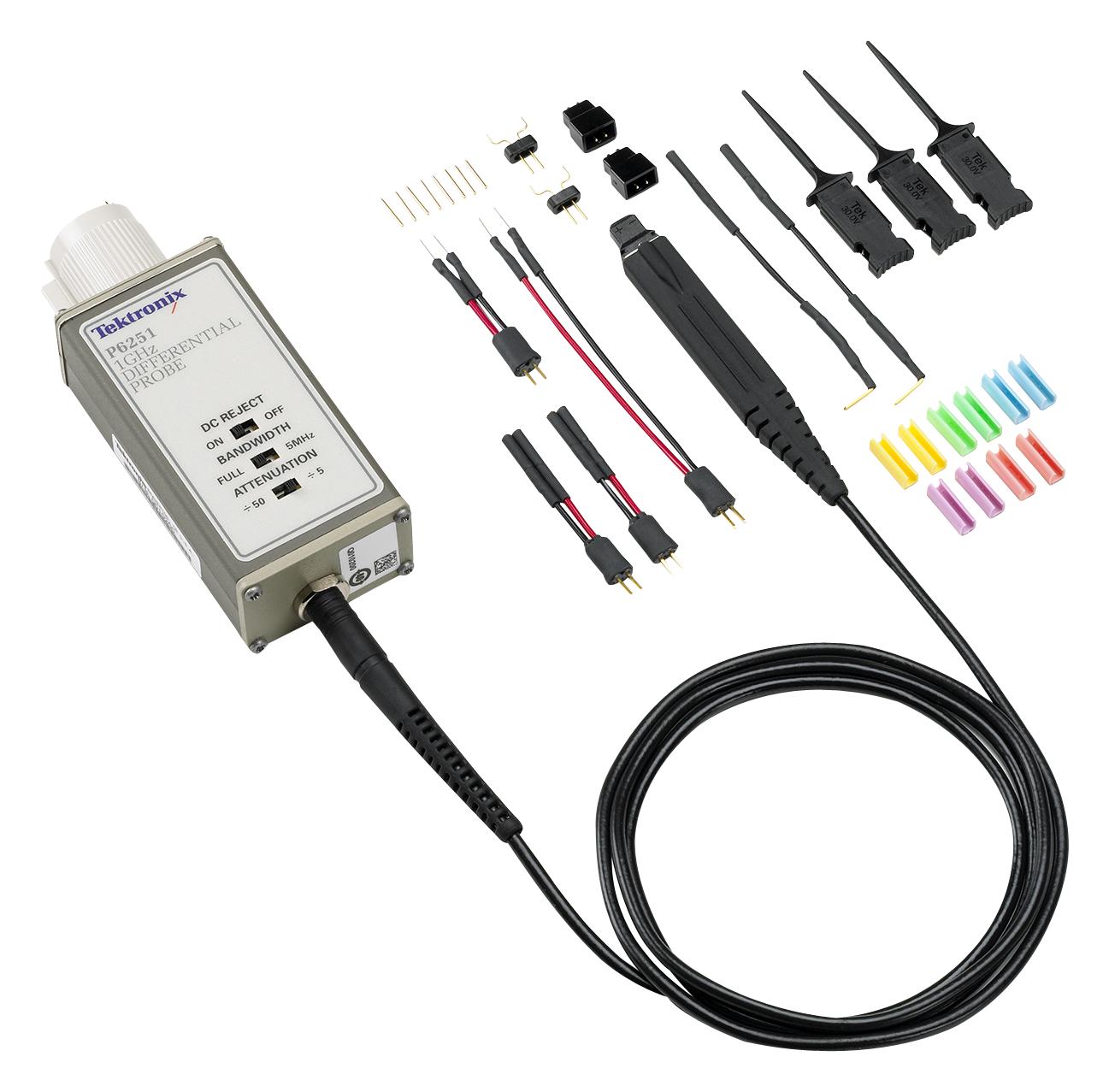

P6251 5X: ±4.2V/ 50X: ±42V 1GHz

Key performance specifications

• 1 GHz and 500 MHz probe bandwidth
• <1 pF differential input capacitance
• 1 MΩ differential input resistance
• ±42 v (DC + pk AC) differential input voltage
  • >18 dB CMRR (at 250 MHz 50X attenuation)

Key features

• Outstanding electrical performance
  • Selectable bandwidth-limiting filters
  • DC reject
• Versatile DUT connectivity
  • Small compact probe head for probing small geometry circuit elements
  • Straight pin, square pin, solder down, variable pitch standard accessories
  • Robust design for reliability
• Easy to use
• Provides automatic units scaling and readout on the oscilloscope display
• P6251
  • Connect directly to the TekProbe™ interface oscilloscopes, or to TekConnect® oscilloscopes using TCA-BNC adapter
