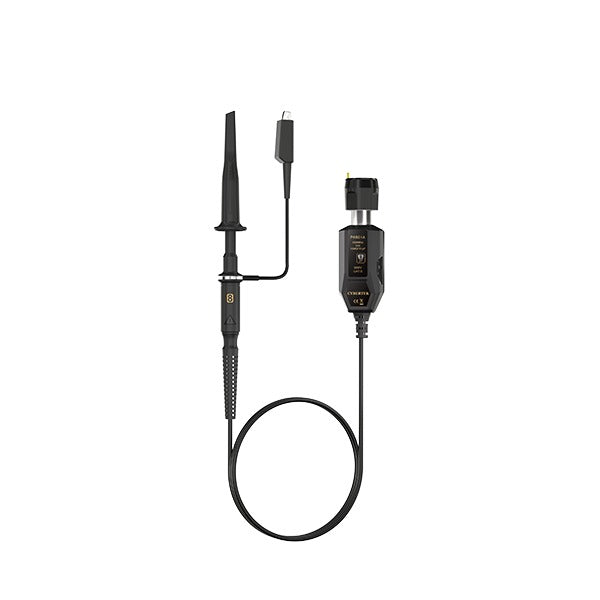

P6000A(B) Series Smart Passive Voltage Probe 300 V, up to 500 MHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The P6000A(B) series are smart 10:1 passive voltage probes with 300 MHz or 500 MHz bandwidth for oscilloscopes with 1 MΩ inputs (8–23.5 pF). Instead of square-wave calibration and a trimming tool, the input capacitance is matched with a dial in 0.5 pF steps.
A rotating channel ring replaces coloured identification bands. The A versions are black and the B versions grey.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Max. Input Voltage | 300 V CAT II |
| Attenuation | 10:1 |
| Input Capacitance | 11 pF ±0.5 pF |
| Compensation Range | 8–23.5 pF (0.5 pF steps), no square-wave calibration needed |
Model Comparison
| Model | Bandwidth | Colour |
|---|---|---|

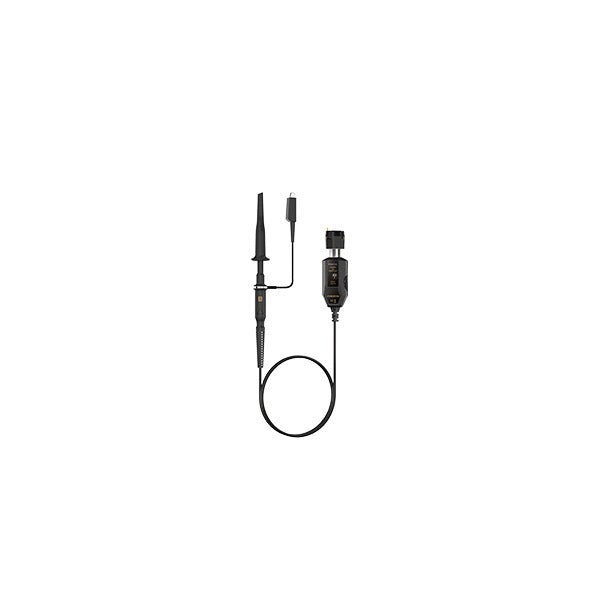

| P6501A | 500 MHz | Black |
| P6301A | 300 MHz | Black |

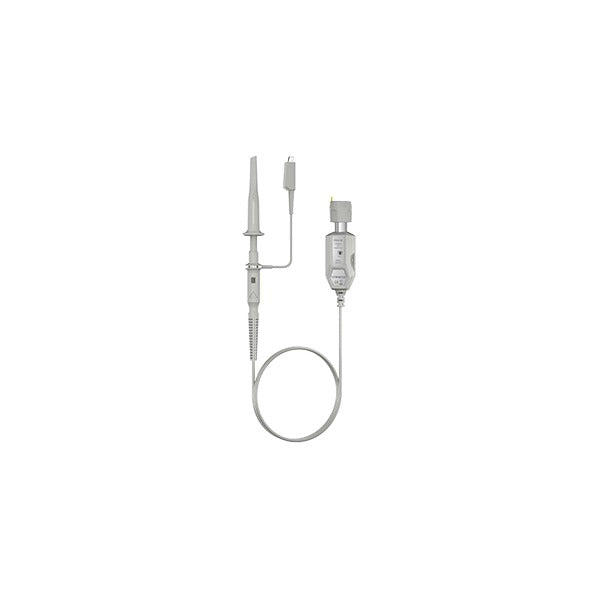

| P6501B | 500 MHz | Grey |
| P6301B | 300 MHz | Grey |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
