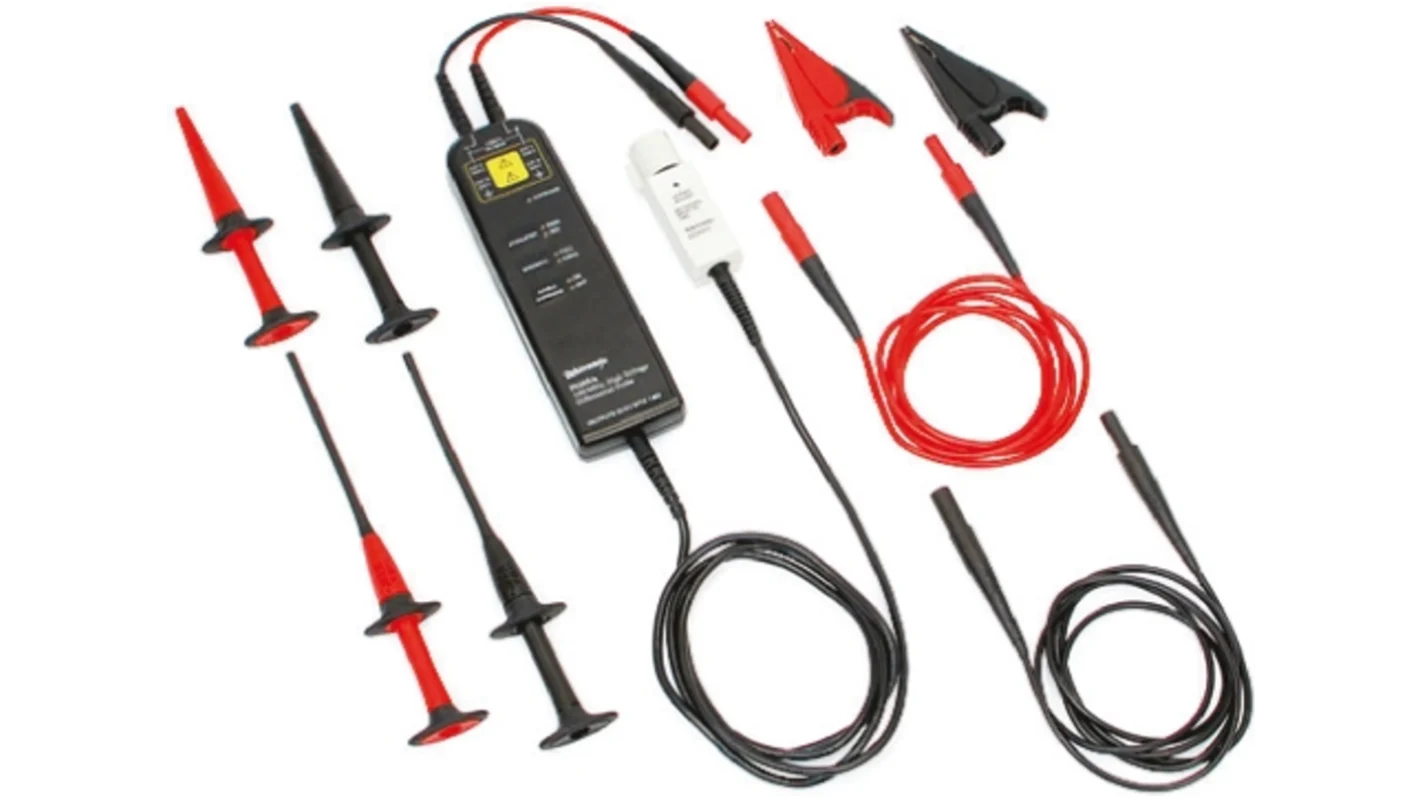

P5205A 50X: ±130V/ 500X: ±1300V 100MHz

The THDP0200 and P5205A are active differential probes that are capable of safely measuring differential voltages up to ±1500 V. The probes are effective in making measurements in IGBT circuits such as motor drives and power converters. The THDP0200 supports bandwidths up to 200 MHz and slew rates up to 275 V/ns at 1/250 gain.

Key performance specifications

• Bandwidths up to 200 MHz
• Up to 6000 V differential (DC + pk AC)
• Up to 2300 V common (RMS)

Key features

• Overrange Indicator
• Safety Certified
• Switchable Attenuation
• Switchable bandwidth limit
