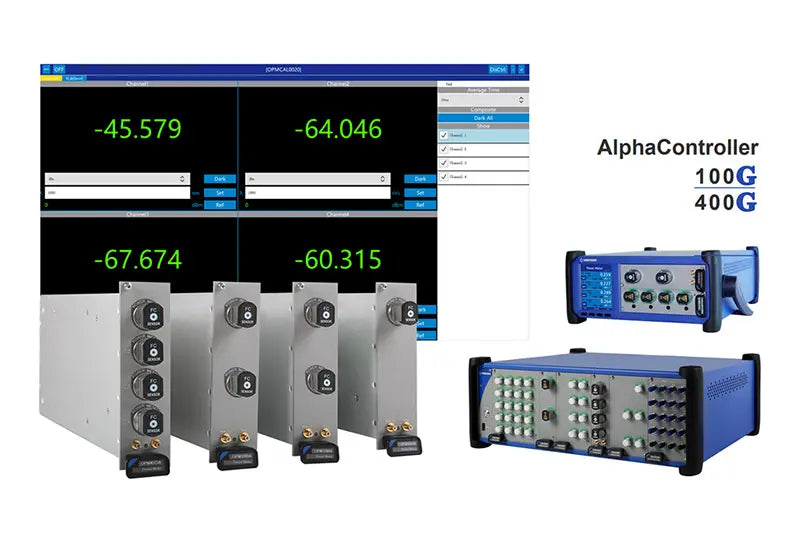

OPM Optical Power Meter Module
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The Dimension-Labs OPM Optical Power Meter series consists of 5 types of modules: Conventional, High Speed, High Power, High Sensitivity, and External Probe, all of which are compatible with Dimension-Labs ALPHA and OMEGA universal optical test platforms. The platform-based test solutions provide fast, accurate and flexible power measurements, including detection of weak signals and small signal variations as well as accurate measurements of ultra-high optical power.
For ease of use and maximum flexibility, Dimension-Labs Optical Power Meter modules are supplied with a wide range of interchangeable detector adapter fittings, (available for a variety of connector types, see attached table at the back of the product datasheet for details), as well as fiber grippers that allow bare fiber measurements. Connection (FC) detector adapters are included as standard accessories.
The Dimension-Labs OPM Optical Power Meter Module is not a stand-alone device and is integrated into the ALPHA/OMEGA chassis.
Platform + Modular Design
All OPM Optical Power Meter functional modules are compatible with ALPHA, OMEGA universal optical test platform, through programming control, can work with other functional test modules, can realize one-stop automatic test solution.
Models & Specifications
High Performance Series
| Model | DL-OPM-850-1650-10dBm-1ch | DL-OPM-850-1650-10dBm-2ch | DL-OPM-850-1650-10dBm-4ch |
|---|---|---|---|
| Wavelength Range (nm) | 850~1650 | ||
| Number of Channels | 1 | 2 | 4 |
| Detector | InGaAs | ||
| Detector Size (mm) | 2 | ||
| Optical Power Detection Range (dBm) | +10~-75 | ||
| Polarization-dependent Response (dB) | ±0.01 (0dBm~-50dBm) | ||
| Maximum Safe Optical Power (dBm) | 13 | ||
| Linearity (dB) | ±0.05 (+5dBm~-50dBm) | ||
| Uncertainty | ± (5%+500pW) | ||
| Power Resolution (dB) | 0.001 | ||
| Wavelength Resolution (nm) | 0.1 | ||
| Average Time | 10 us~1s | ||
| Return Loss (dB) | >55 | ||
| Trigger Input | Yes | ||
| Analog Signal Output | Yes | ||
| Optical Fiber Types | SM/MM | ||
High Speed Series
| Model | DL-OPM-850-1650-10dBm-1ch-HV | DL-OPM-850-1650-10dBm-2ch-HV | DL-OPM-850-1650-10dBm-4ch-HV | DL-OPM-850-1650-10dBm-4ch-200k-HV |
|---|---|---|---|---|
| Wavelength Range (nm) | 850~1650 | |||
| Number of Channels | 1 | 2 | 4 | 4 |
| Detector | InGaAs | |||
| Detector Size (mm) | 2 | |||
| Optical Power Detection Range (dBm) | +10~-75 | +10~-75 | +10~-75 | |
| Max. Detectable Power | 10dBm | |||
| Polarization-dependent Response (dB) | ±0.01 (0dBm~-50dBm) | |||
| Maximum Safe Optical Power (dBm) | 13 | |||
| Linearity (dB) | ±0.05 (+5dBm~-50dBm) | |||
| Uncertainty | ± (5%+500pW) | |||
| Power Resolution (dB) | 0.001 | |||
| Wavelength Resolution (nm) | 0.1 | |||
| Average Time | 10 us~1s | |||
| Return Loss (dB) | >55 | |||
| Storage Depth | 10 million points per channel | |||
| Trigger Input | Yes | |||
| Analog Signal Output | Yes | |||
| Optical Fiber Types | SM/MM | |||
| Sampling Rate (kHz) | 10 (max) | 10 (max) | 10 (max) | 200 (max) |
High Power Series
| Model | DL-OPM-850-1650-26dBm-1ch-HP |
|---|---|
| Wavelength Range (nm) | 850~1650 |
| Number of Channels | 1 |
| Detector | InGaAs |
| Detector Size (mm) | 2 |
| Optical Power Detection Range (dBm) | +26~-50 |
| Polarization-dependent Response (dB) | ±0.01 (0dBm~-50dBm) |
| Maximum Safe Optical Power (dBm) | 30 |
| Linearity (dB) | ±0.05 (+15dBm~-30dBm) |
| Uncertainty | ± (5%+500pW) |
| Power Resolution (dB) | 0.001 |
| Wavelength Resolution (nm) | 0.1 |
| Average Time | 10 us~1s |
| Return Loss (dB) | >55 |
| Trigger Input | Yes |
| Analog Signal Output | Yes |
| Optical Fiber Types | SM/MM |
Cost-effective Series
| Model | DL-OPM-850-1650-6dBm-4ch |
|---|---|
| Wavelength Range (nm) | 850~1650 |
| Number of Channels | 4 |
| Detector | InGaAs |
| Detector Size (mm) | 1 |
| Optical Power Detection Range (dBm) | +6~-75 |
| Max. Detectable Power | 6dBm |
| Maximum Safe Optical Power (dBm) | 13 |
| Power Resolution (dB) | 0.001 |
| Wavelength Resolution (nm) | 0.1 |
| Average Time | 10 us~1s |
| Return Loss (dB) | >55 |
| Optical Fiber Types | SM/MM |
Connector
| Model | DL-OPM-FC |
|---|---|
| Interface Description | OPM Detector FC Connection |
