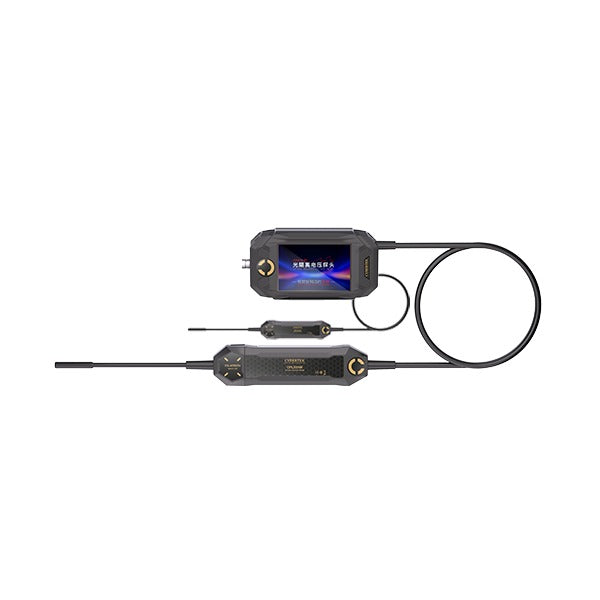

OPLX6000 Series Laser-Powered Optically Isolated Probe with Display, 60 kV Isolation, up to 1 GHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The OPLX6000 series is a full upgrade of the laser-powered OPL series optically isolated probes. It adds a display that shows all key parameters, dual-range attenuator switching for a wider measurement range, more attenuator options that reach down to ±0.1 V, internal temperature monitoring for a wider operating temperature range, and laser current-limit protection.
Laser power over fiber allows continuous operation with 60 kV isolation, bandwidth up to 1 GHz, and the very high CMRR, stability and low drift of the OPL series.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Input Voltage Range (with attenuators) | ±0.1 V to ±5000 V |
| Isolation Voltage | 60 kV |
| Accuracy | ≤ ±1% |
Model Comparison
| Model | Bandwidth |
|---|---|

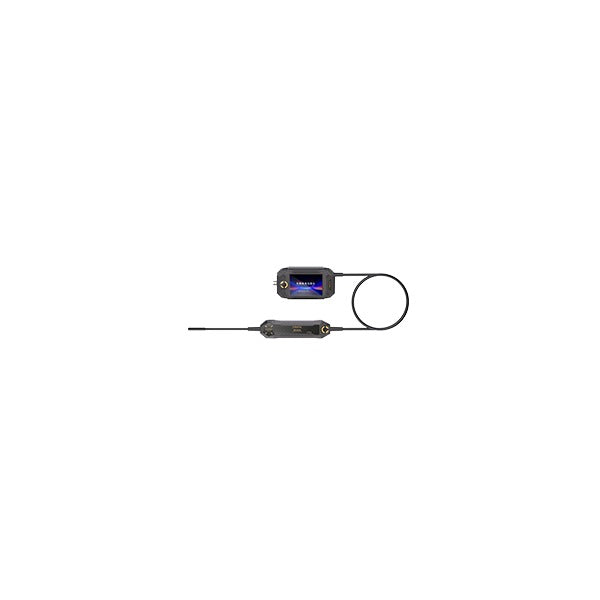

| OPLX6015 | DC–150 MHz |
| OPLX6025 | DC–250 MHz |
| OPLX6035 | DC–350 MHz |
| OPLX6050 | DC–500 MHz |
| OPLX6080 | DC–800 MHz |
| OPLX6100 | DC–1 GHz |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
