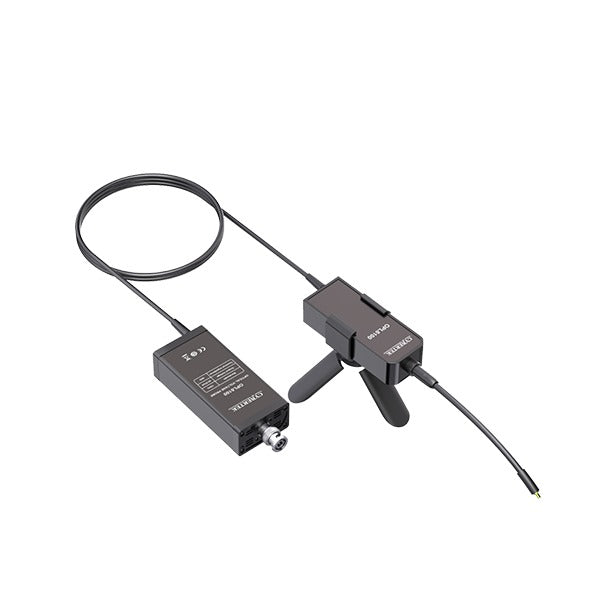

OPL6000 Series Laser-Powered Optically Isolated Voltage Probe, 60 kV Isolation, up to 1 GHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The OPL6000 series laser-powered optically isolated voltage probes achieve remarkably high CMRR across their whole bandwidth. Conventional differential probes lose CMRR quickly at high frequency; optical isolation keeps the probe head fully floating so high-side and switch-node waveforms in fast SiC and GaN circuits can be measured accurately.
Laser power over fiber gives continuous operation with 60 kV isolation and bandwidths from 150 MHz to 1 GHz, with interchangeable MMCX attenuators from ±2.5 V to ±5000 V.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Input Voltage Range (with attenuators) | ±2.5 V to ±5000 V |
| Isolation Voltage | 60 kV |
| Accuracy | ±1% |
Model Comparison
| Model | Bandwidth |
|---|---|

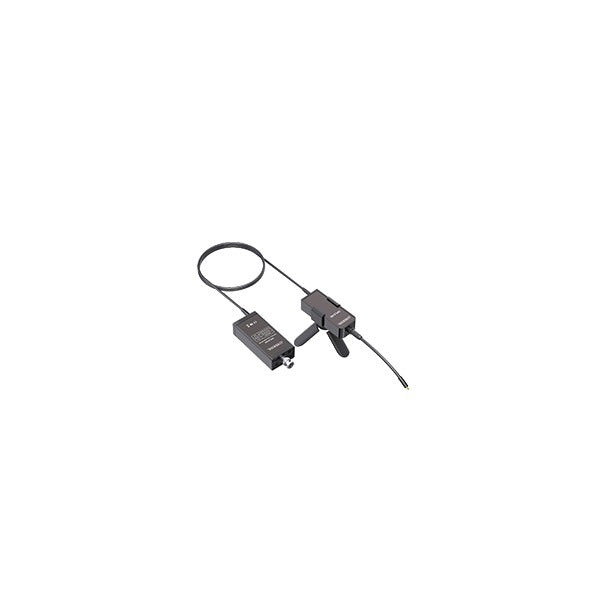

| OPL6015 | DC–150 MHz |
| OPL6025 | DC–250 MHz |
| OPL6035 | DC–350 MHz |
| OPL6050 | DC–500 MHz |
| OPL6080 | DC–800 MHz |
| OPL6100 | DC–1 GHz |
Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
