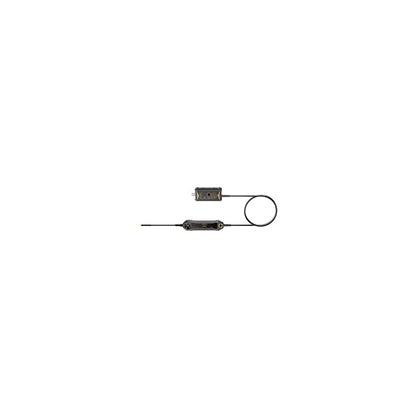

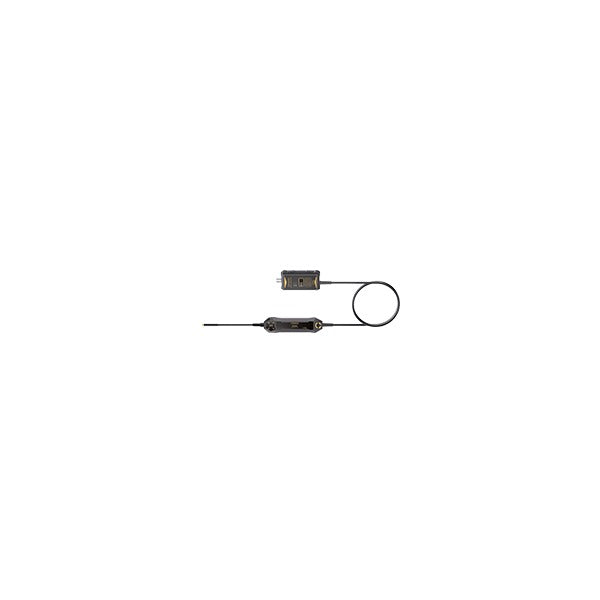

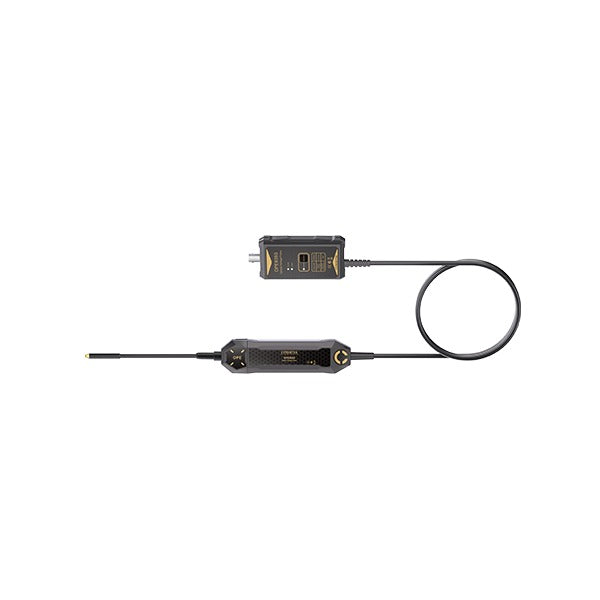

OPE6000 Series Optically Isolated Voltage Probe, 5 kV Isolation, up to 1 GHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The OPE6000 series optically isolated voltage probes bring the optical-isolation performance of the OPL6000 series to a lower cost, using a new isolated power-supply technology instead of laser power. With 5 kV isolation they cover most power-semiconductor test scenarios while keeping very high common-mode rejection, high stability and low temperature drift.
Bandwidths range from 150 MHz to 1 GHz, the probe runs continuously, and online calibration and zeroing work without disconnecting from the device under test. Typical uses include switching power supplies, motor drives, new-energy inverters, frequency converters and lighting power supplies.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Input Voltage Range (with attenuators) | ±2.5 V to ±2500 V |
| Isolation Voltage | ±5 kV |
| Accuracy | ≤ ±1% |
Model Comparison
| Model | Bandwidth |
|---|---|
| OPE6015 | DC–150 MHz |
| OPE6025 | DC–250 MHz |
| OPE6035 | DC–350 MHz |
| OPE6050 | DC–500 MHz |
| OPE6080 | DC–800 MHz |
| OPE6100 | DC–1 GHz |
Specifications from the official Cybertek datasheet (Chinese); use the Download Datasheet button for full details.
