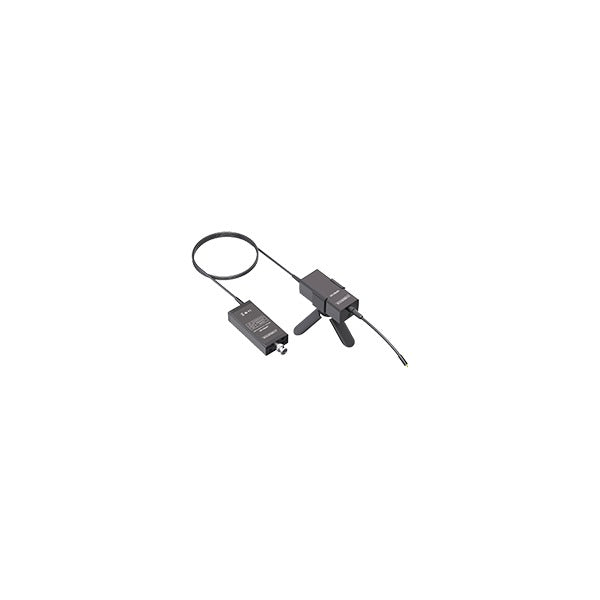

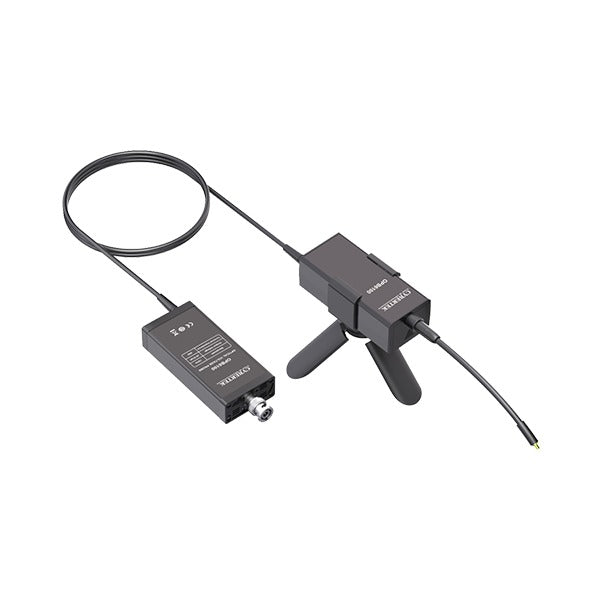

OPB6000 Series Battery-Powered Optically Isolated Voltage Probe, 60 kV Isolation, up to 1 GHz
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.
The OPB6000 series are battery-powered optically isolated voltage probes with remarkably high CMRR across the whole bandwidth. Optical isolation keeps the probe head fully floating for accurate high-side and switch-node measurements in fast SiC and GaN power circuits.
Battery operation (about 8 hours) with 60 kV isolation and bandwidths from 150 MHz to 1 GHz, plus interchangeable MMCX attenuators from ±2.5 V to ±5000 V.
Models & Specifications
Common Specifications
| Specification | Value |
|---|---|
| Input Voltage Range (with attenuators) | ±2.5 V to ±5000 V |
| Isolation Voltage | 60 kV |
| Accuracy | ±1% |
| Battery Operating Time | approx. 8 h |
Model Comparison
| Model | Bandwidth |
|---|---|
| OPB6015 | DC–150 MHz |
| OPB6025 | DC–250 MHz |
| OPB6035 | DC–350 MHz |
| OPB6050 | DC–500 MHz |
| OPB6080 | DC–800 MHz |
| OPB6100 | DC–1 GHz |
Specifications from the official Cybertek datasheet (English); use the Download Datasheet button for full details.
