ODP6050B ±5000 Vpk 500MHz
Key Features
Interested in this product?
Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

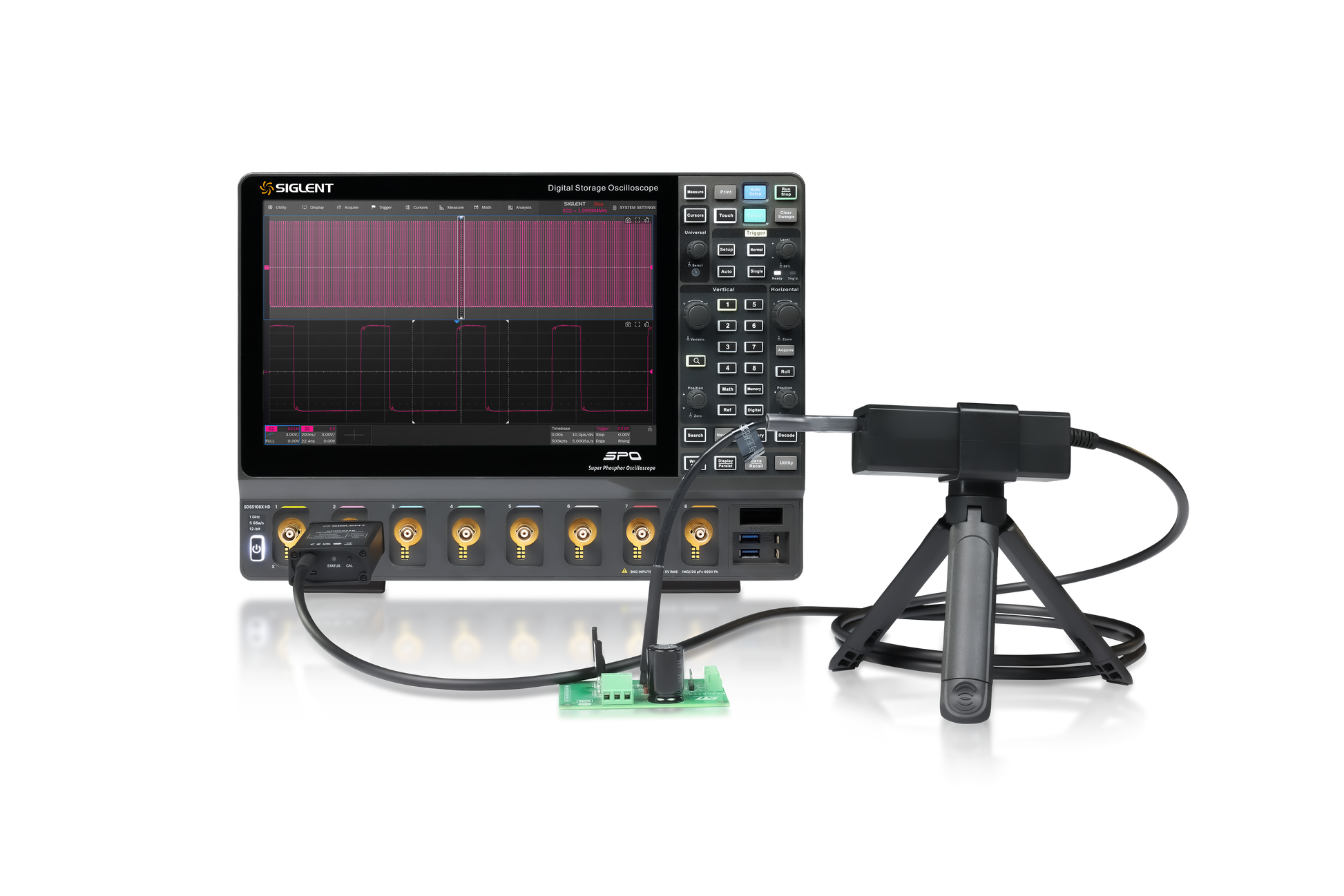

The ODP6050B is a 500 MHz optically isolated voltage probe for high-CMRR measurements on floating or high-common-mode circuits. Optical isolation (up to ±60 kV class isolation on the ODP6000B series) keeps the oscilloscope ground separate from the DUT while preserving wideband fidelity into a 50 Ω load.
Attenuator tips cover low- and high-voltage ranges (including high-ratio tips for kilovolt-class peak measurements). Power is supplied by a DC 5 V adapter or a 7.4 V battery pack for portable use.
- Bandwidth (−3 dB): 500 MHz; rise time ≤ 0.7 ns
- CMRR typ. 160 dB (DC–10 MHz); terminal load 50 Ω
- Measurement range depends on attenuator (store listing: up to ±5000 Vpk with high-ratio tip)
- Suitable for power electronics, motor drives, and high-side switching analysis
