N to N Coaxial Adapter

In-series N coaxial adapter, 50 Ω
Frequency range DC to 18 GHz
VSWR 1.15 to 1.35 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female

Model N-JJS (N M / N M) N-JKS (N M / N F) N-KKS (N F / N F) N-JWJS (N M / N M) N-JWK (N M / N F) N-KWKS (N F / N F) N-KYK (N F / N F) N-KFK (N F / N F) N-KFK2 (N F / N F)

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

The N to N coaxial adapter series from Talent Microwave provides a precision 50 Ω transition between two N interfaces for test and measurement, VNA calibration, satellite communication and radar applications, covering DC to 18 GHz.

Key Features

In-series N coaxial adapter, 50 Ω
Frequency range DC to 18 GHz
VSWR 1.15 to 1.35 (model dependent)
Available gender combinations: Male–Male, Male–Female, Female–Female
Body styles: Straight, Right-angle, Bulkhead, Flange / Panel
Individual datasheet available for every model

Model Options

Model	Interface 1	Interface 2	Frequency	VSWR (max)	Body Style	Datasheet

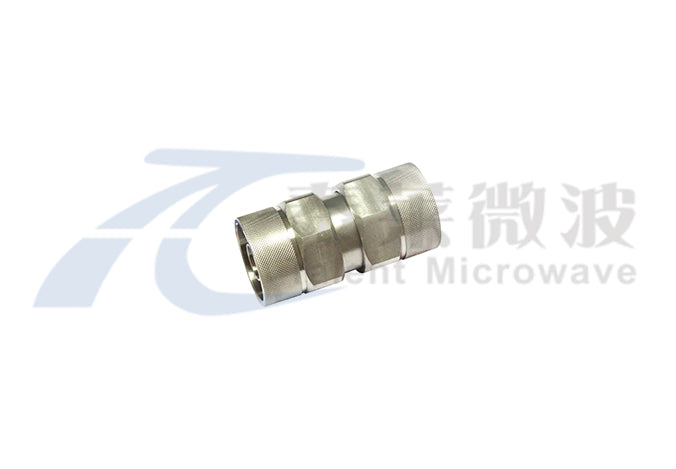

N-JJS	N Male	N Male	DC–18 GHz	1.15	Straight	PDF

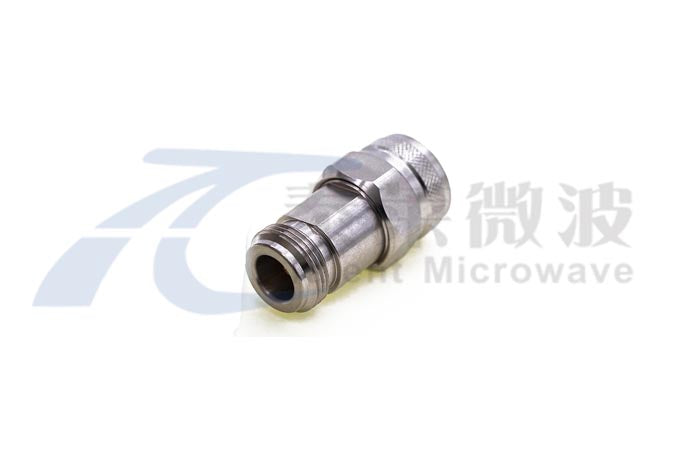

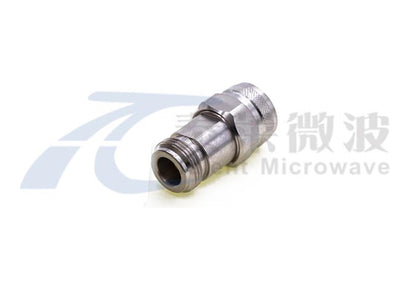

N-JKS	N Male	N Female	DC–18 GHz	1.15	Straight	PDF

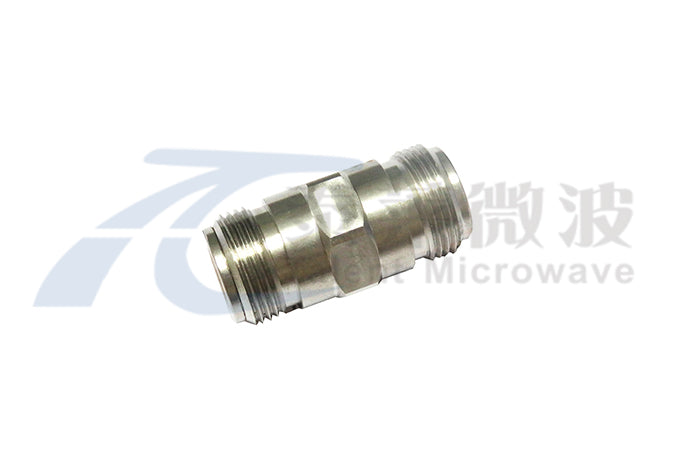

N-KKS	N Female	N Female	DC–18 GHz	1.15	Straight	PDF
N-JWJS	N Male	N Male	DC–18 GHz	1.25	Right Angle	PDF
N-JWK	N Male	N Female	DC–18 GHz	1.35	Right Angle	PDF
N-KWKS	N Female	N Female	DC–18 GHz	1.25	Right Angle	PDF

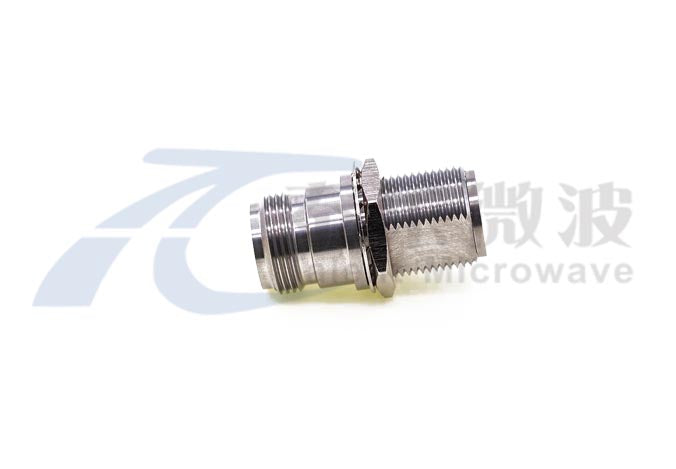

N-KYK	N Female	N Female	DC–18 GHz	1.15	Bulkhead	PDF

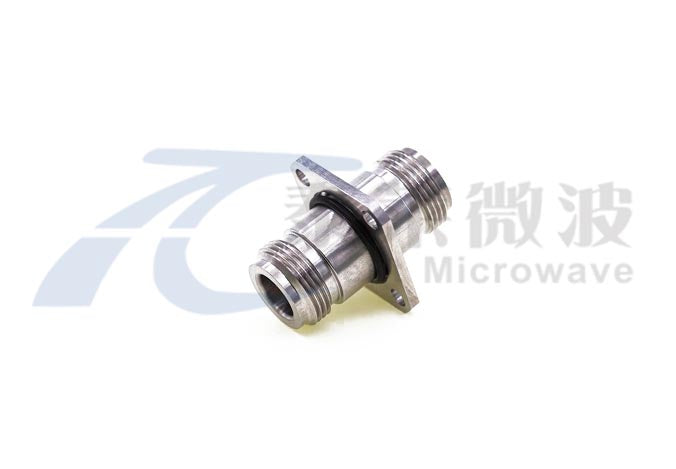

N-KFK	N Female	N Female	DC–18 GHz	1.15	4 Hole Panel Mount	PDF
N-KFK2	N Female	N Female	DC–18 GHz	1.15	4 Hole Panel Mount	PDF
