MSO2

Name: MSO2
Brand: Tektronix
SKU: MSO22 2-BW-70
Price: 15800.0 HKD
Availability: InStock

From $15,800.00

Key Features

Analog input channels
2 or 4 inputs

Bandwidth
70 MHz, 100 MHz, 200 MHz, 350 MHz, 500 MHz

Sample rate
2.5 GS/s half channels
1.25 GS/s all channels

Waveform capture rate
>4,000,000 wfms/s

Record length
10 M points per channel

Vertical resolution
8 bits ADC
Up to 16 bits in high-resolution mode

Standard trigger types
Edge, pulse width, runt, timeout, logic, setup & hold, rise/fall time,
and parallel bus

Bandwidth

70MHz 100MHz 200MHz 350MHz 500MHz

Channels

2 4

$15,800.00

Download datasheet

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

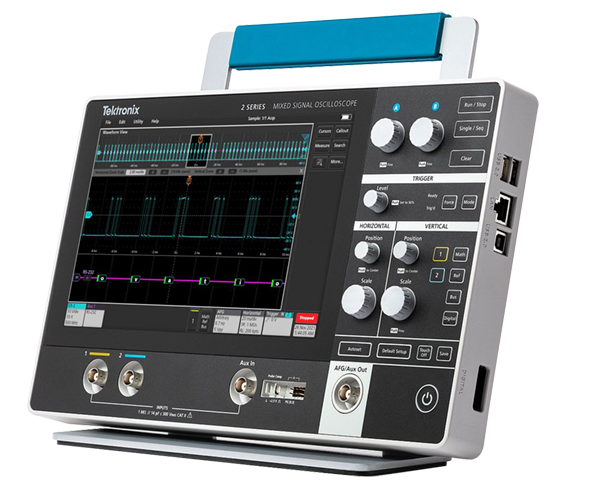

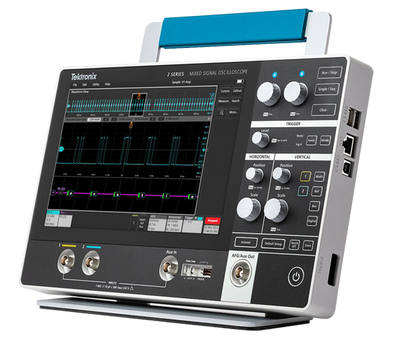

The 2 Series MSO is a portable mixed-signal oscilloscope that packs FlexChannel-style analog/digital capability into a battery-capable, thin benchtop/field chassis. It targets embedded debug, education, and on-site service where channel count, touch UI, and protocol tools matter more than ultra-high bandwidth.

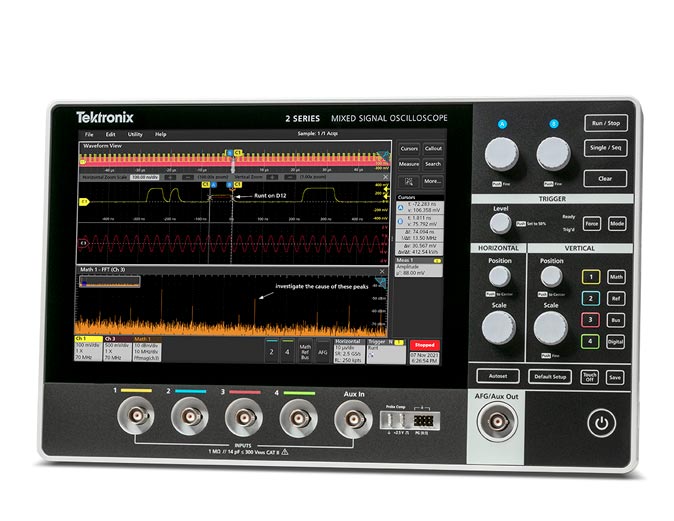

Models offer up to 4 analog channels with bandwidth options typically from 70 MHz to 500 MHz class, multi-GS/s sampling, and optional digital channels for mixed-signal visibility. The capacitive touch interface follows the modern TekScope workflow, with optional AFG, DVM, and serial bus decode packages for common embedded protocols.

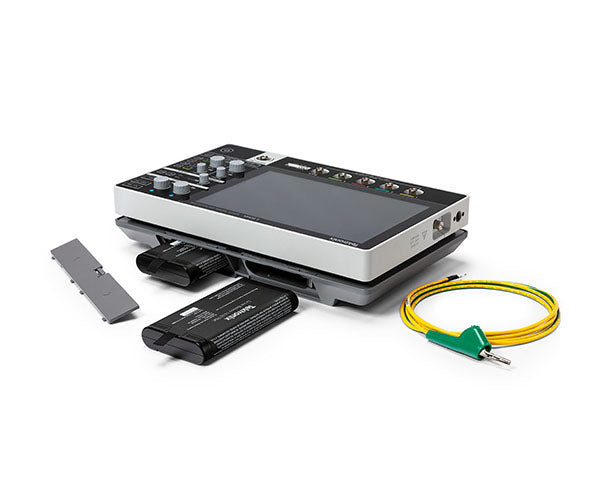

USB and LAN connectivity support remote control and PC analysis. The compact form factor and optional battery operation help when moving between the bench and the lab floor or classroom.
