Product Introduction

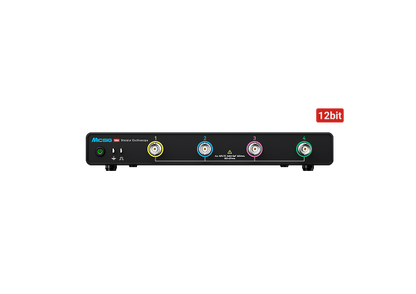

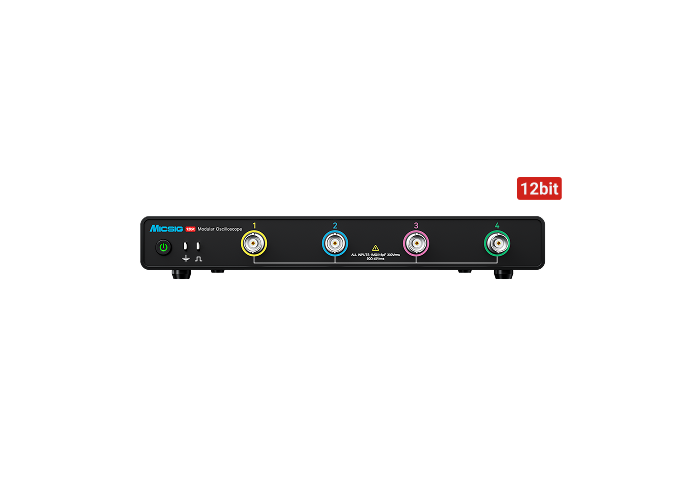

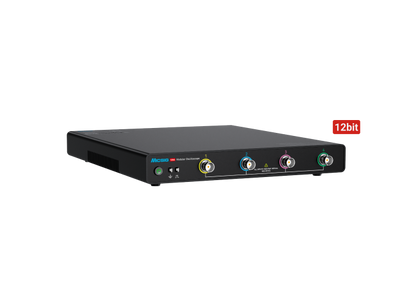

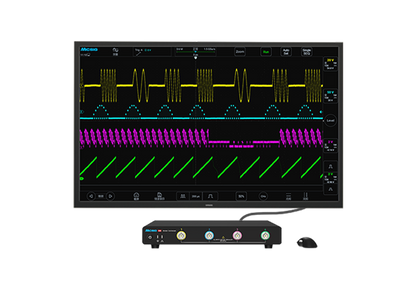

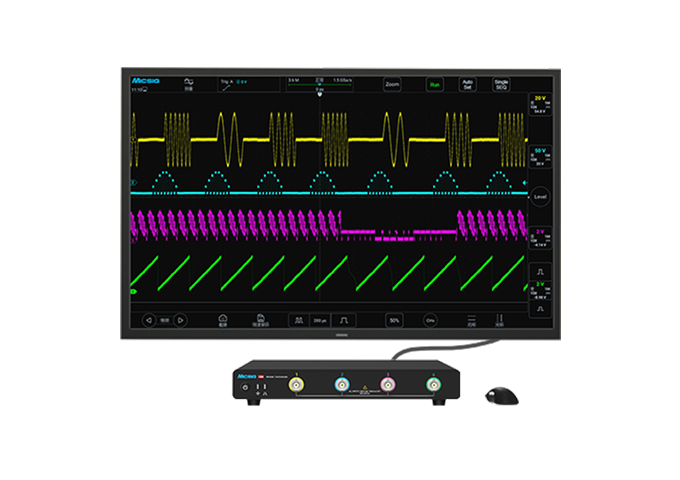

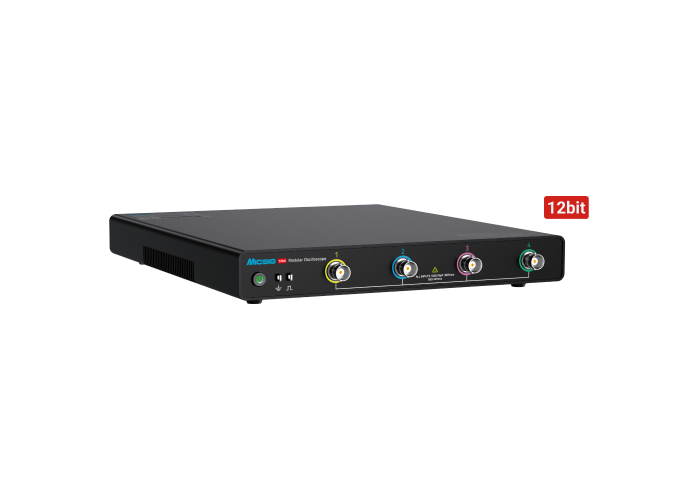

Micsig MO3 series high-resolution modular oscilloscope is only 3 cm high, making it the ultimate space-saving solution for desktops and test racks. The MO3 series features a 12-bit precision ADC, offering 500 MHz analog bandwidth, 3 GSa/s real-time sampling rate, 360 Mpts, and 4 analog channels; Supports HDMI direct connection for seamless access to large screens, with no software installation required. Users can control the oscilloscope using a mouse for simple and intuitive operation. Supports oscilloscope cascading with up to 16 channels, effectively reducing the cost of using multi-channel oscilloscopes. Supports PC-based oscilloscope remote control, SCPI protocol, secondary development, and high-speed data streaming, making it the top choice for test system integration. HDMI Direct Connection Display Users do not need to install any software.
Specifications
| Model | MO34-500 | MO34-350 | MO34-250 | MO34-500Pro | MO34-350Pro | MO34-250Pro |
| Bandwidth | 500MHz | 350MHz | 250MHz | 500MHz | 350MHz | 250MHz |
| Rise Time | ≤0.7ns | ≤1ns | ≤1.4ns | ≤0.7ns | ≤1ns | ≤1.4ns |
| Analog Channels | 4 | 4 | 4 | 4 | 4 | 4 |
| Real-time Sampling Rate | 3GSa/s | 3GSa/s | 3GSa/s | 3GSa/s | 3GSa/s | 3GSa/s |
| Memory Depth | 360Mpts | 360Mpts | ||||
| Configuration | Basic Software | Software used for system integration | ||||
| Vertical Resolution | 12bit | |||||
| Max.waveform Capture Rate | 230,000wfms/s | |||||
| Input Impedance | 50Ω / 1MΩ | |||||
| Power Supply | DC 24V | |||||
| Dimensions | 224.5*30*264.3mm（Width*Height*Depth） | |||||
